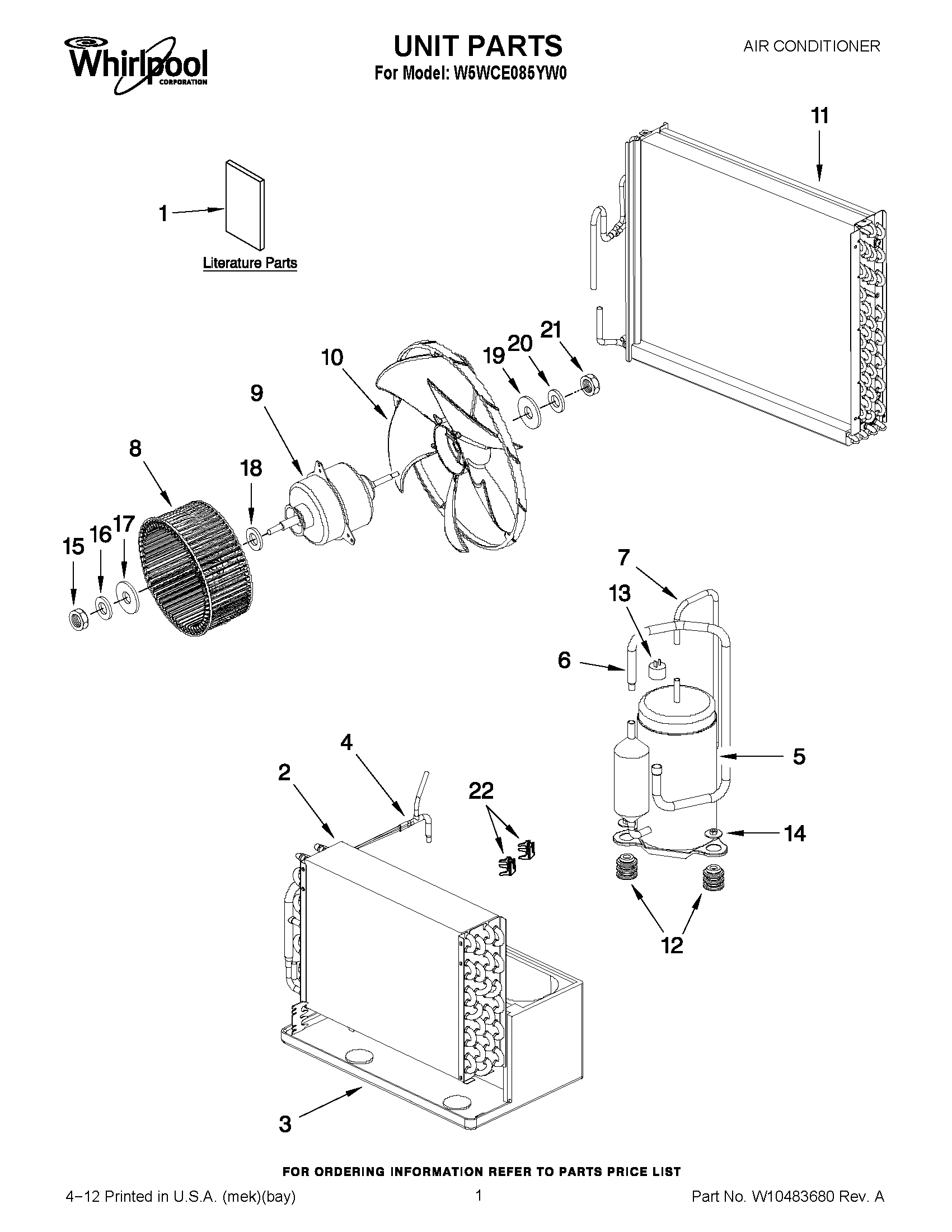

W5WCE085YW0 01 – UNIT PARTS
Written by
in
W5WCE085YW0 01 – UNIT PARTS
Products
Position
Product
NI
CABINET (NOT A SERVICEABLE PART)
1
ENERGY GUIDE
1
USE & CARE GUIDE
1
WIRING DIAGRAM
2
EVAPORATOR
3
PAN DRIP
4
TUBE-RESTR
5
WPW10362226 Whirlpool Compressor
6
TUBE-INLET
7
DISCHARGE TUBE
8
WHEEL BLOWER
9
MOTOR-FAN
10
W10361428 Whirlpool Fan Blade
11
W10388578 Whirlpool Condenser
12
GASKET
13
OVERLOAD
14
NUT
15
NUT
16
WASHER
17
WASHER
18
WASHER
19
WASHER
20
WASHER
21
Nut W/Washer
22
Support, Tube Sensor
←
