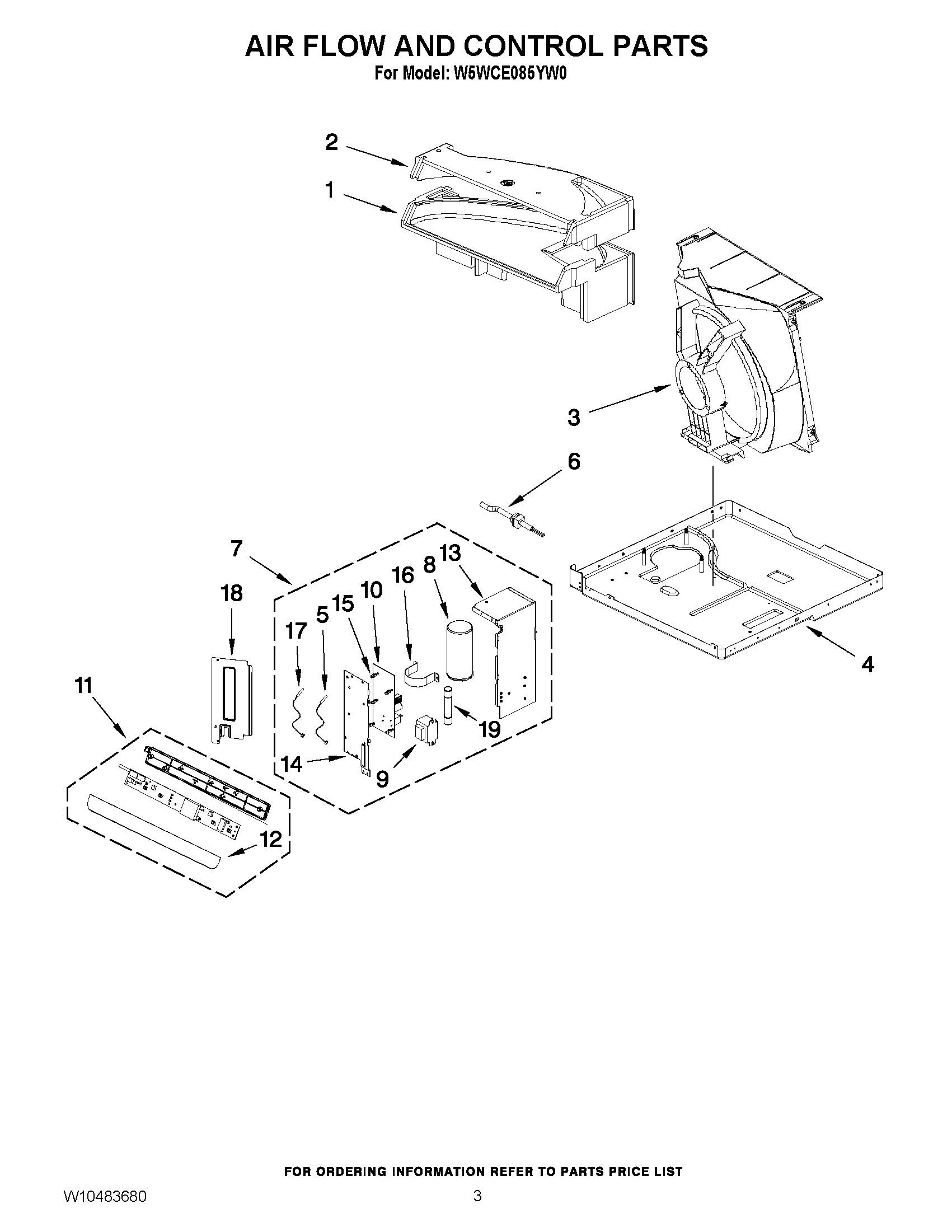

W5WCE085YW0 02 – AIR FLOW AND CONTROL PARTS

Products

PositionProduct
1SCROLL
2HOUSING
3REAR CLAPBOARD
4BASE
5Thermistor
6W10369612 Whirlpool Air Conditioner Power Cord
7W10362235 Whirlpool Control Box
8CAPACITOR
9WP8215051 Whirlpool Air Conditioner Transformer
10WPW10362790 Whirlpool Air Conditioner Electronic Control Board
11WPW10362223 Whirlpool Air Conditioner Electronic Control Board
12MEMBRANE
13ELECT BOX SIDE
14ELECT BOX SIDE
15SPACER
16Bracket, Capacitor
17AMB TEMP SENSOR
18ELECT BOX COVER
19W10487251 Whirlpool Dishwasher Fuse
