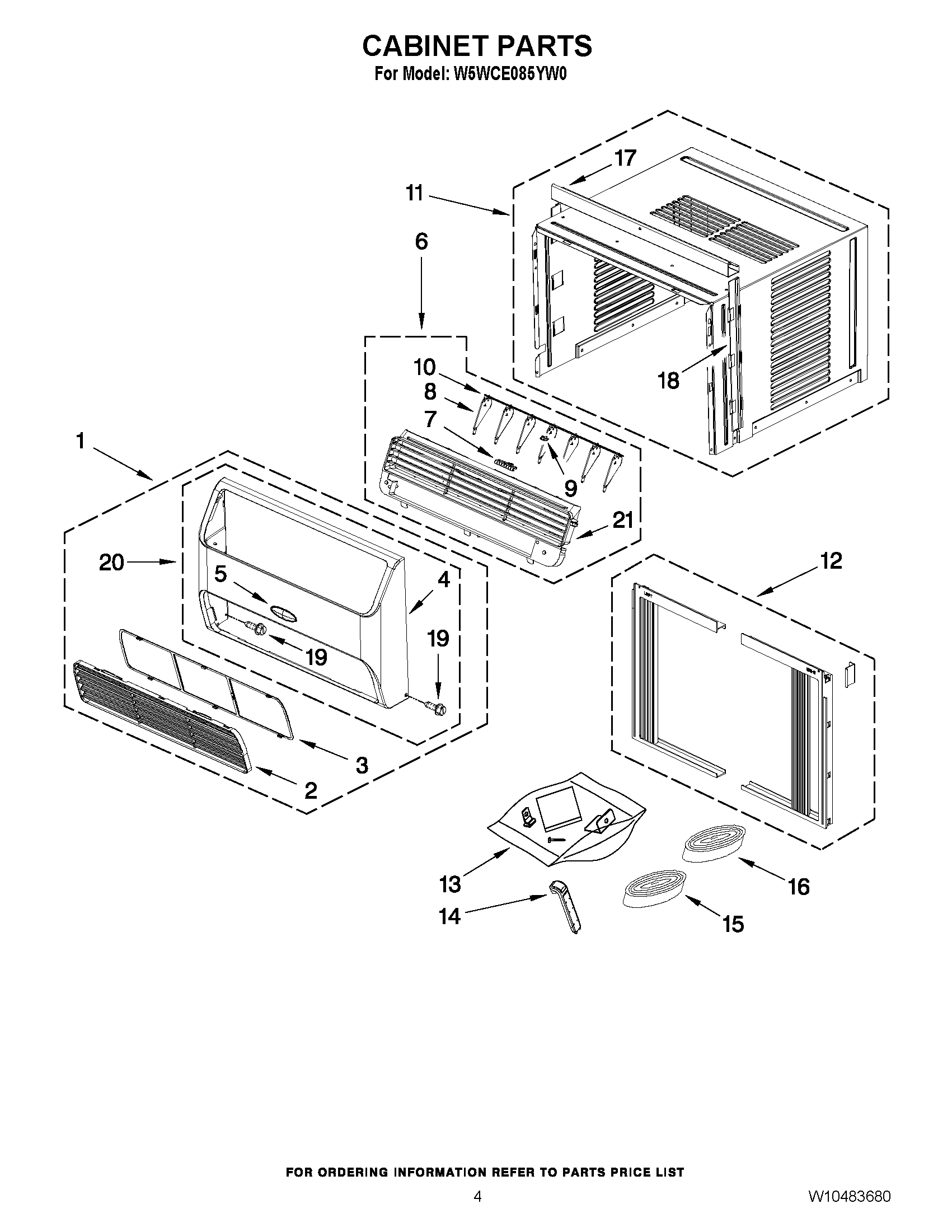

W5WCE085YW0 03 – CABINET PARTS

Written by

Products

Position	Product
1	FRONT PNL ASSY
2	AIR INLET FRAME
3	FILTER ASSY
5	MANUAL LEVER
6	AIR OUTLET FR ASSY
7	MANUAL LEVER
8	AIR LOUVER 2
9	AIR LOUVER 1
10	SWING LEVER
11	CABINET ASSY
12	FIXING FRAME ASSY
13	MTG ACCESSORIES
14	REMOTE CONTROLLER
15	SEAL
16	SEAL
17	TOP GUIDE
18	W10361848 Whirlpool Curtain Assembly
19	SCREW
20	PANEL ASSY
21	AIR OUTLET FRAME
