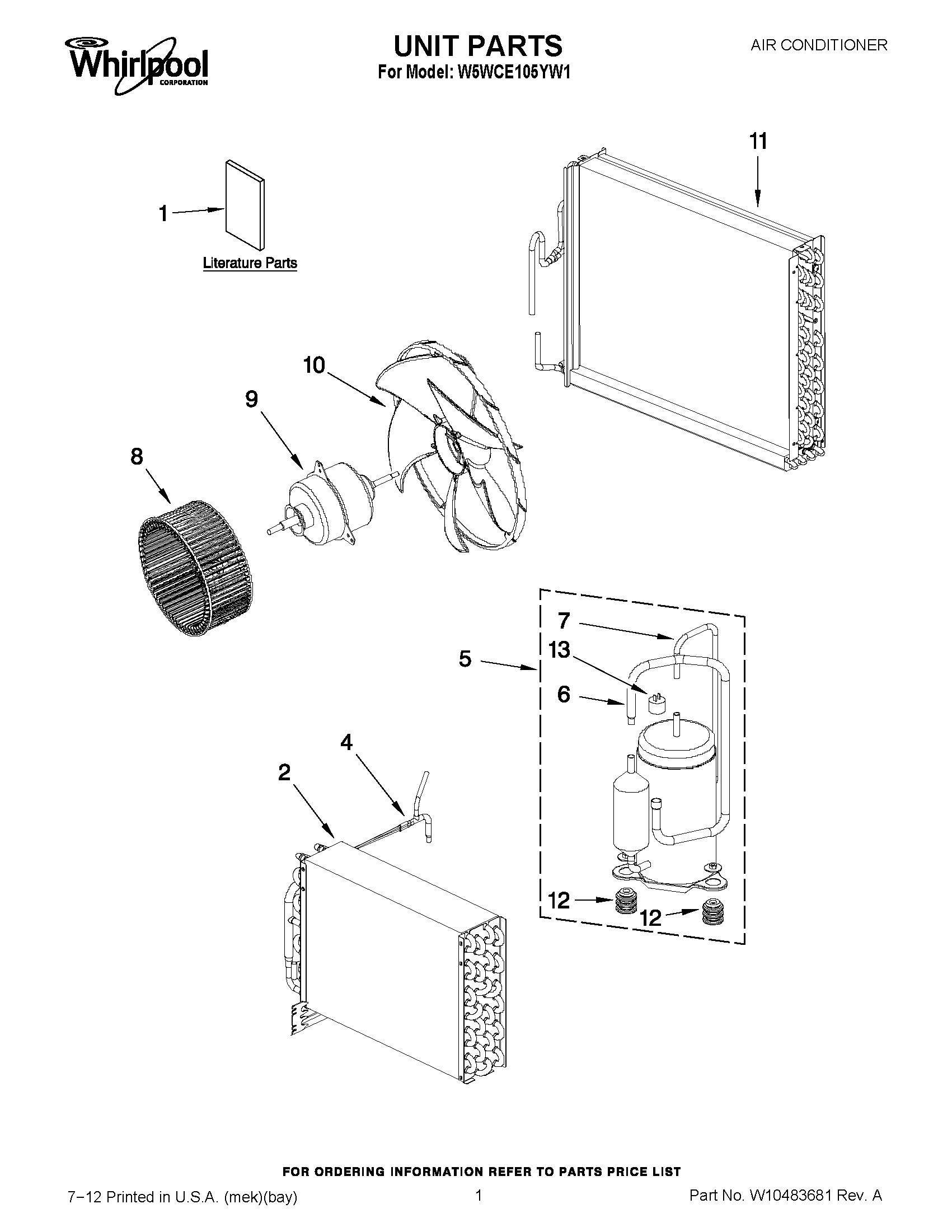

W5WCE105YW1 01 – UNIT PARTS

Written by

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
1	ENERGY GUIDE
1	USE & CARE GUIDE
1	WIRING DIAGRAM
2	W10362768 Whirlpool Evaporator
4	W10484823 Whirlpool Restriction Tube
5	COMPRESSOR
6	TUBE-INLET
7	TUBE-DSCHG
8	WHEEL, BLOWER
9	WPW10362806 Whirlpool Air Conditioner Fan Motor
10	WPW10362784 Whirlpool Air Conditioner Fan Blade
11	WPW10362766 Whirlpool Condenser
12	GROMMET
13	OVERLOAD
