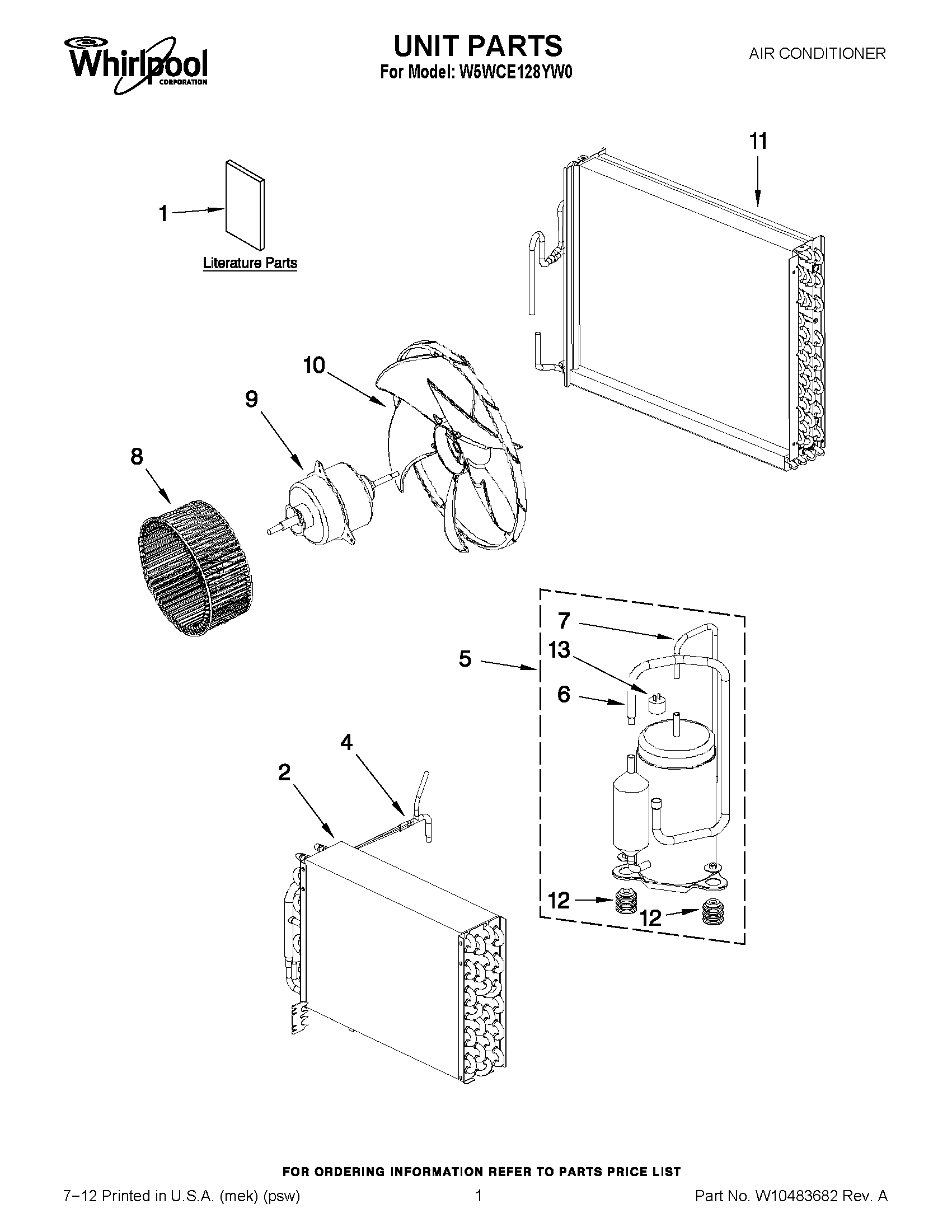

W5WCE128YW0 01 – UNIT PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
1USE & CARE GUIDE
1WIRING DIAGRAM
1ENERGY GUIDE
2W10362768 Whirlpool Evaporator
4TUBE-RESTR
5WPW10362800 Whirlpool Air Conditioner Compressor
6TUBE-INLET
7DISCHARGE TUBE
8WHEEL, BLOWER
9WPW10362806 Whirlpool Air Conditioner Fan Motor
10W10484833 Whirlpool Air Conditioner Fan Blade
11WPW10362766 Whirlpool Condenser
12GASKET
13OVERLOAD
