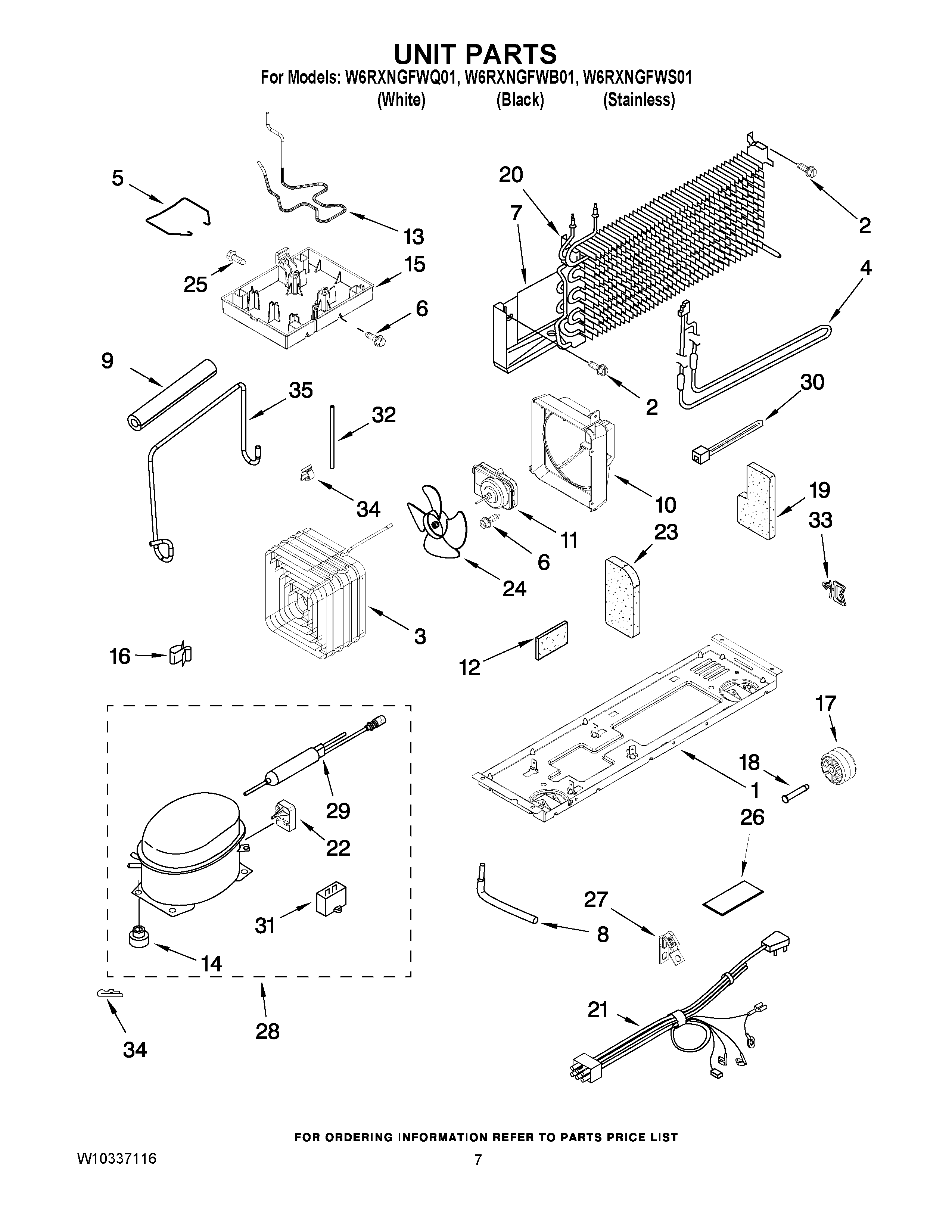

W6RXNGFWQ01 04 – UNIT PARTS

W6RXNGFWQ01 04 – UNIT PARTS

Written by

in

W6RXNGFWQ01 04 – UNIT PARTS

Products

Position	Product
NI	978026 Whirlpool Refrigerator Primary Valve
NI	CABINET (NOT A SERVICEABLE PART)
NI	VALVE, ACCESS (1/2“)
NI	WP978025 Whirlpool Refrigerator Valve
NI	978030 Whirlpool Refrigerator Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	876764 Whirlpool Refrigerator Primary Valve
NI	VALVE, ACCESS (5/8“)
1	WPW10222450 Whirlpool Refrigerator Support
2	WP489442 Whirlpool Refrigerator Screw
3	WP2264004 Whirlpool Refrigerator Condenser
4	WP2263749 Whirlpool Defrost Heater Assembly
5	2264835 Whirlpool Clip
6	WPW10171469 Whirlpool Refrigerator Screw
7	Heat Shield
8	W11676464 Whirlpool Tube
9	2264838 Whirlpool Refrigerator Sleeve
10	WP2263929 Whirlpool Refrigerator Air Baffle
11	W11578915 Whirlpool Condenser Motor
12	W11553819 Whirlpool Refrigerator Insulation
13	W10289687 Whirlpool Refrigerator Tube
14	WPW10169124 Whirlpool Refrigerator Grommet
15	WP2263928 Whirlpool Refrigerator Evaporator Tray
16	W10812038 Whirlpool Refrigerator Clip
17	WPW10475495 Whirlpool Roller Assembly
18	WP2264756 Whirlpool Refrigerator Rivet
19	8201619 Whirlpool Refrigerator Support Assembly
20	WP2263920 Whirlpool Refrigerator Evaporator
21	WPW10151677 Whirlpool Refrigerator Wire Harness
22	W10805623 Whirlpool Refrigerator Start Device
24	2264129 Whirlpool Refrigerator Fan Blade
25	WP489489 Whirlpool Screw
26	2266360 Whirlpool Shield Assembly
27	549193 Whirlpool Refrigerator Power Clamp
28	W10285060 Whirlpool Refrigerator Compressor
29	WPW10143759 Whirlpool Dryer Filter
29	W10843121 Whirlpool Refrigerator Tube
30	WPW10339879 Whirlpool Wire Tie
31	WPW10662129 Whirlpool Refrigerator Run Capacitor
32	2264278 Whirlpool Refrigerator Extension
33	CLIP, HARNESS
34	Clip, Compressor
35	2264131 Whirlpool Refrigerator Tube Extension
