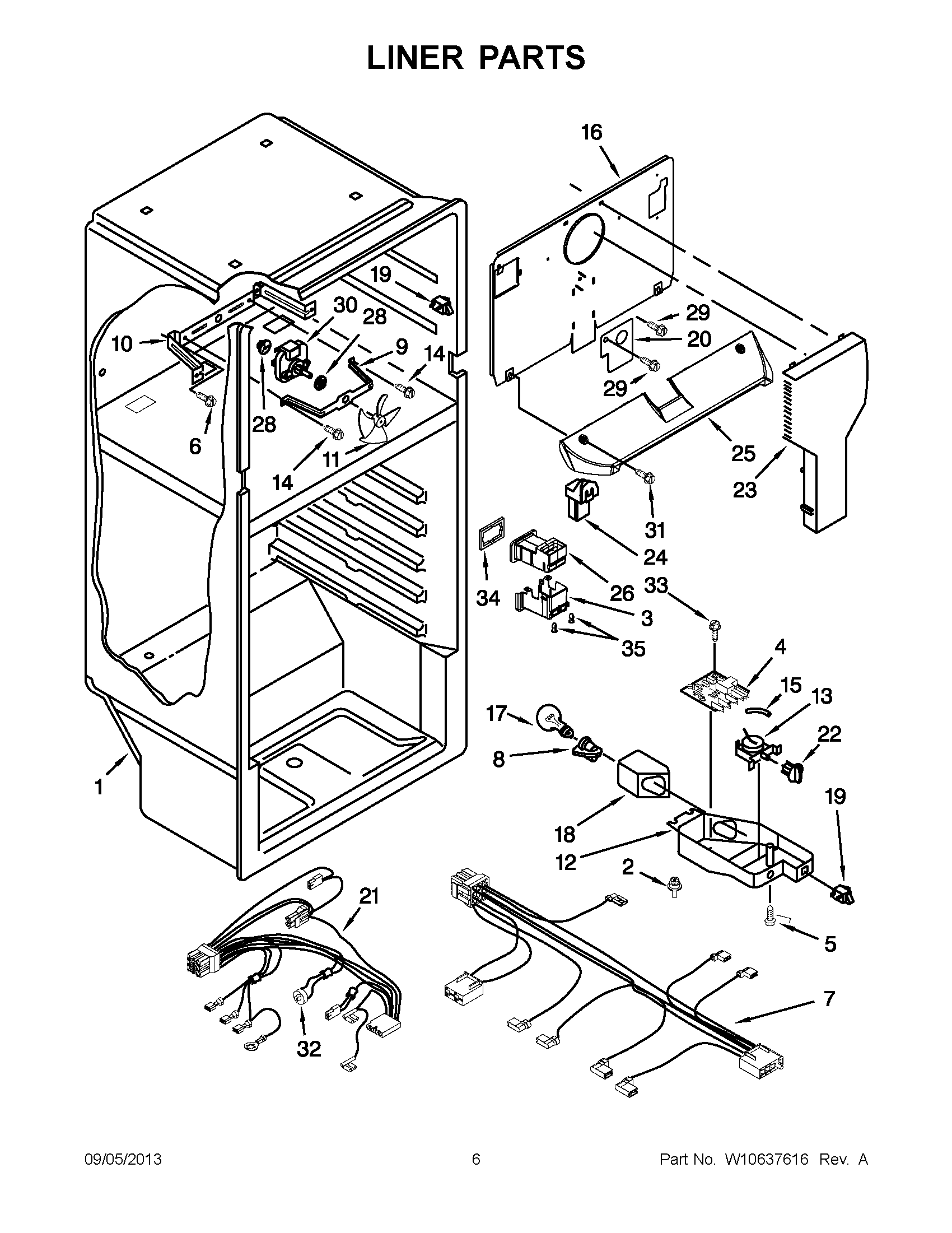

W6RXNGFWQ02 04 – LINER PARTS

Products

Position	Product
1	CABINET (NOT A SERVICEABLE PART)
2	939962 Whirlpool Refrigerator Rivet
3	2252837 Whirlpool Refrigerator Cover
4	4388931 Whirlpool Defrost Timer
5	WP489174 Whirlpool Refrigerator Screw
6	WP489442 Whirlpool Refrigerator Screw
7	2265930 Whirlpool Refrigerator Wire Harness
8	4387478 Whirlpool Refrigerator Light Socket
9	WPW10180172 Whirlpool Refrigerator Bracket
10	Fan Mounting Bracket
11	Fan Blade
12	2263083 Whirlpool Refrigerator Control Box
13	WPW10567140 Whirlpool Refrigerator Thermostat
14	WP489399 Whirlpool Refrigerator Screw
15	WP2196003 Whirlpool Refrigerator Bar Riser
16	COVER, EVAPORATOR
17	RANGE ONLY 40W 120V APPL BULB
18	W11034434 Whirlpool Refrigerator Light Lens
19	W11384469 Whirlpool Door Switch
20	WP2217784 Whirlpool Refrigerator Cover
21	W10290502 Whirlpool Refrigerator Wire Harness
22	WP2202885 Whirlpool Refrigerator Thermal Knob
23	9790408 Whirlpool Refrigerator Air Tower
24	Hood And Foil Assembly
25	Cover, Air Return
26	WPW10355265 Whirlpool Refrigerator Diffuser
28	WP2264462 Whirlpool Refrigerator Grommet
29	WP489478 Whirlpool Refrigerator Screw
30	WPW10188389 Whirlpool Evaporator Fan Motor
31	WP489474 Whirlpool Refrigerator Screw
32	WPW10225581 Whirlpool Refrigerator Defrost Thermostat
33	WP487353 Whirlpool Refrigerator Screw
34	GASKET, BODY AIR DIFFUSER
35	Rivet
