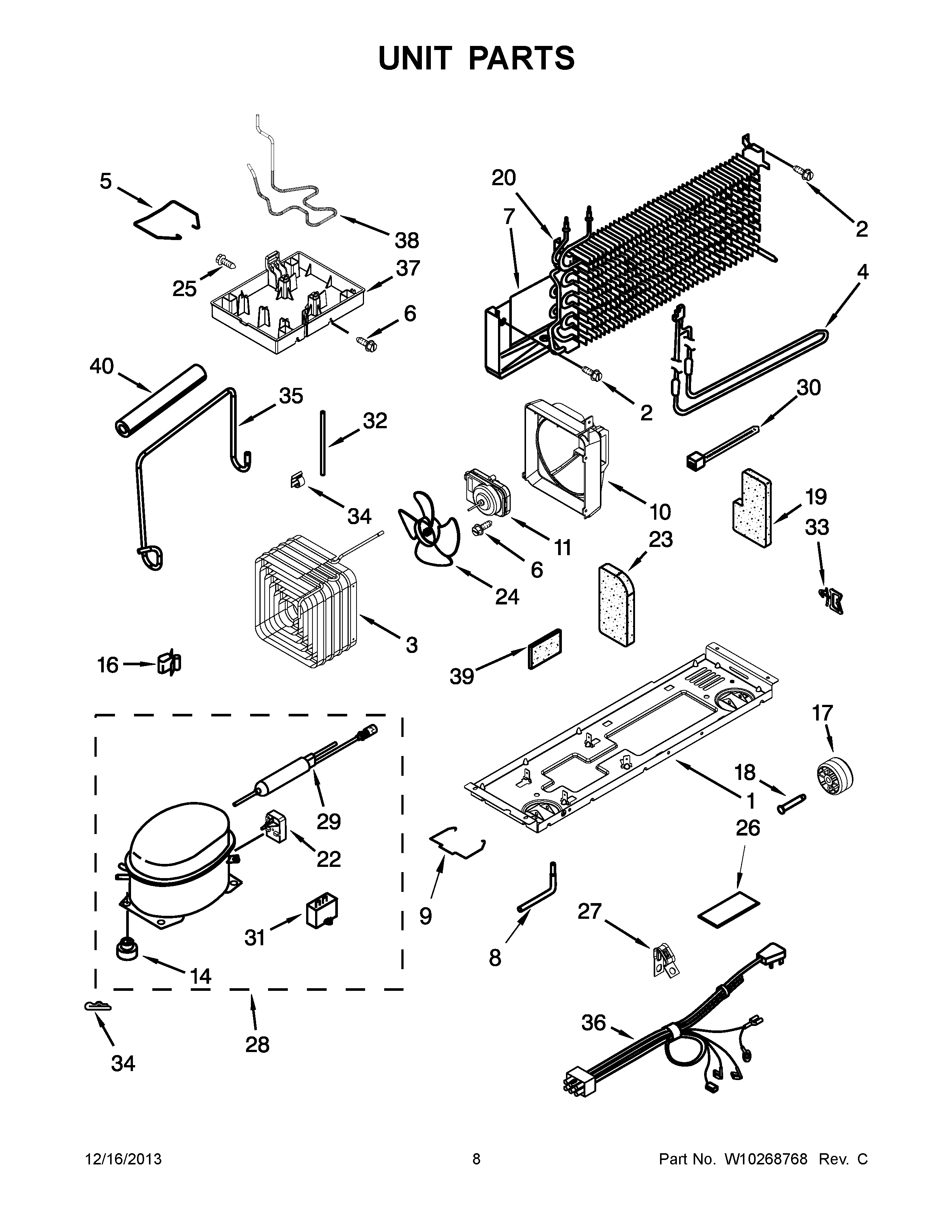

W6RXNGFWS00 05 – UNIT PARTS

Products

Position	Product
NI	VALVE, ACCESS (5/8“)
NI	CABINET (NOT A SERVICEABLE PART)
NI	VALVE, ACCESS (1/2“)
NI	WP978025 Whirlpool Refrigerator Valve
NI	978030 Whirlpool Refrigerator Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	978026 Whirlpool Refrigerator Primary Valve
NI	876764 Whirlpool Refrigerator Primary Valve
1	WPW10222450 Whirlpool Refrigerator Support
2	WP489442 Whirlpool Refrigerator Screw
3	WP2264004 Whirlpool Refrigerator Condenser
4	WP2263749 Whirlpool Defrost Heater Assembly
5	2264835 Whirlpool Clip
6	WPW10171469 Whirlpool Refrigerator Screw
7	Heat Shield
8	W11676464 Whirlpool Tube
9	2212996 Whirlpool Refrigerator Retainer
10	W10358308 Whirlpool Refrigerator Air Baffle
11	W11578915 Whirlpool Condenser Motor
14	WPW10169124 Whirlpool Refrigerator Grommet
16	W10812038 Whirlpool Refrigerator Clip
17	WPW10475495 Whirlpool Roller Assembly
18	WP2264756 Whirlpool Refrigerator Rivet
19	8201619 Whirlpool Refrigerator Support Assembly
20	WP2263920 Whirlpool Refrigerator Evaporator
22	DEVICE, START (COMBINATION RELAY AND OVERLOAD)
24	2264129 Whirlpool Refrigerator Fan Blade
25	WP489489 Whirlpool Screw
26	2266360 Whirlpool Shield Assembly
27	549193 Whirlpool Refrigerator Power Clamp
28	Compressor (Includes Items 12,13,14,22,29, 32 & 34) (Also Order 482801 Installation Kit & 876765 Tube Kit)
29	W10843121 Whirlpool Refrigerator Tube
30	WPW10339879 Whirlpool Wire Tie
31	WPW10662129 Whirlpool Refrigerator Run Capacitor
32	2264278 Whirlpool Refrigerator Extension
33	CLIP, HARNESS
34	Clip, Compressor
35	2264131 Whirlpool Refrigerator Tube Extension
36	WPW10151677 Whirlpool Refrigerator Wire Harness
37	WP2263928 Whirlpool Refrigerator Evaporator Tray
38	2316181 Whirlpool Tube
39	W11553819 Whirlpool Refrigerator Insulation
40	2264838 Whirlpool Refrigerator Sleeve
