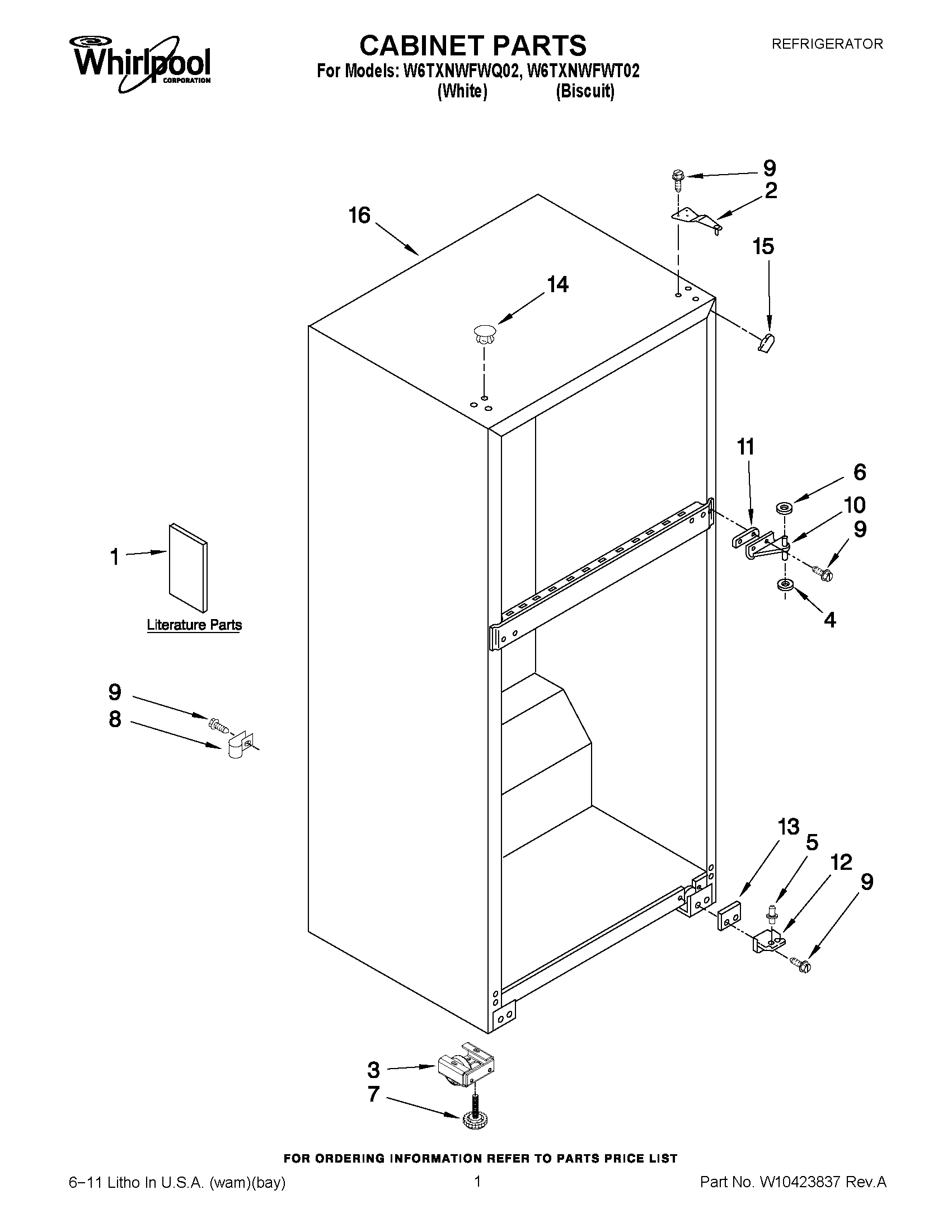

W6TXNWFWQ02 01 – CABINET PARTS

W6TXNWFWQ02 01 – CABINET PARTS

Written by

in

W6TXNWFWQ02 01 – CABINET PARTS

Products

PositionProduct
1ENERGY LABEL
1Use & Care Guide
1SERVICE & WIRING SHEET
2WP2261963 Whirlpool Refrigerator Door Hinge
3WPW10142530 Whirlpool Refrigerator Cabinet Roller
4WP489467 Whirlpool Hinge Shim
5WP2325483 Whirlpool Hinge Pin
6WP487576 Whirlpool Washer
7WPW10133299 Whirlpool Refrigerator Screw
8549193 Whirlpool Refrigerator Power Clamp
9WP489497 Whirlpool Screw
10WP2166037 Whirlpool Refrigerator Door Hinge
112166043 Whirlpool Refrigerator Shim
12WP2325482 Whirlpool Bottom Hinge
13WP2201567 Whirlpool Hinge Shim
14WP2151652 Whirlpool Refrigerator Button Plug
14Hole Plug (6) (Biscuit)
15W10859322 Whirlpool Refrigerator Filler
152202282 Whirlpool Refrigerator Filler
16CABINET (NOT A SERVICEABLE PART)
