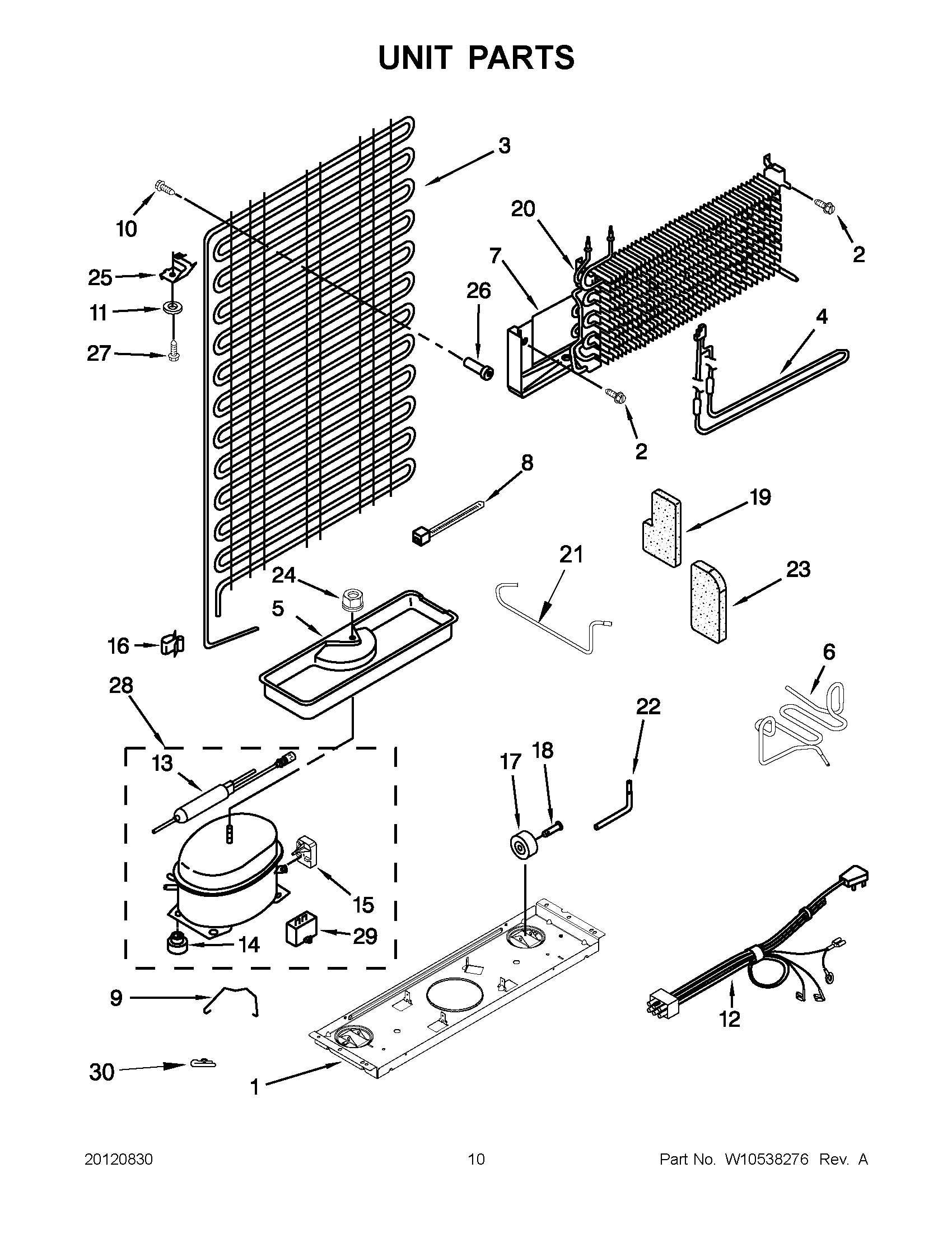

W6TXNWFWQ03 05 – UNIT PARTS

Products

Position	Product
NI	WP978025 Whirlpool Refrigerator Valve
NI	VALVE, ACCESS (5/8“)
NI	876764 Whirlpool Refrigerator Primary Valve
NI	978026 Whirlpool Refrigerator Primary Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	978030 Whirlpool Refrigerator Valve
NI	CABINET (NOT A SERVICEABLE PART)
NI	VALVE, ACCESS (1/2“)
1	WPW10222451 Whirlpool Refrigerator Support
3	WPW10219348 Whirlpool Refrigerator Condenser
4	WP2263749 Whirlpool Defrost Heater Assembly
5	EVAPORATOR TRAY
6	W10174380 Whirlpool Refrigerator Tube
7	Heat Shield
8	WPW10339879 Whirlpool Wire Tie
9	W10174383 Whirlpool Clip
10	Screw
11	8526417 Whirlpool Washer
12	W10151654 Whirlpool Refrigerator Wire Harness
13	WPW10143759 Whirlpool Dryer Filter
14	WP4387558 Whirlpool Refrigerator Compressor Grommet
15	W10892065 Whirlpool Refrigerator Compressor Start Relay Device
16	W10812038 Whirlpool Refrigerator Clip
17	WPW10475495 Whirlpool Roller Assembly
18	WP2264756 Whirlpool Refrigerator Rivet
19	8201619 Whirlpool Refrigerator Support Assembly
20	WP2263920 Whirlpool Refrigerator Evaporator
21	W10174385 Whirlpool Tube
22	W10205260 Whirlpool Tube
24	285002 Whirlpool Nut
25	4386951 Whirlpool Refrigerator Clip
26	2258452 Whirlpool Refrigerator Spacer
27	WP489442 Whirlpool Refrigerator Screw
28	W10233960 Whirlpool Refrigerator Compressor
29	WPW10662129 Whirlpool Refrigerator Run Capacitor
30	Clip, Compressor
