W6TXNWFWT03 05 – UNIT PARTS

W6TXNWFWT03 05 – UNIT PARTS

Written by

in

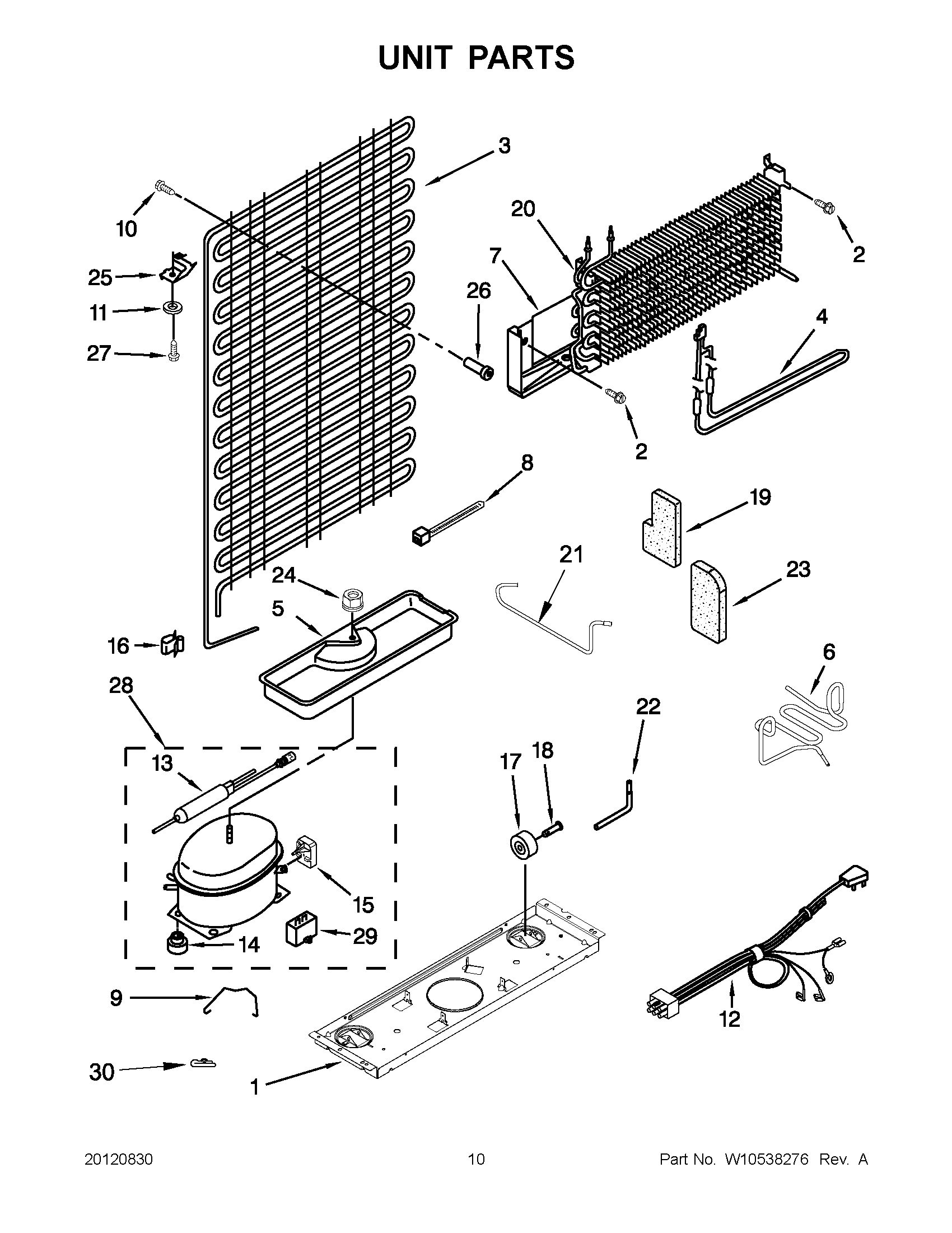

W6TXNWFWT03 05 – UNIT PARTS

Products

PositionProduct
NIWP978025 Whirlpool Refrigerator Valve
NIVALVE, ACCESS (5/8“)
NI876764 Whirlpool Refrigerator Primary Valve
NI978026 Whirlpool Refrigerator Primary Valve
NI978027 Whirlpool Refrigerator Primary Valve
NI978030 Whirlpool Refrigerator Valve
NICABINET (NOT A SERVICEABLE PART)
NIVALVE, ACCESS (1/2“)
1WPW10222451 Whirlpool Refrigerator Support
3WPW10219348 Whirlpool Refrigerator Condenser
4WP2263749 Whirlpool Defrost Heater Assembly
5EVAPORATOR TRAY
6W10174380 Whirlpool Refrigerator Tube
7Heat Shield
8WPW10339879 Whirlpool Wire Tie
9W10174383 Whirlpool Clip
10Screw
118526417 Whirlpool Washer
12W10151654 Whirlpool Refrigerator Wire Harness
13WPW10143759 Whirlpool Dryer Filter
14WP4387558 Whirlpool Refrigerator Compressor Grommet
15W10892065 Whirlpool Refrigerator Compressor Start Relay Device
16W10812038 Whirlpool Refrigerator Clip
17WPW10475495 Whirlpool Roller Assembly
18WP2264756 Whirlpool Refrigerator Rivet
198201619 Whirlpool Refrigerator Support Assembly
20WP2263920 Whirlpool Refrigerator Evaporator
21W10174385 Whirlpool Tube
22W10205260 Whirlpool Tube
24285002 Whirlpool Nut
254386951 Whirlpool Refrigerator Clip
262258452 Whirlpool Refrigerator Spacer
27WP489442 Whirlpool Refrigerator Screw
28W10233960 Whirlpool Refrigerator Compressor
29WPW10662129 Whirlpool Refrigerator Run Capacitor
30Clip, Compressor
