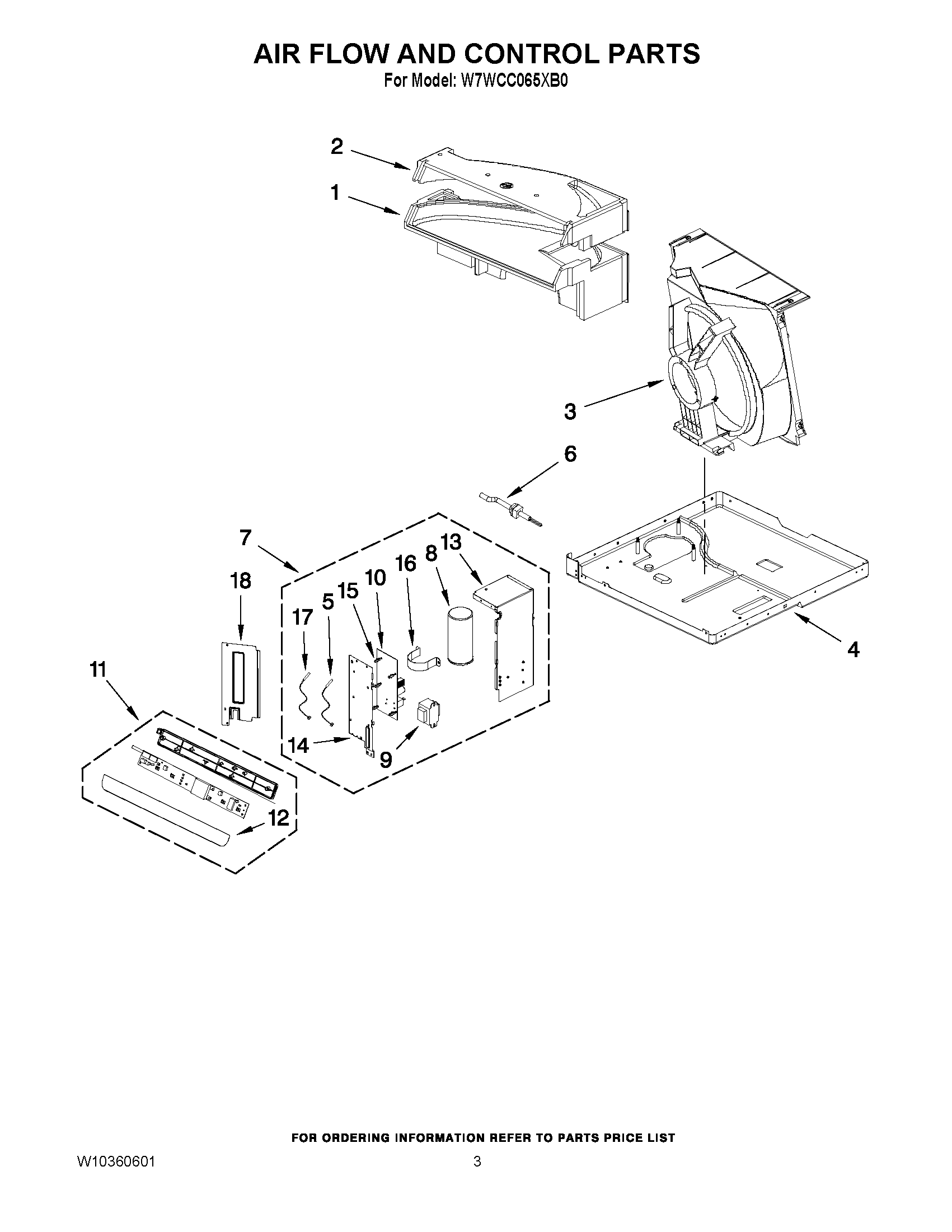

W7WCC065XB0 02 – AIR FLOW AND CONTROL PARTS

Written by

Products

Position	Product
1	SCROLL
2	HOUSING
3	REAR CLAPBOARD
4	BASE
5	Thermistor
6	OVERLOAD
7	CONTROL BOX
8	W10362216 Whirlpool Capacitor
9	WP8215051 Whirlpool Air Conditioner Transformer
10	MAIN BOARD
11	WPW10362683 Whirlpool Electronic Control
12	MEMBRANE
13	ELECT BOX SIDE
14	ELECT BOX SIDE
15	SPACER
16	Bracket, Capacitor
17	AMB TEMP SENSOR
18	ELECT BOX COVER
