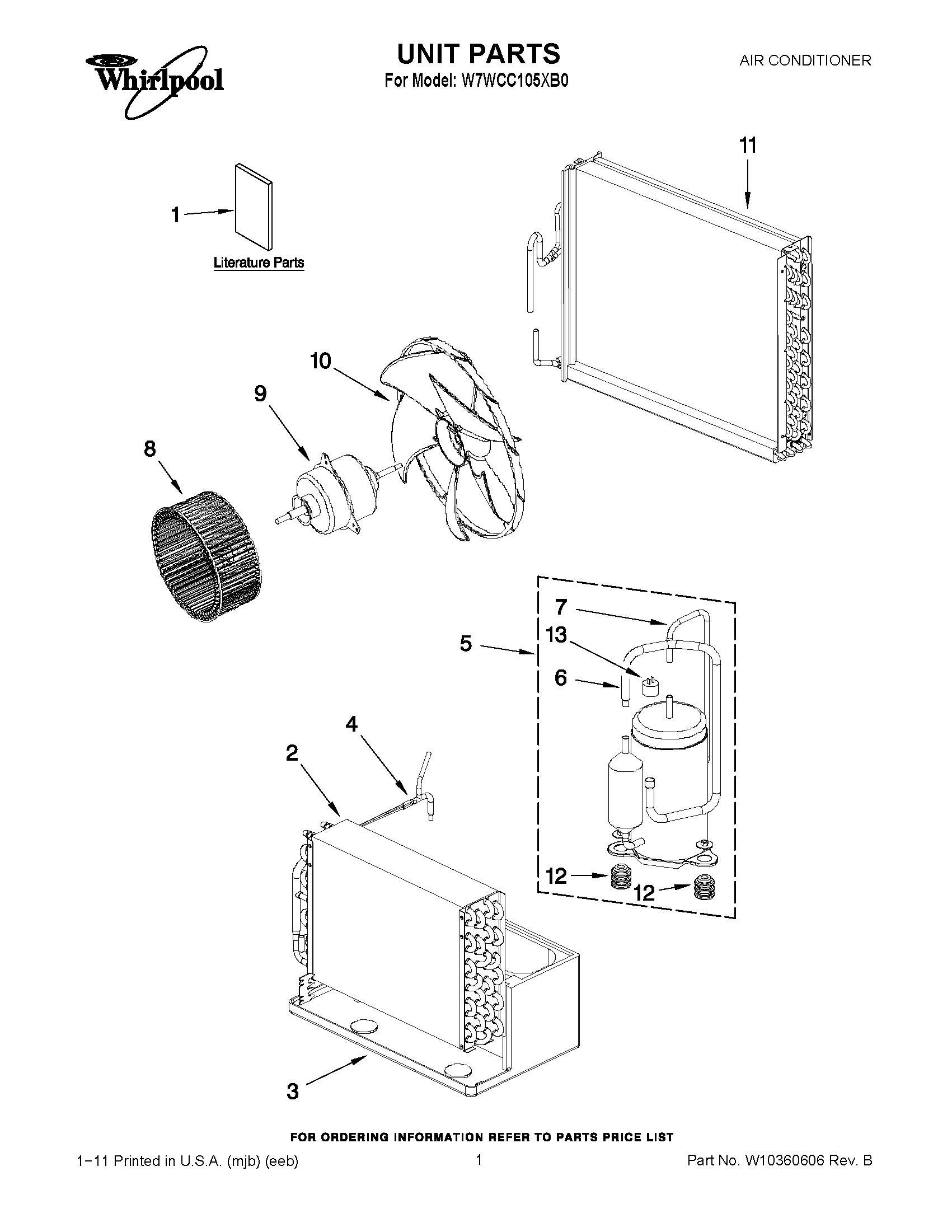

W7WCC105XB0 01 – UNIT PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
1USE & CARE GUIDE
1ENERGY GUIDE
1WIRING DIAGRAM
2W10362768 Whirlpool Evaporator
3PAN-DRIP
4TUBE-RESTR
5COMPRESSOR
6TUBE-INLET
7TUBE-DSCHG
8WHEEL, BLOWER
9WPW10362783 Whirlpool Air Conditioner Fan Motor
10WPW10362784 Whirlpool Air Conditioner Fan Blade
11WPW10362766 Whirlpool Condenser
12GASKET
13OVERLOAD
