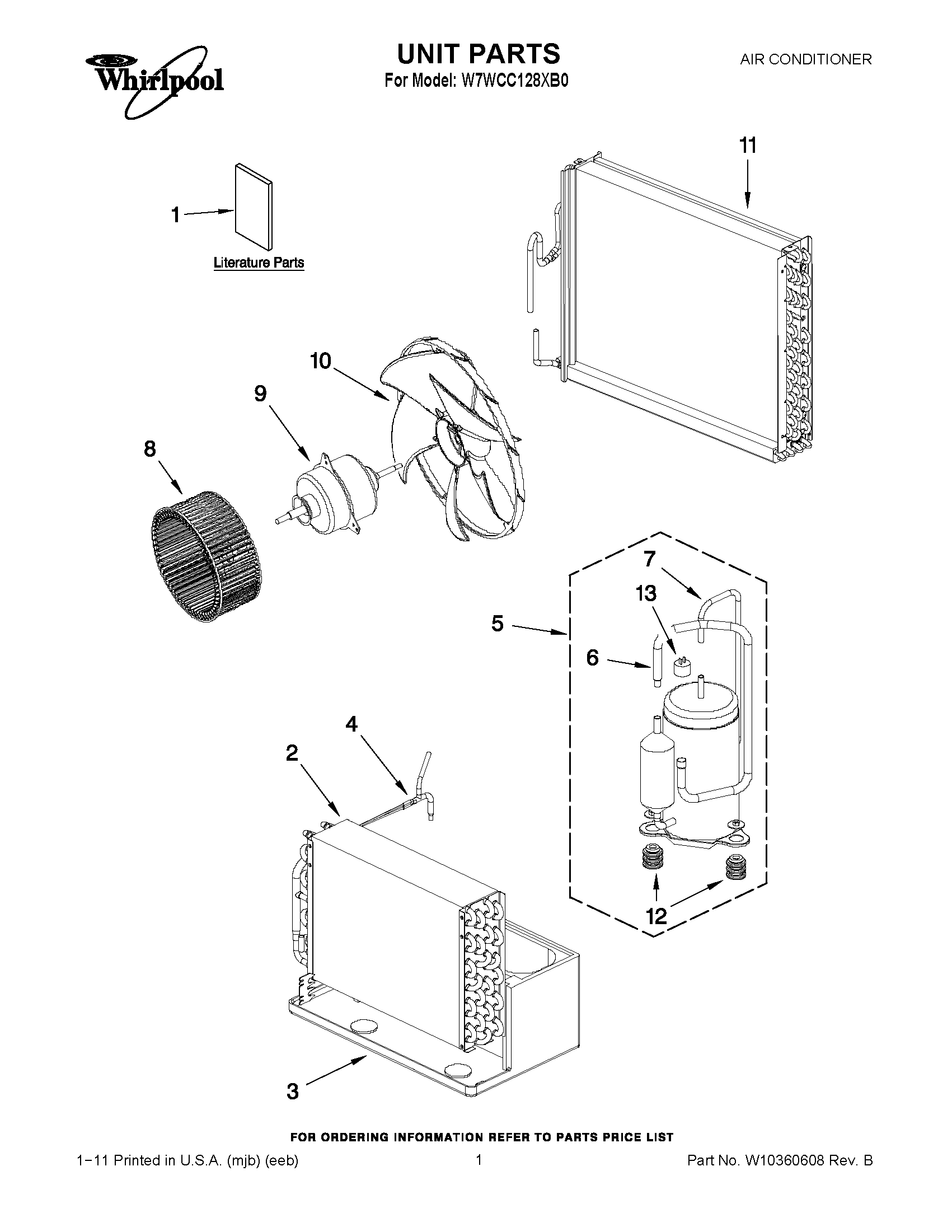

W7WCC128XB0 01 – UNIT PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
1	USE & CARE GUIDE
1	ENERGY GUIDE
1	WIRING DIAGRAM
2	W10362768 Whirlpool Evaporator
3	PAN-DRIP
4	TUBE-RESTR
5	WPW10362800 Whirlpool Air Conditioner Compressor
6	TUBE-INLET
7	TUBE-DSCHG
8	WHEEL, BLOWER
9	WPW10362783 Whirlpool Air Conditioner Fan Motor
10	WPW10362784 Whirlpool Air Conditioner Fan Blade
11	WPW10362766 Whirlpool Condenser
12	GASKET
13	OVERLOAD
