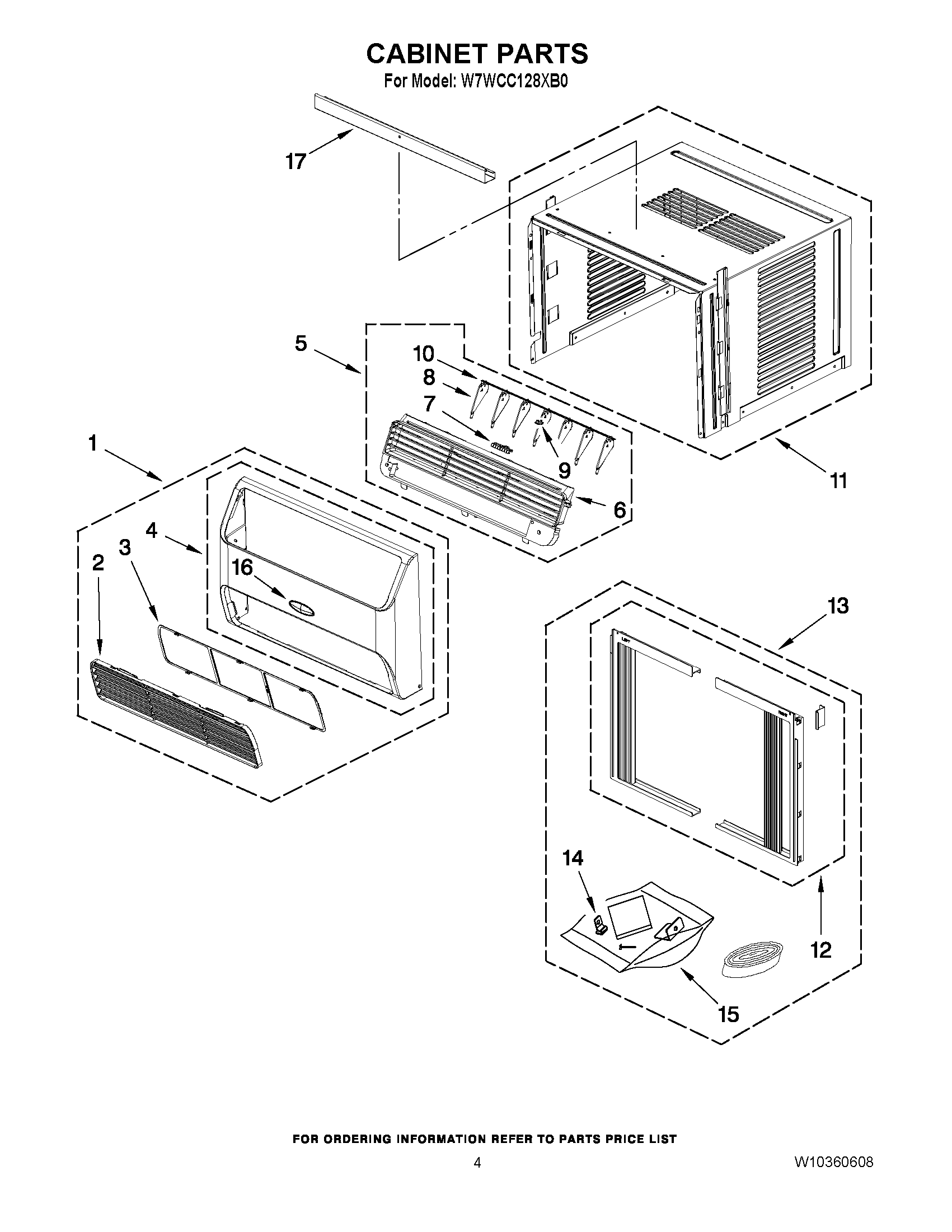

W7WCC128XB0 03 – CABINET PARTS

Written by

Products

Position	Product
1	FRONT PNL ASSY
2	AIR INLET FRAME
3	WPW10368340A Whirlpool Air Conditioner Filter
4	FRT PNL SUB ASSY
5	AIR OUTLET FR ASSY
6	AIR OUTLET FRAME
7	MANUAL LEVER
8	AIR LOUVER 2
9	AIR LOUVER 1
10	SWING LEVER
11	CABINET ASSY
12	CURTAIN ASSY
13	MTG ACCESSORIES
14	CLAMP
15	SCR ACCESSORIES
16	Nameplate
17	TOP GUIDE
