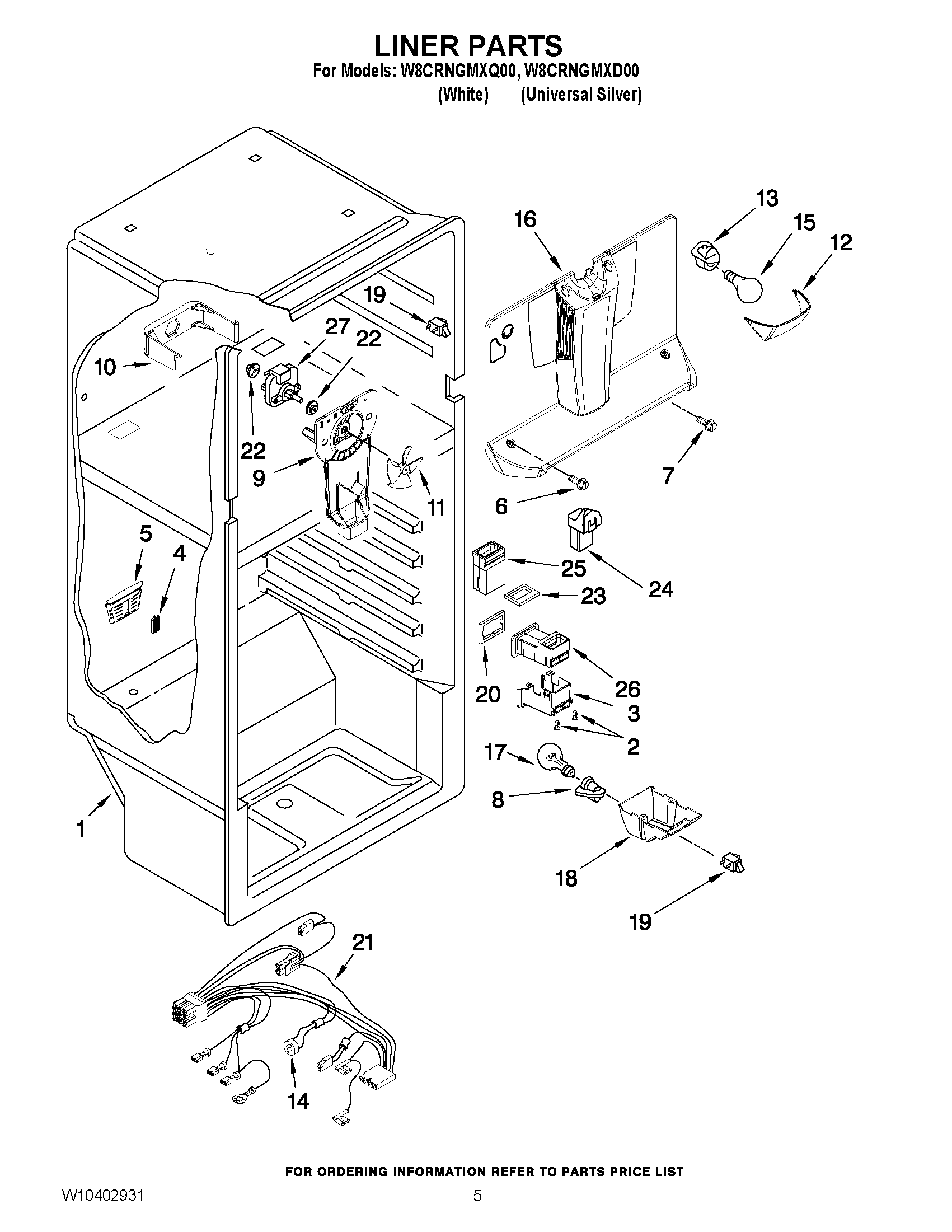

W8CRNGMXD00 03 – LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2Rivet
32252837 Whirlpool Refrigerator Cover
4W10311524 Whirlpool FreshFlow Refrigerator Air Filter
5GRILLE, AIR FILTER
6WP489474 Whirlpool Refrigerator Screw
7SCREW
84387478 Whirlpool Refrigerator Light Socket
9FAN SUPPORT BRACKET
10RETAINER, FAN MOTOR
11WP2169142 Whirlpool Fan Blade
12LIGHT LENS
13W10545295 Whirlpool Refrigerator Socket
14WP2211224 Whirlpool Refrigerator Bi-Metal Defrost Thermostat
15Light Bulb
16COVER, EVAPORATOR
17LIGHT BULB
18LIGHT LENS
19W11384469 Whirlpool Door Switch
20GASKET, BODY AIR DIFFUSER
21WIRING, FREEZER (INCLUDES ITEM 14)
22WP2264462 Whirlpool Refrigerator Grommet
232263075 Whirlpool Refrigerator Gasket
24Hood And Foil Assembly
25AIR DUCT ASSEMBLY
262252831 Whirlpool Refrigerator Air Duct
27WPW10188389 Whirlpool Evaporator Fan Motor
