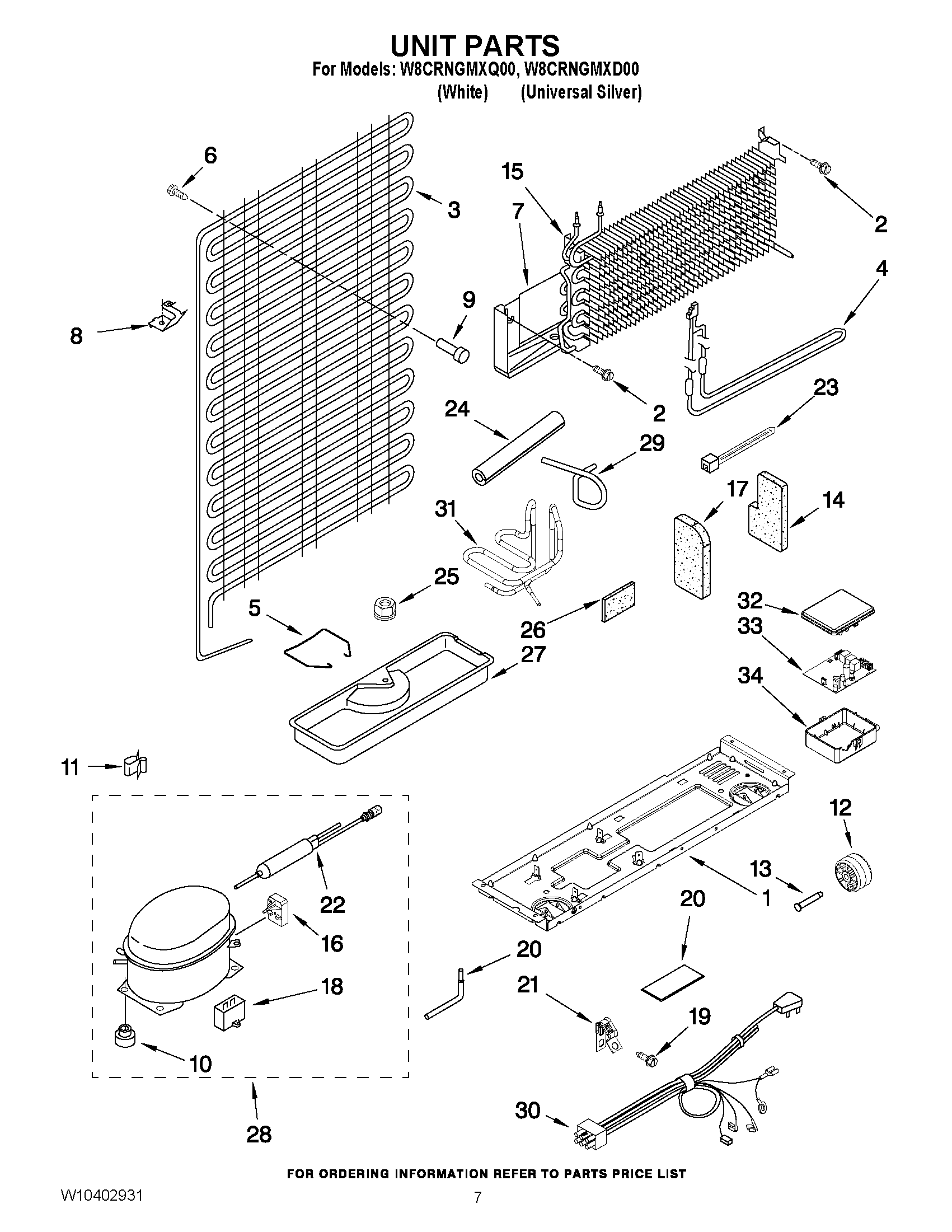

W8CRNGMXD00 04 – UNIT PARTS

Products

Position	Product
NI	VALVE, ACCESS (1/2“)
NI	CABINET (NOT A SERVICEABLE PART)
NI	WP978025 Whirlpool Refrigerator Valve
NI	978030 Whirlpool Refrigerator Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	978026 Whirlpool Refrigerator Primary Valve
NI	876764 Whirlpool Refrigerator Primary Valve
NI	VALVE, ACCESS (5/8“)
1	WPW10222451 Whirlpool Refrigerator Support
3	WPW10219349 Whirlpool Refrigerator Condenser
4	WP2263749 Whirlpool Defrost Heater Assembly
5	W10174383 Whirlpool Clip
6	Screw
7	Heat Shield
8	4386951 Whirlpool Refrigerator Clip
9	2258452 Whirlpool Refrigerator Spacer
10	WP2163786 Whirlpool Refrigerator Grommet
10	876811 Whirlpool Grommet
11	W10812038 Whirlpool Refrigerator Clip
12	WPW10475495 Whirlpool Roller Assembly
13	WP2264756 Whirlpool Refrigerator Rivet
14	8201619 Whirlpool Refrigerator Support Assembly
15	WP2263920 Whirlpool Refrigerator Evaporator
16	W10892065 Whirlpool Refrigerator Compressor Start Relay Device
16	WPW10194431 Whirlpool Start Device
18	WPW10662129 Whirlpool Refrigerator Run Capacitor
19	WP489442 Whirlpool Refrigerator Screw
20	W10205260 Whirlpool Tube
21	549193 Whirlpool Refrigerator Power Clamp
22	WPW10143759 Whirlpool Dryer Filter
22	W10843121 Whirlpool Refrigerator Tube
23	WPW10339879 Whirlpool Wire Tie
24	SLEEVE
25	285002 Whirlpool Nut
26	W11553819 Whirlpool Refrigerator Insulation
27	EVAPORATOR TRAY
28	W10233960 Whirlpool Refrigerator Compressor
29	EXTENSION, TUBE-HEAT
30	WIRE ASSY. UNIT
31	TUBE, DISCHARGE (INCL. PRE COOLER)
32	Cover
33	ELEC. CONTROL
34	Box, Control
