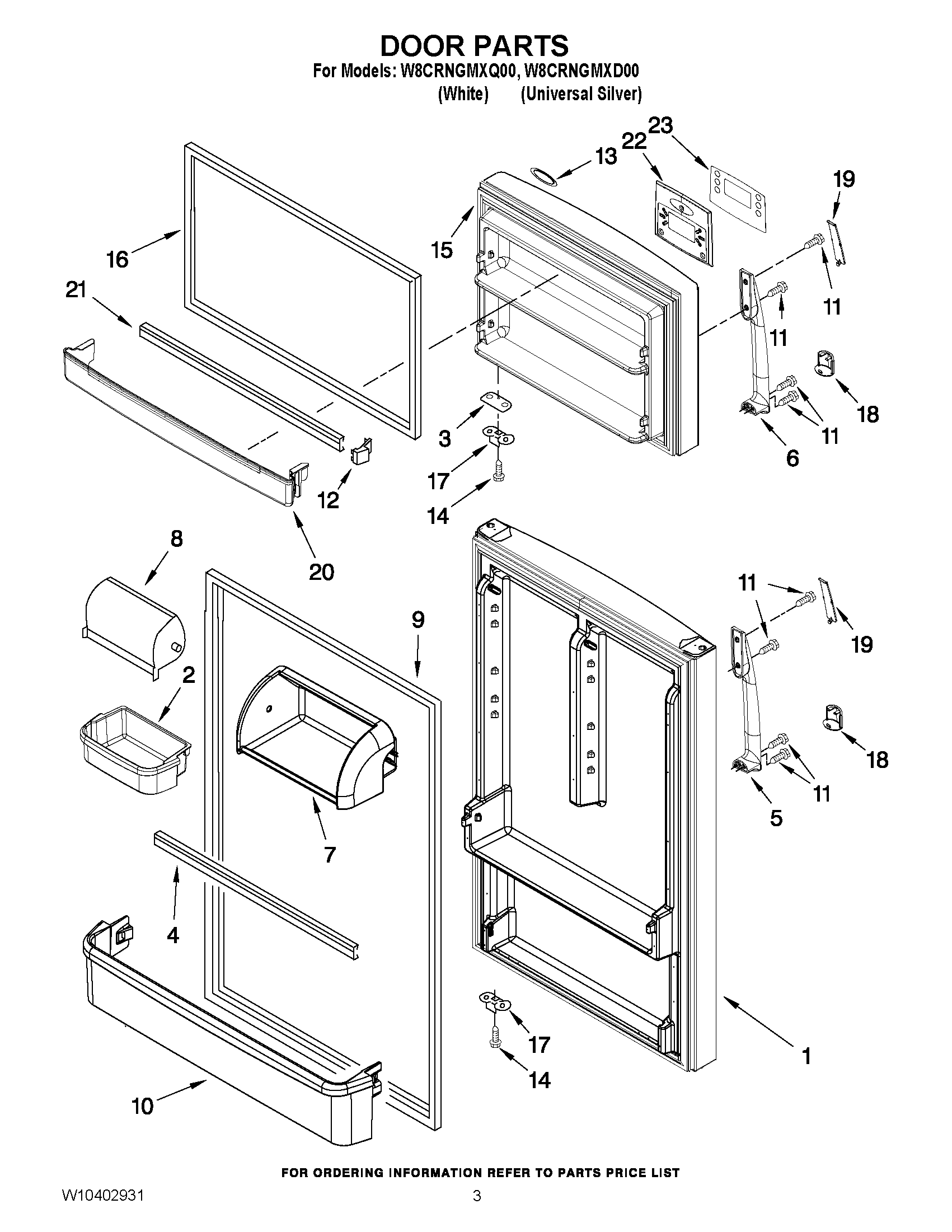

W8CRNGMXQ00 02 – DOOR PARTS

Products

Position	Product
1	REFRIGERATOR DOOR (INCLUDES ILLUS. 9) (UNIVERSAL SILVER)
1	REFRIGERATOR DOOR (INCLUDES ILLUS. 9) (WHITE)
2	BIN, DOOR
3	WP2258681W Whirlpool Refrigerator Shim
4	WPW10234241 Whirlpool Door Shelf Trim
5	HANDLE, RC (WHITE)
5	HANDLE, RC (SILVER)
6	HANDLE, FC (SILVER)
6	HANDLE, FC (WHITE)
7	2264477 Whirlpool Refrigerator Housing Assembly
8	DOOR, COMPARTMENT
9	WP2319264W Whirlpool Refrigerator FIP Gasket
9	W11578847 Whirlpool Refrigerator FIP Gasket
10	WPW10468559 Whirlpool Refrigerator Clear Door Shelf Trim
11	WP489491 Whirlpool Refrigerator Screw
12	WP2156003 Whirlpool Refrigerator Door Shelf End Cap
13	WP2213265 Whirlpool Refrigerator Nameplate
14	SCREW
15	FREEZER DOOR (INCLUDES ILLUS. 16) (WHITE)
15	FREEZER DOOR (INCLUDES ILLUS. 16) (UNIVERSAL SILVER)
16	GASKET-FIP
16	W11661186 Whirlpool Door Gasket
17	W11745278 Whirlpool Bracket
18	END CAP, HANDLE (SLIVER)
18	END CAP, HANDLE (WHITE)
19	INSERT, HANDLE
20	TRIM, FC DOOR
21	TRIM, DOOR SHELF
22	UI ELEC. CONTROL
23	OVERLAY, UI ELEC. CONTROL
