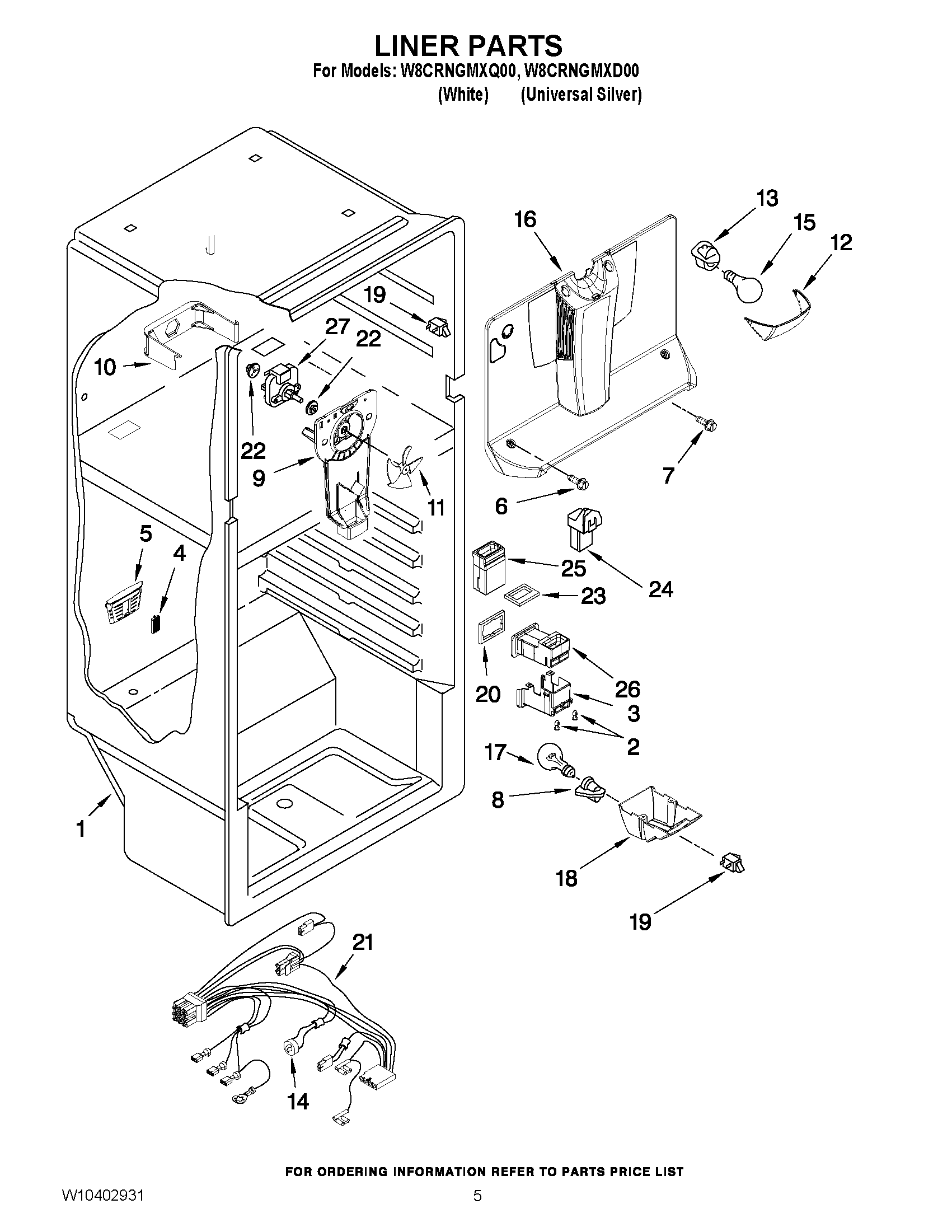

W8CRNGMXQ00 03 – LINER PARTS

Products

Position	Product
1	CABINET (NOT A SERVICEABLE PART)
2	Rivet
3	2252837 Whirlpool Refrigerator Cover
4	W10311524 Whirlpool FreshFlow Refrigerator Air Filter
5	GRILLE, AIR FILTER
6	WP489474 Whirlpool Refrigerator Screw
7	SCREW
8	4387478 Whirlpool Refrigerator Light Socket
9	FAN SUPPORT BRACKET
10	RETAINER, FAN MOTOR
11	WP2169142 Whirlpool Fan Blade
12	LIGHT LENS
13	W10545295 Whirlpool Refrigerator Socket
14	WP2211224 Whirlpool Refrigerator Bi-Metal Defrost Thermostat
15	Light Bulb
16	COVER, EVAPORATOR
17	LIGHT BULB
18	LIGHT LENS
19	W11384469 Whirlpool Door Switch
20	GASKET, BODY AIR DIFFUSER
21	WIRING, FREEZER (INCLUDES ITEM 14)
22	WP2264462 Whirlpool Refrigerator Grommet
23	2263075 Whirlpool Refrigerator Gasket
24	Hood And Foil Assembly
25	AIR DUCT ASSEMBLY
26	2252831 Whirlpool Refrigerator Air Duct
27	WPW10188389 Whirlpool Evaporator Fan Motor
