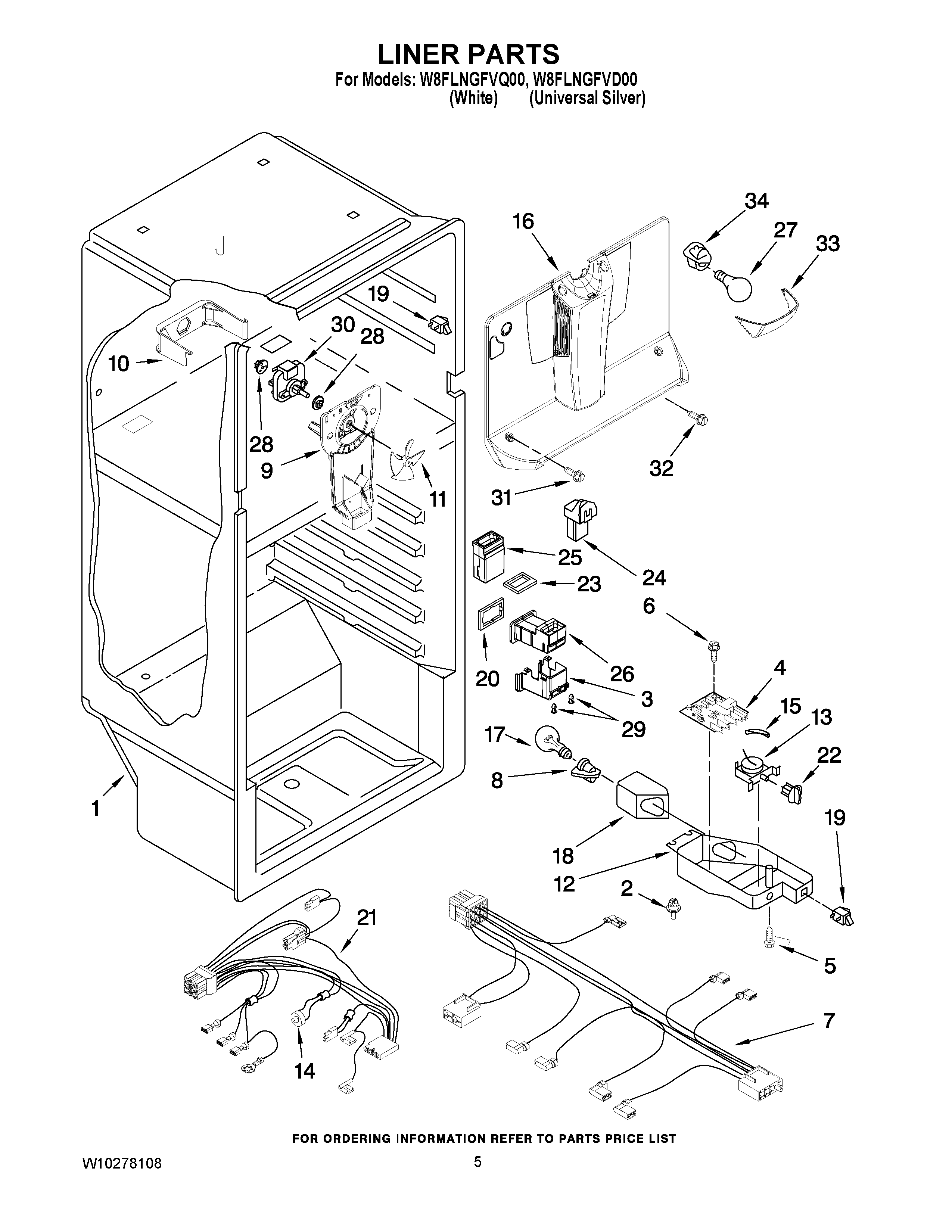

W8FLNGFVD00 03 – LINER PARTSadmin2025-04-26T11:03:50+00:00W8FLNGFVD00 03 – LINER PARTS ProductsPositionProduct1CABINET (NOT A SERVICEABLE PART)2939962 Whirlpool Refrigerator Rivet32252837 Whirlpool Refrigerator Cover44388931 Whirlpool Defrost Timer5WP489174 Whirlpool Refrigerator Screw6WP487353 Whirlpool Refrigerator Screw7Wire Assembly Control Box84387478 Whirlpool Refrigerator Light Socket9FAN SUPPORT BRACKET10RETAINER, FAN MOTOR11WP2169142 Whirlpool Fan Blade12Control Box13WPW10511937 Whirlpool Thermostat Control14WPW10225581 Whirlpool Refrigerator Defrost Thermostat15WP2196003 Whirlpool Refrigerator Bar Riser16COVER, EVAPORATOR18W11034434 Whirlpool Refrigerator Light Lens19W11384469 Whirlpool Door Switch20GASKET, BODY AIR DIFFUSER21WIRING, FREEZER (INCLUDES ITEM 14)22WP2202885 Whirlpool Refrigerator Thermal Knob232263075 Whirlpool Refrigerator Gasket24Hood And Foil Assembly262252831 Whirlpool Refrigerator Air Duct27W11679940 Whirlpool Refrigerator Light Bulb Assembly28WP2264462 Whirlpool Refrigerator Grommet29Rivet30WPW10188389 Whirlpool Evaporator Fan Motor31WP489474 Whirlpool Refrigerator Screw32SCREW33LIGHT LENS34W10545295 Whirlpool Refrigerator Socket
