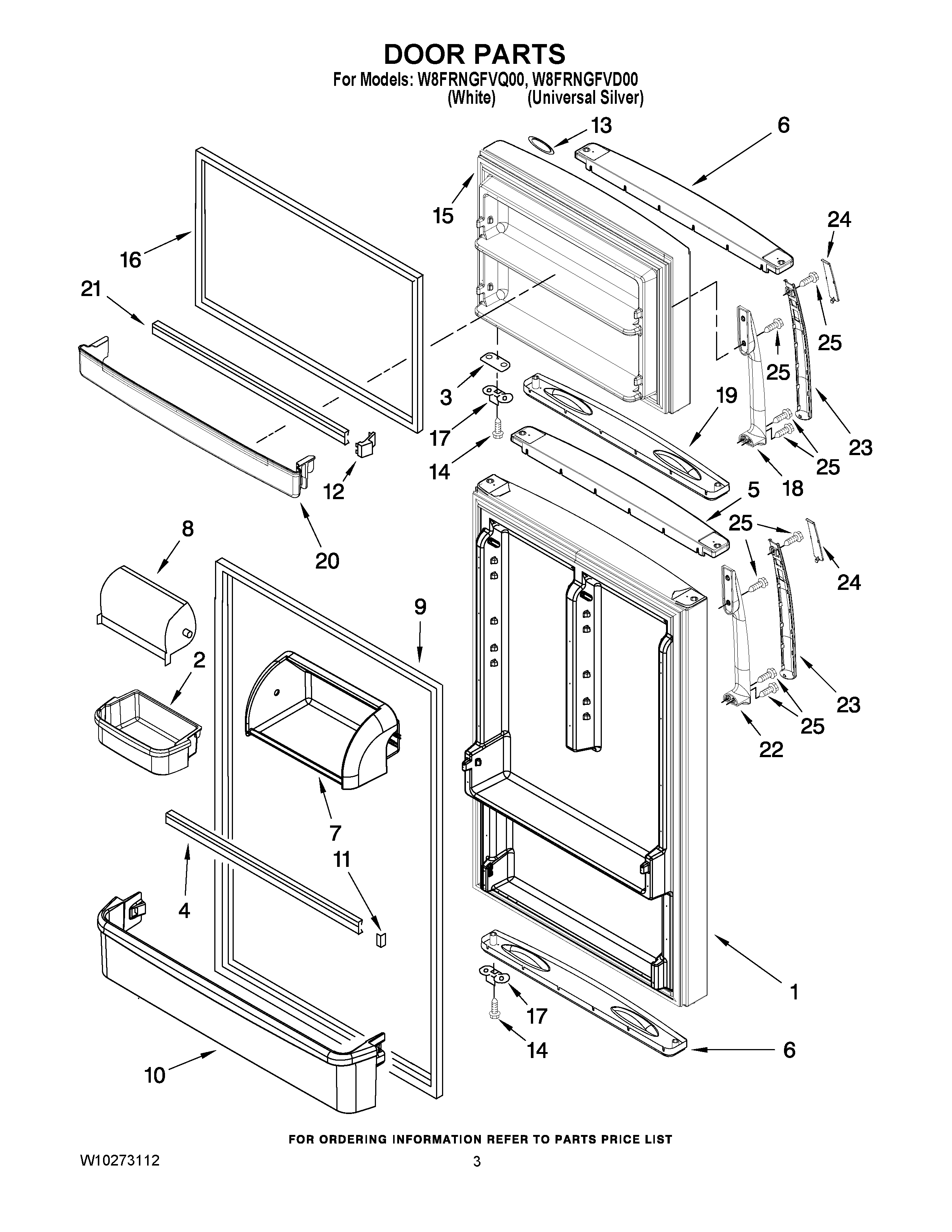

W8FRNGFVD00 02 – DOOR PARTSadmin2025-04-26T11:05:22+00:00W8FRNGFVD00 02 – DOOR PARTS
Products
| Position | Product |
|---|
| 1 | REFRIGERATOR DOOR (INCLUDES ILLUS. 5,6 & 9) (UNIVERSAL SILVER) |
| 1 | REFRIGERATOR DOOR (INCLUDES ILLUS. 9) (WHITE) |
| 2 | BIN, DOOR |
| 3 | WP2258681W Whirlpool Refrigerator Shim |
| 4 | Trim, Door Shelf |
| 5 | ENDCAP, TOP RC (WHITE) |
| 5 | ENDCAP, TOP RC (APOLLO GREY) |
| 6 | ENDCAP (APOLLO GREY) |
| 6 | ENDCAP (WHITE) |
| 7 | 2264477 Whirlpool Refrigerator Housing Assembly |
| 8 | DOOR, COMPARTMENT |
| 9 | WP2319264W Whirlpool Refrigerator FIP Gasket |
| 10 | WPW10468559 Whirlpool Refrigerator Clear Door Shelf Trim |
| 11 | ENDCAP-TRM |
| 12 | WP2156003 Whirlpool Refrigerator Door Shelf End Cap |
| 13 | WP2213265 Whirlpool Refrigerator Nameplate |
| 14 | SCREW |
| 15 | FREEZER DOOR (INCLUDES ILLUS. 16) (WHITE) |
| 15 | FREEZER DOOR (INCLUDES ILLUS. 6,16 & 19) (UNIVERSAL SILVER) |
| 16 | GASKET-FIP |
| 17 | W11745278 Whirlpool Bracket |
| 18 | 2319301D Whirlpool Handle |
| 18 | 2319301W Whirlpool Handle Assembly |
| 19 | 2316410W Whirlpool Door Trim |
| 19 | ENDCAP, BOTTOM FC (APOLLO GREY) |
| 20 | TRIM, FC DOOR |
| 21 | TRIM, DOOR SHELF |
| 22 | 2319300D Whirlpool Handle Assembly |
| 22 | HANDLE, RC (WHITE) |
| 23 | 2319302W Whirlpool Handle Trim |
| 23 | 2319302D Whirlpool Handle Trim |
| 24 | Insert-Cap-Handle |
| 25 | WP489491 Whirlpool Refrigerator Screw |
