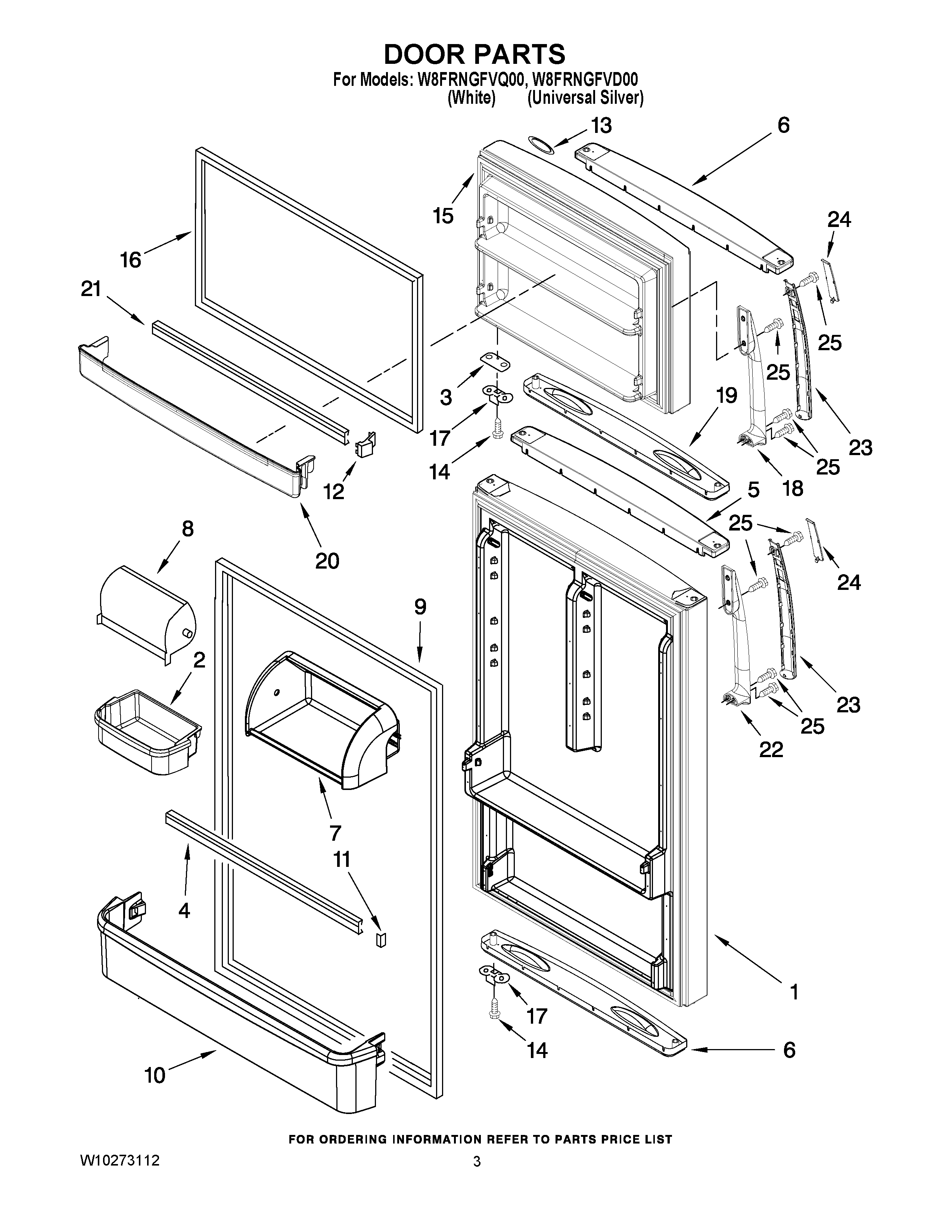

W8FRNGFVQ00 02 – DOOR PARTS

Products

Position	Product
1	REFRIGERATOR DOOR (INCLUDES ILLUS. 5,6 & 9) (UNIVERSAL SILVER)
1	REFRIGERATOR DOOR (INCLUDES ILLUS. 9) (WHITE)
2	BIN, DOOR
3	WP2258681W Whirlpool Refrigerator Shim
4	Trim, Door Shelf
5	ENDCAP, TOP RC (WHITE)
5	ENDCAP, TOP RC (APOLLO GREY)
6	ENDCAP (APOLLO GREY)
6	ENDCAP (WHITE)
7	2264477 Whirlpool Refrigerator Housing Assembly
8	DOOR, COMPARTMENT
9	WP2319264W Whirlpool Refrigerator FIP Gasket
10	WPW10468559 Whirlpool Refrigerator Clear Door Shelf Trim
11	ENDCAP-TRM
12	WP2156003 Whirlpool Refrigerator Door Shelf End Cap
13	WP2213265 Whirlpool Refrigerator Nameplate
14	SCREW
15	FREEZER DOOR (INCLUDES ILLUS. 16) (WHITE)
15	FREEZER DOOR (INCLUDES ILLUS. 6,16 & 19) (UNIVERSAL SILVER)
16	GASKET-FIP
17	W11745278 Whirlpool Bracket
18	2319301D Whirlpool Handle
18	2319301W Whirlpool Handle Assembly
19	2316410W Whirlpool Door Trim
19	ENDCAP, BOTTOM FC (APOLLO GREY)
20	TRIM, FC DOOR
21	TRIM, DOOR SHELF
22	2319300D Whirlpool Handle Assembly
22	HANDLE, RC (WHITE)
23	2319302W Whirlpool Handle Trim
23	2319302D Whirlpool Handle Trim
24	Insert-Cap-Handle
25	WP489491 Whirlpool Refrigerator Screw
