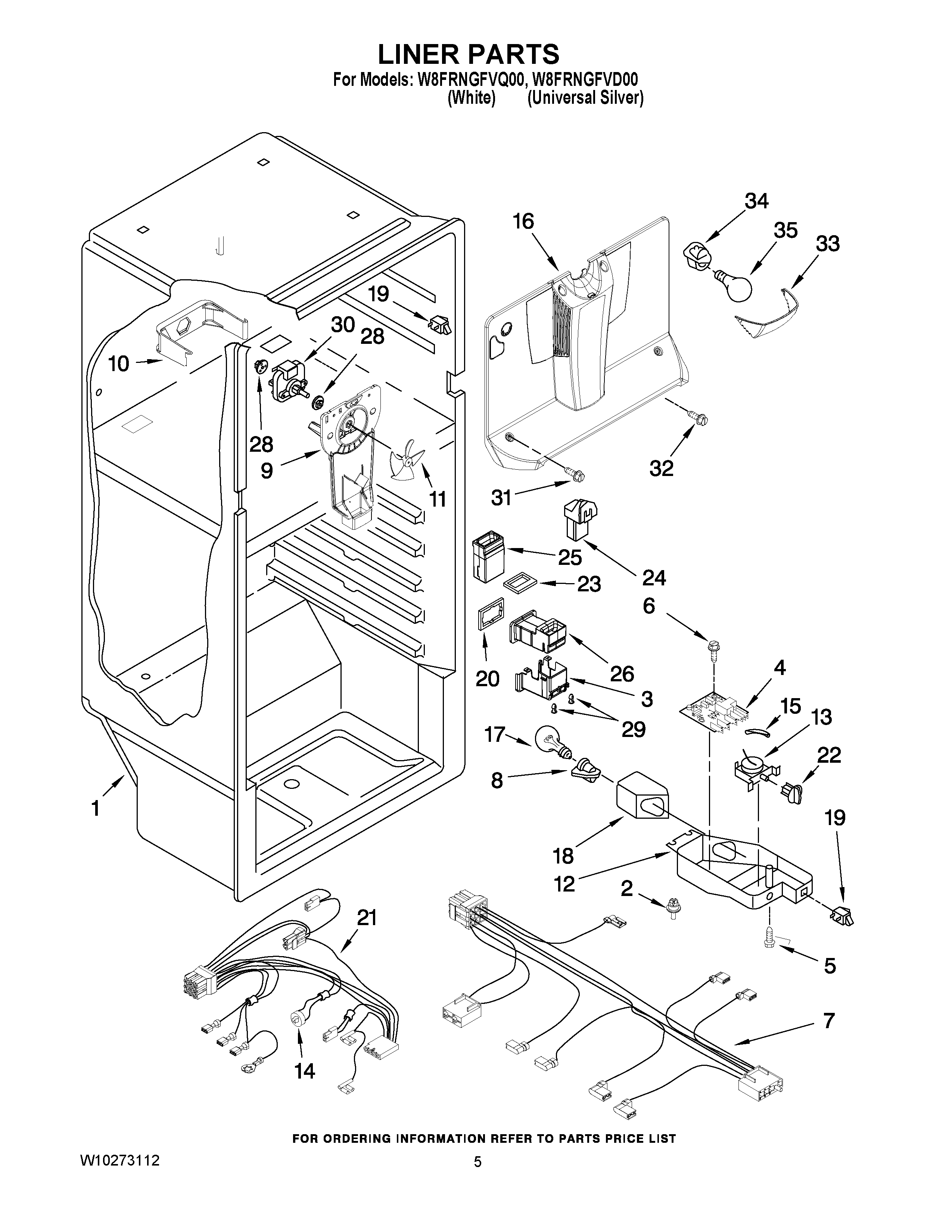

W8FRNGFVQ00 03 – LINER PARTS

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	939962 Whirlpool Refrigerator Rivet
3	2252837 Whirlpool Refrigerator Cover
4	4388931 Whirlpool Defrost Timer
5	WP489174 Whirlpool Refrigerator Screw
6	WP487353 Whirlpool Refrigerator Screw
7	Wire Assembly Control Box
8	4387478 Whirlpool Refrigerator Light Socket
9	FAN SUPPORT BRACKET
10	RETAINER, FAN MOTOR
11	WP2169142 Whirlpool Fan Blade
12	Control Box
13	WPW10511937 Whirlpool Thermostat Control
14	WPW10225581 Whirlpool Refrigerator Defrost Thermostat
15	WP2196003 Whirlpool Refrigerator Bar Riser
16	COVER, EVAPORATOR
17	W11679940 Whirlpool Refrigerator Light Bulb Assembly
18	W11034434 Whirlpool Refrigerator Light Lens
19	W11384469 Whirlpool Door Switch
20	GASKET, BODY AIR DIFFUSER
21	W10244329 Whirlpool Wire Harness
22	WP2202885 Whirlpool Refrigerator Thermal Knob
23	2263075 Whirlpool Refrigerator Gasket
24	Hood And Foil Assembly
25	AIR DUCT ASSEMBLY
26	2252831 Whirlpool Refrigerator Air Duct
28	WP2264462 Whirlpool Refrigerator Grommet
29	Rivet
30	WPW10189703 Whirlpool Refrigerator Evaporator Fan Motor
31	WP489474 Whirlpool Refrigerator Screw
32	SCREW
33	LIGHT LENS
34	W10545295 Whirlpool Refrigerator Socket
35	Light Bulb
