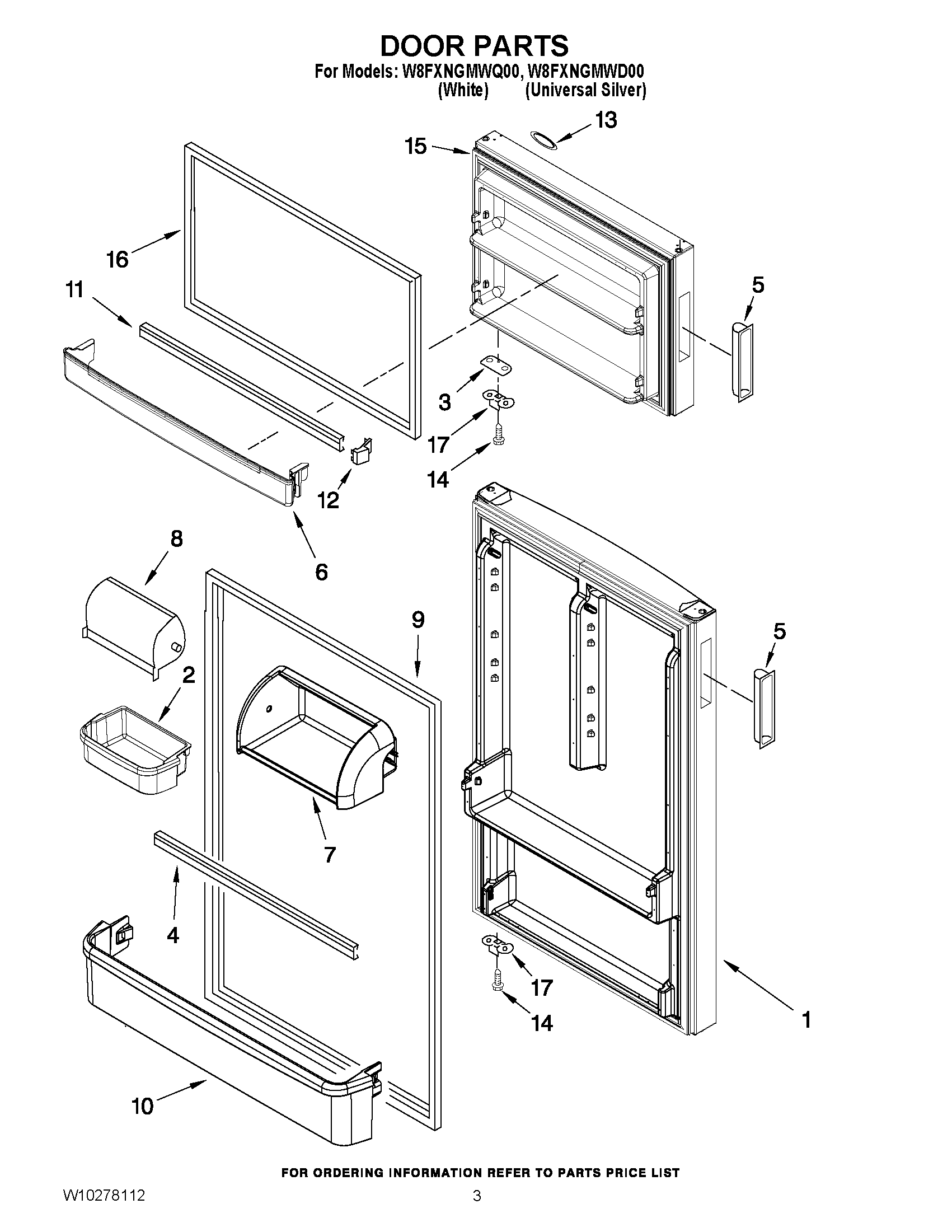

W8FXNGMWD00 02 – DOOR PARTS

Products

Position	Product
1	REFRIGERATOR DOOR (INCLUDES ILLUS. 9) (UNIVERSAL SILVER)
1	REFRIGERATOR DOOR (INCLUDES ILLUS. 9) (WHITE)
2	BIN, DOOR
3	WP2258681W Whirlpool Refrigerator Shim
4	WPW10234241 Whirlpool Door Shelf Trim
5	W10240002 Whirlpool Handle
5	W10352523 Whirlpool Refrigerator Handle
6	TRIM, FC DOOR
7	2264477 Whirlpool Refrigerator Housing Assembly
8	DOOR, COMPARTMENT
9	W11578847 Whirlpool Refrigerator FIP Gasket
9	WP2319264W Whirlpool Refrigerator FIP Gasket
10	WPW10468559 Whirlpool Refrigerator Clear Door Shelf Trim
11	TRIM, DOOR SHELF
12	WP2156003 Whirlpool Refrigerator Door Shelf End Cap
13	NAMEPLATE
14	SCREW
15	FREEZER DOOR (INCLUDES ILLUS. 16) (WHITE)
15	FREEZER DOOR (INCLUDES ILLUS. 16) (UNIVERSAL SILVER)
16	W11661186 Whirlpool Door Gasket
16	GASKET-FIP
17	W11745278 Whirlpool Bracket
