W8FXNGMWQ00 01 – CABINET PARTS

W8FXNGMWQ00 01 – CABINET PARTS

Written by

in

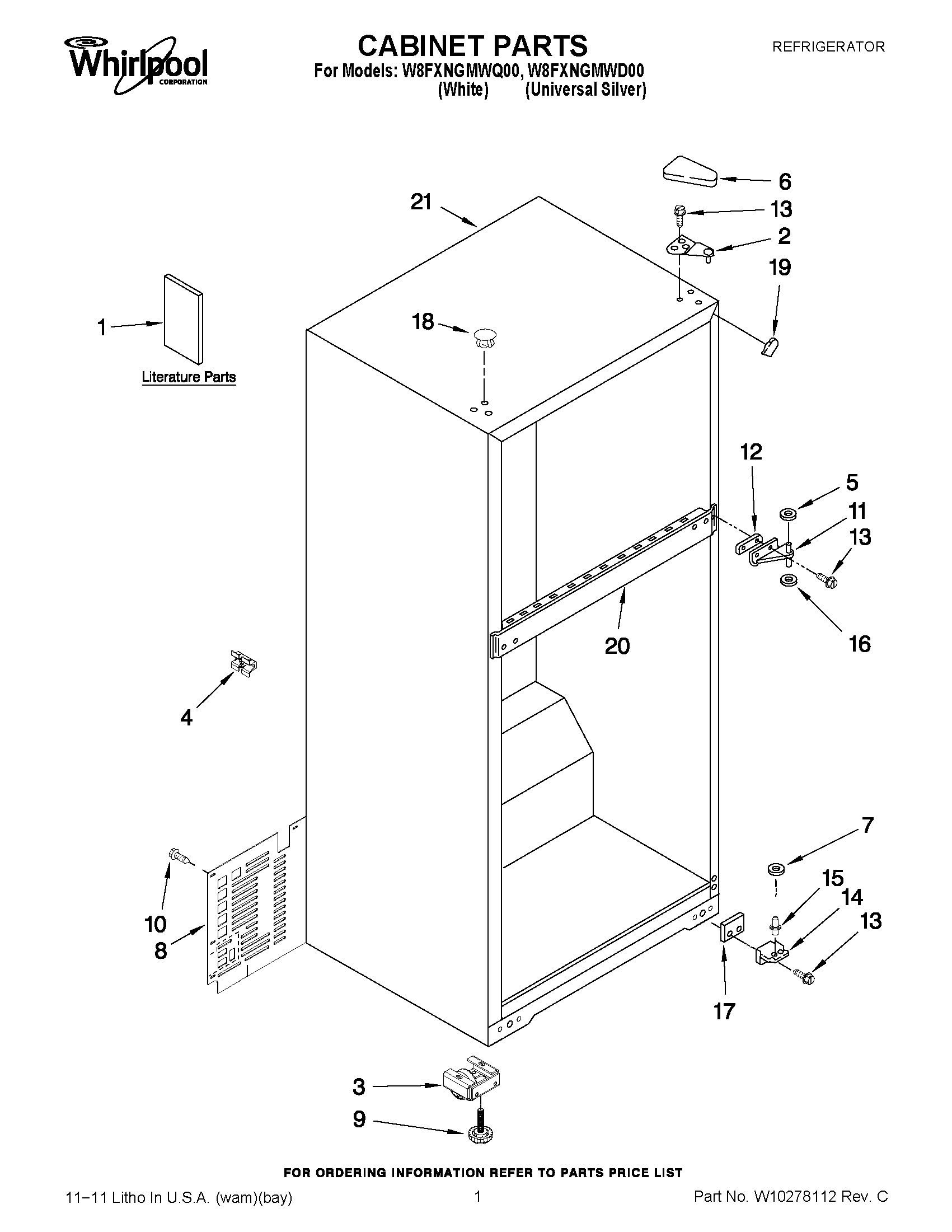

W8FXNGMWQ00 01 – CABINET PARTS

Products

PositionProduct
NIDO-IT-YOURSELF MANUAL, REF./ FZR.
1ENERGY GUIDE
1SERVICE & WIRING SHEET
1Use & Care Guide
2WP2261963 Whirlpool Refrigerator Door Hinge
3WPW10142530 Whirlpool Refrigerator Cabinet Roller
42266506 Whirlpool Refrigerator Spacer
5WP489467 Whirlpool Hinge Shim
62213360D Whirlpool Refrigerator Cover
6WP2213360 Whirlpool Refrigerator Cover
8WP2264132 Whirlpool Refrigerator Unit Cover
9WPW10133299 Whirlpool Refrigerator Screw
10WP489442 Whirlpool Refrigerator Screw
11WP2166037 Whirlpool Refrigerator Door Hinge
122166043 Whirlpool Refrigerator Shim
13WP489497 Whirlpool Screw
14WP2325482 Whirlpool Bottom Hinge
15WP2325483 Whirlpool Hinge Pin
16WP487576 Whirlpool Washer
17WP2201567 Whirlpool Hinge Shim
18HOLE PLUG (6) (UNIVERSAL SILVER)
18WP2151652 Whirlpool Refrigerator Button Plug
19W10859322 Whirlpool Refrigerator Filler
192166003D Whirlpool Refrigerator Filler
21CABINET (NOT A SERVICEABLE PART)
