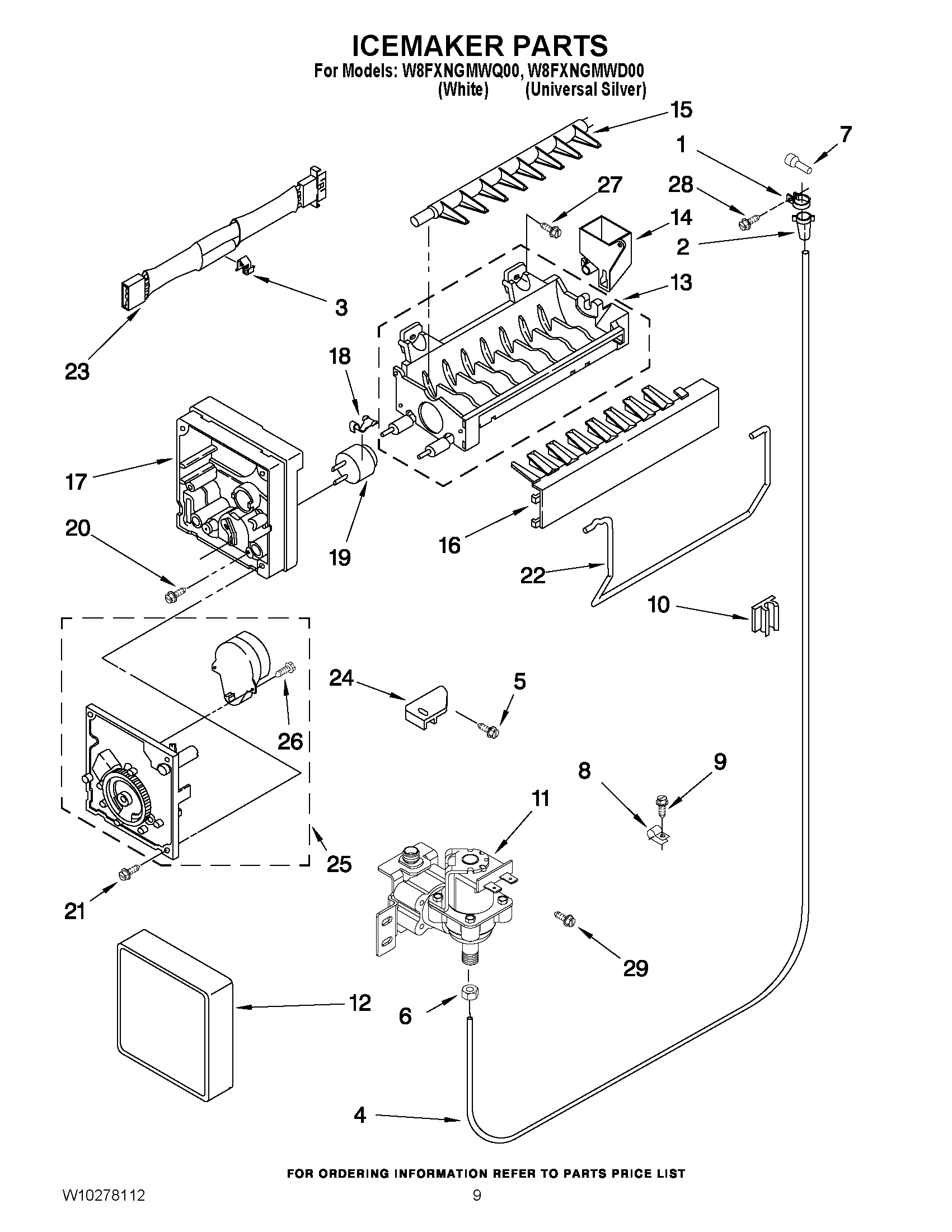

W8FXNGMWQ00 05 – ICEMAKER PARTS

W8FXNGMWQ00 05 – ICEMAKER PARTS

Written by

in

W8FXNGMWQ00 05 – ICEMAKER PARTS

Products

PositionProduct
1WP488878 Whirlpool Refrigerator Tube Clamp
24387491 Whirlpool Refrigerator Insert
3WP628379 Whirlpool Refrigerator Clip
4W10823511 Whirlpool Refrigerator Water Tube
5WP489478 Whirlpool Refrigerator Screw
6WP627018 Whirlpool Refrigerator Nut
7Tube, Water Inlet
8WP488366 Whirlpool Refrigerator Clamp
9WP488729 Whirlpool Refrigerator Door Screw
10W11501419 Whirlpool Refrigerator Clip
11VALVE-INLT
12WPW10289690 Whirlpool Ice Maker Cover
13WPW10190929 Whirlpool Refrigerator Ice Maker Mold
14W10122561 Whirlpool Refrigerator Cup Fill
15WP627843 Whirlpool Refrigerator Ejector Arm
16WPW10122563 Whirlpool Refrigerator Stripper Arm
17WP2195914 Whirlpool Refrigerator Ice Maker Housing
18WP2315522 Whirlpool Refrigerator Clip
19WP627985 Whirlpool Icemaker Cycling Thermostat
208533917 Whirlpool Refrigerator Screw
21WP681249 Whirlpool Screw Assembly
22WP627792 Whirlpool Refrigerator Shut Off Arm
23W10309399 Whirlpool Refrigerator Wire Harness
24W11500948 Whirlpool Refrigerator Bracket
258201515 Whirlpool Refrigerator Motor and Gear Module Kit
26489136 Whirlpool Refrigerator Screw
27WP488163 Whirlpool Refrigerator Screw
28WP488787 Whirlpool Refrigerator Screw
29WP489442 Whirlpool Refrigerator Screw
1004317943 Whirlpool Refrigerator Ice Maker Assembly
