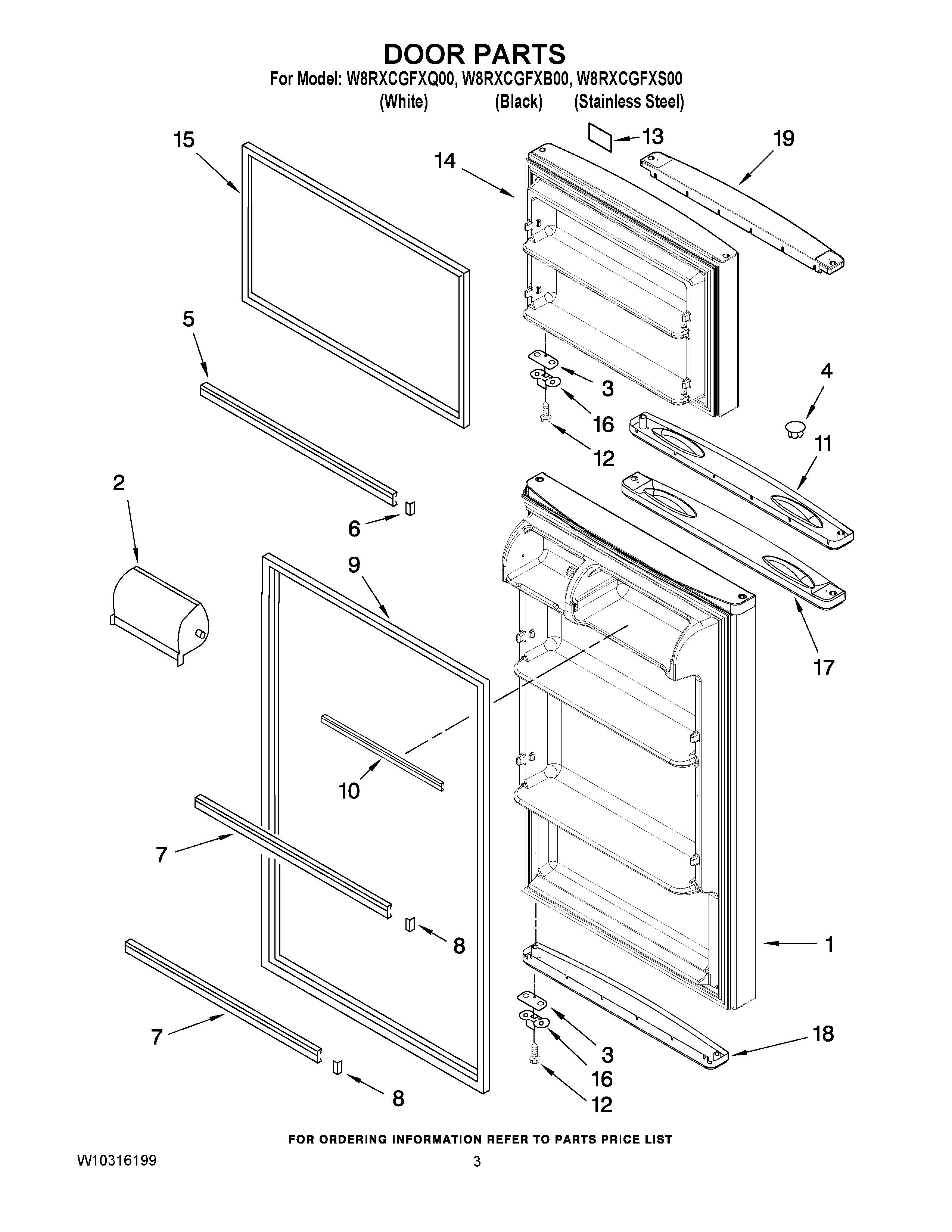

W8RXCGFXB00 02 – DOOR PARTS

W8RXCGFXB00 02 – DOOR PARTS

Written by

in

W8RXCGFXB00 02 – DOOR PARTS

Products

PositionProduct
1REFRIGERATOR DOOR (INCLUDES ILLUS. 9 & MOLDED DOOR HANDLE (WHITE)
1REFRIGERATOR DOOR (INCLUDES ILLUS. 9 & MOLDED DOOR HANDLE (STAINLESS)
1REFRIGERATOR DOOR (INCLUDES ILLUS. 9 & MOLDED DOOR HANDLE (BLACK)
2DOOR-COMP
3WP2258681W Whirlpool Refrigerator Shim
32258681B Whirlpool Refrigerator Shim
4WP2212651 Whirlpool Refrigerator Button Plug
4WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
5WP2266727 Whirlpool Refrigerator Door Trim
6WP2156003 Whirlpool Refrigerator Door Shelf End Cap
7WP2266738 Whirlpool Refrigerator Door Trim
8ENDCAP
9WP2319264B Whirlpool Door Gasket
9WP2319264T Whirlpool Door Gasket
10W11129820 Whirlpool Refrigerator Door Trim
11ENDCAP, BOTTOM (WHITE)
11ENDCAP, BOTTOM (BLACK)
12SCREW
13WP2213265 Whirlpool Refrigerator Nameplate
14LW10267762 Whirlpool Refrigerator DOR-FIP SS
14FREEZER DOOR (INCLUDES ILLUS. 15 & MOLDED DOOR HANDLE) (BLACK)
14FREEZER DOOR (INCLUDES ILLUS. 15 & MOLDED DOOR HANDLE) (WHITE)
15WP2319263B Whirlpool Refrigerator Black Door Gasket
15WP2319263T Whirlpool Refrigerator FIP Gasket
16W11745278 Whirlpool Bracket
17Endcap, Handle (Refrigerator)
172265645W Whirlpool Refrigerator Handle
18ENDCAP, BOTTOM (WHITE)
18ENDCAP, BOTTOM (BLACK)
192252863 Whirlpool Refrigerator Door Trim
192265644W Whirlpool Refrigerator Door Trim
