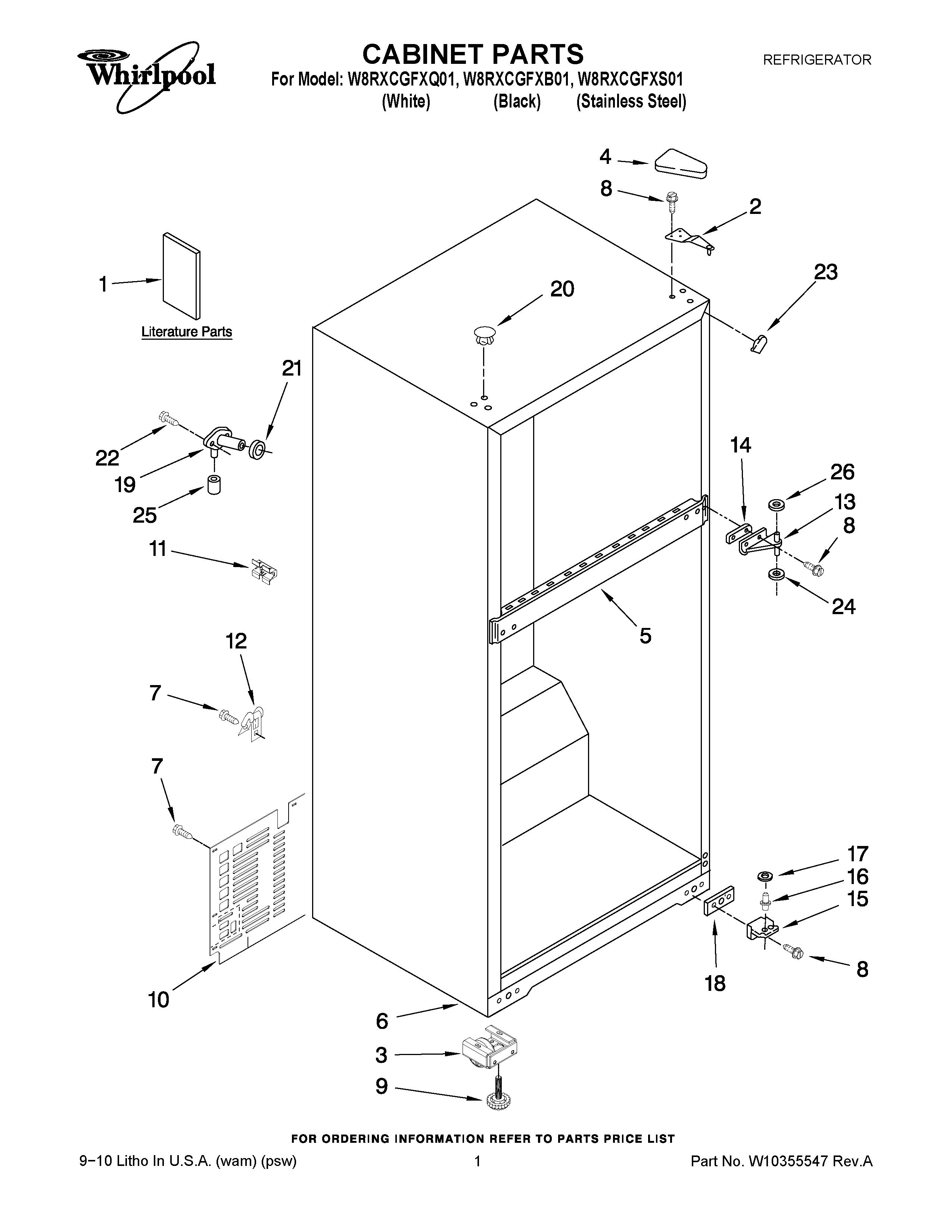

W8RXCGFXB01 01 – CABINET PARTS

Products

Position	Product
1	Use & Care Guide
1	DO-IT-YOURSELF MANUAL, REF./ FZR.
1	ENERGY LABEL
1	SERVICE & WIRING SHEET
2	WP2261963 Whirlpool Refrigerator Door Hinge
3	WPW10142530 Whirlpool Refrigerator Cabinet Roller
4	WP2213363 Whirlpool Refrigerator Cover
4	WP2213360 Whirlpool Refrigerator Cover
5	CENTER RAIL (NOT A SERVICEABLE PART)
6	Cabinet (Not A Serviceable Part)
7	WP489442 Whirlpool Refrigerator Screw
8	WP489497 Whirlpool Screw
9	WPW10133299 Whirlpool Refrigerator Screw
10	WP2264132 Whirlpool Refrigerator Unit Cover
11	2266506 Whirlpool Refrigerator Spacer
12	549193 Whirlpool Refrigerator Power Clamp
13	WP2166037 Whirlpool Refrigerator Door Hinge
14	2166043 Whirlpool Refrigerator Shim
14	2215385 Whirlpool Refrigerator Shim
15	WP2325482 Whirlpool Bottom Hinge
16	WP2325483 Whirlpool Hinge Pin
18	WP2201567 Whirlpool Hinge Shim
19	WP2196157 Whirlpool Fill Tube
20	WP2151652 Whirlpool Refrigerator Button Plug
20	WP2183998 Whirlpool Refrigerator Button Plug
21	WP1106508 Whirlpool Refrigerator Gasket
22	WP488729 Whirlpool Refrigerator Door Screw
23	W11500943 Whirlpool Refrigerator Filler
23	W10859322 Whirlpool Refrigerator Filler
24	WP487576 Whirlpool Washer
25	WP487996 Whirlpool Refrigerator Cap Tube
26	WP489467 Whirlpool Hinge Shim
