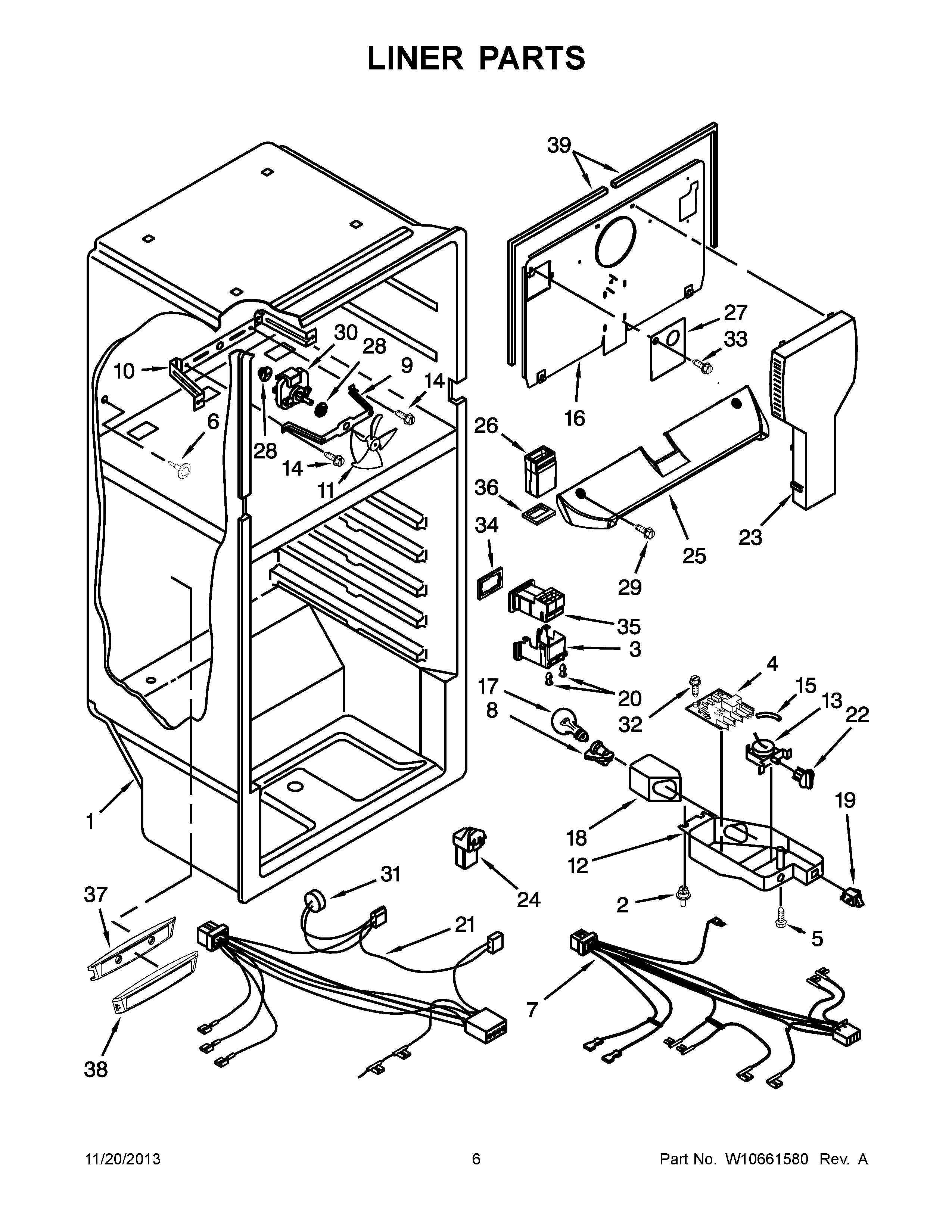

W8RXCGFXB03 04 – LINER PARTS
Written by
in
W8RXCGFXB03 04 – LINER PARTS
Products
Position
Product
1
CABINET (NOT A SERVICEABLE PART)
2
939962 Whirlpool Refrigerator Rivet
3
2252837 Whirlpool Refrigerator Cover
4
4388931 Whirlpool Defrost Timer
5
WP489174 Whirlpool Refrigerator Screw
6
WP941839 Whirlpool Refrigerator Button Plug
7
2265930 Whirlpool Refrigerator Wire Harness
8
4387478 Whirlpool Refrigerator Light Socket
9
WPW10180172 Whirlpool Refrigerator Bracket
10
Fan Mounting Bracket
11
Fan Blade
12
2263083 Whirlpool Refrigerator Control Box
13
WPW10511937 Whirlpool Thermostat Control
14
WP489399 Whirlpool Refrigerator Screw
15
WP2196003 Whirlpool Refrigerator Bar Riser
16
WP2215193 Whirlpool Evaporator Cover
17
RANGE ONLY 40W 120V APPL BULB
18
W11034434 Whirlpool Refrigerator Light Lens
19
W11384469 Whirlpool Door Switch
20
Rivet
21
W10183127 Whirlpool Refrigerator Wire Harness
22
WP2202885 Whirlpool Refrigerator Thermal Knob
23
9790408 Whirlpool Refrigerator Air Tower
24
Hood And Foil Assembly
25
Cover, Air Return
26
2252831 Whirlpool Refrigerator Air Duct
27
WP2217784 Whirlpool Refrigerator Cover
28
WP2264462 Whirlpool Refrigerator Grommet
29
WP489474 Whirlpool Refrigerator Screw
30
WP2315539 Whirlpool Refrigerator Evaporator Fan Motor
31
WPW10225581 Whirlpool Refrigerator Defrost Thermostat
32
WP487353 Whirlpool Refrigerator Screw
33
WP489478 Whirlpool Refrigerator Screw
34
GASKET, BODY AIR DIFFUSER
35
WPW10355265 Whirlpool Refrigerator Diffuser
36
2263075 Whirlpool Refrigerator Gasket
37
INSULATION
38
GRILL
39
GASKET, EVAP COVER
←
