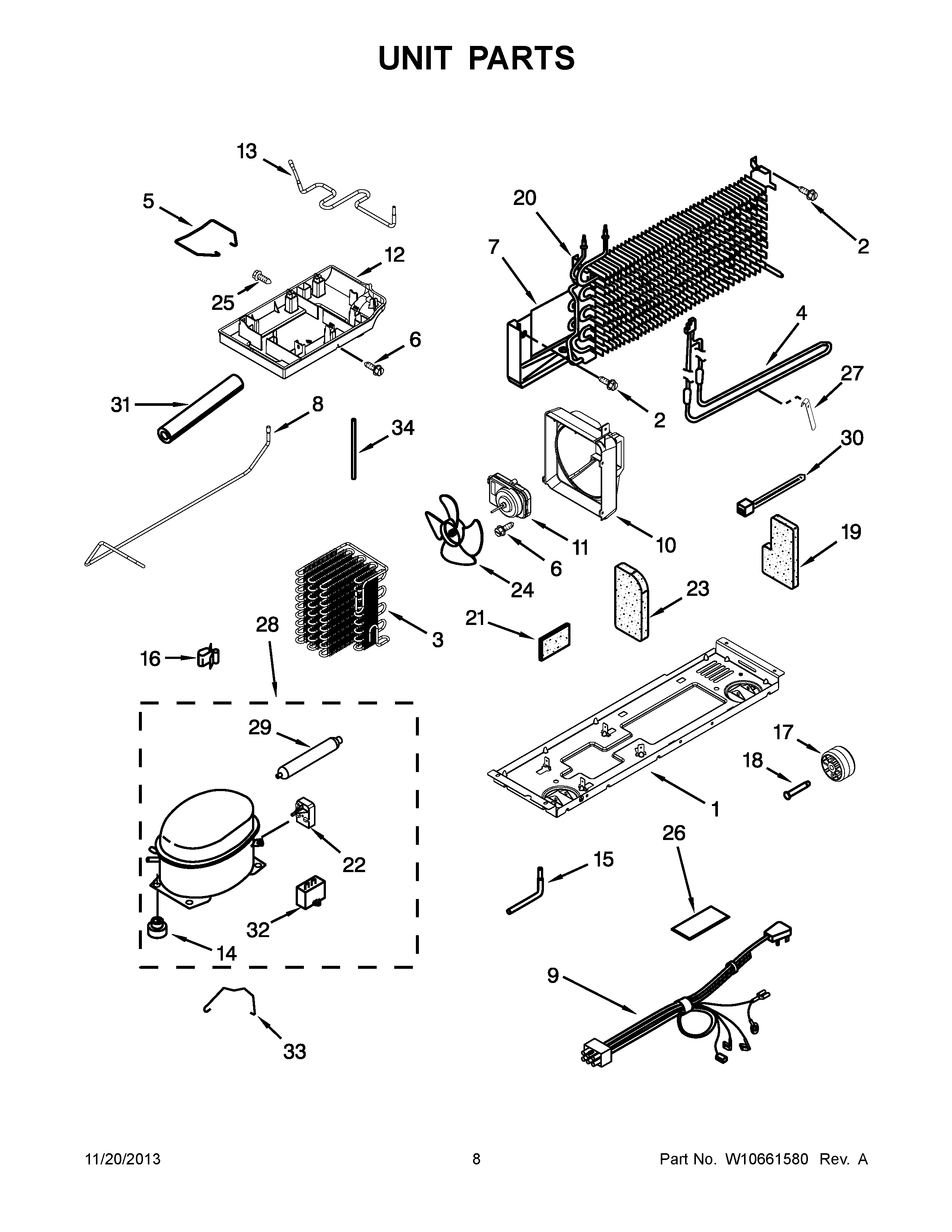

W8RXCGFXB03 05 – UNIT PARTS

W8RXCGFXB03 05 – UNIT PARTS

Written by

in

W8RXCGFXB03 05 – UNIT PARTS

Products

Position	Product
NI	VALVE, ACCESS (5/8“)
NI	CABINET (NOT A SERVICEABLE PART)
NI	VALVE, ACCESS (1/2“)
NI	WP978025 Whirlpool Refrigerator Valve
NI	978030 Whirlpool Refrigerator Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	978026 Whirlpool Refrigerator Primary Valve
NI	876764 Whirlpool Refrigerator Primary Valve
1	W10573847 Whirlpool Refrigerator Support
2	WP489442 Whirlpool Refrigerator Screw
3	CONDENSER
4	WP2263749 Whirlpool Defrost Heater Assembly
5	2264835 Whirlpool Clip
6	WPW10171469 Whirlpool Refrigerator Screw
7	Heat Shield
8	W10585747 Whirlpool Tube
9	W10839396 Whirlpool Refrigerator Wire Harness
10	WPW10570380 Whirlpool Refrigerator Air Baffle
11	W11578915 Whirlpool Condenser Motor
12	W10565417 Whirlpool Refrigerator Evaporator Tray
13	W10585741 Whirlpool Tube
14	WPW10169124 Whirlpool Refrigerator Grommet
15	W11676464 Whirlpool Tube
16	W10812038 Whirlpool Refrigerator Clip
17	WPW10475495 Whirlpool Roller Assembly
18	WP2264756 Whirlpool Refrigerator Rivet
19	8201619 Whirlpool Refrigerator Support Assembly
20	WP2263920 Whirlpool Refrigerator Evaporator
21	W11553819 Whirlpool Refrigerator Insulation
22	WPW10399283 Whirlpool Refrigerator Start Device
24	2264129 Whirlpool Refrigerator Fan Blade
25	WP489489 Whirlpool Screw
26	2266360 Whirlpool Shield Assembly
27	W10856574 Whirlpool Refrigerator Heat Probe
28	W10822653 Whirlpool Refrigerator Compressor
29	W10843121 Whirlpool Refrigerator Tube
30	WPW10339879 Whirlpool Wire Tie
31	2264838 Whirlpool Refrigerator Sleeve
32	WP65889-4 Whirlpool Refrigerator Capacitor
33	2212996 Whirlpool Refrigerator Retainer
34	W10582029 Whirlpool Refrigerator Extension
