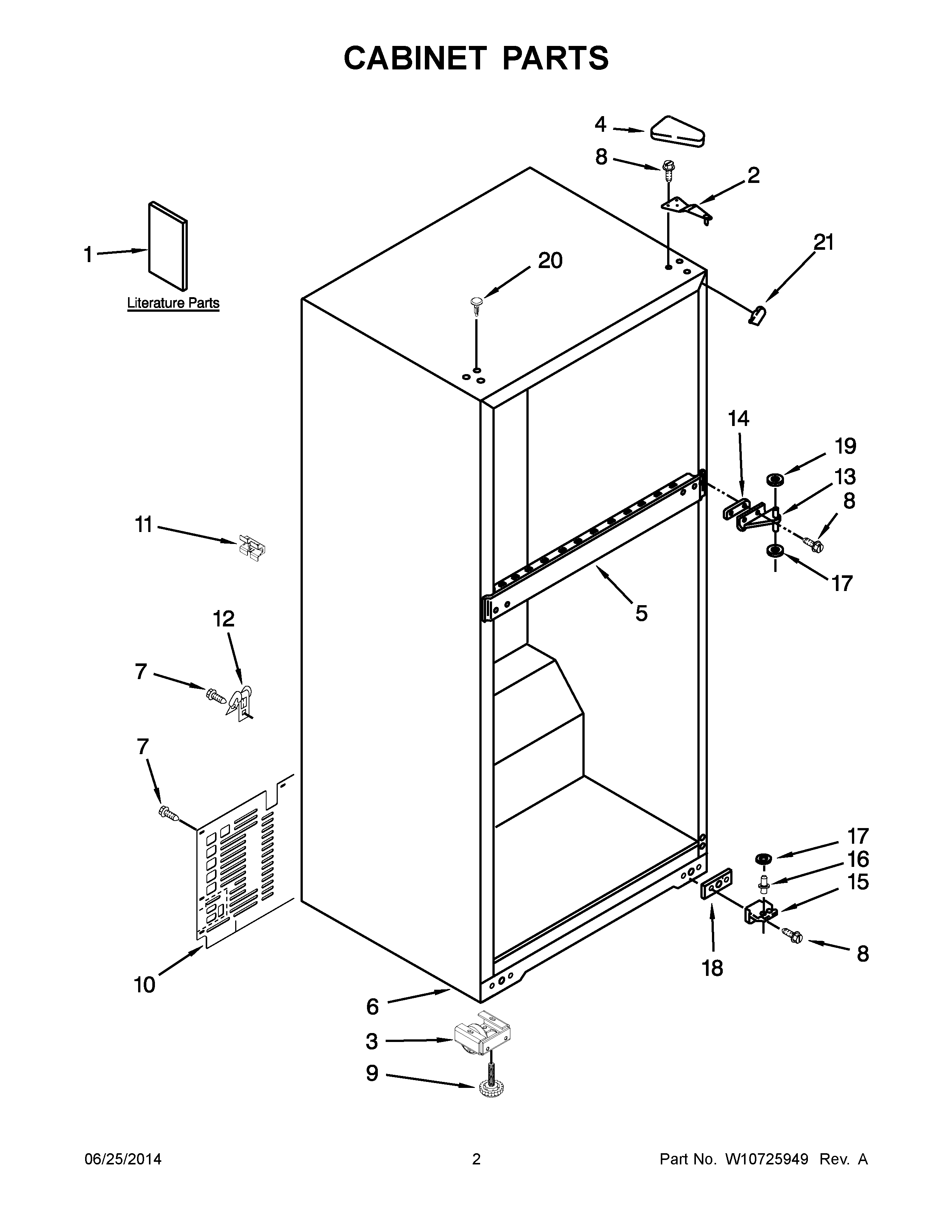

W8RXCGFXB04 02 – CABINET PARTS

Products

Position	Product
1	SERVICE & WIRING SHEET
1	Use & Care Guide
1	ENERGY LABEL
2	WP2261963 Whirlpool Refrigerator Door Hinge
3	WPW10142530 Whirlpool Refrigerator Cabinet Roller
4	WP2213363 Whirlpool Refrigerator Cover
4	WP2213360 Whirlpool Refrigerator Cover
6	CABINET (NOT A SERVICEABLE PART)
7	WP489442 Whirlpool Refrigerator Screw
8	WP489497 Whirlpool Screw
9	WPW10133299 Whirlpool Refrigerator Screw
10	W10570558 Whirlpool Refrigerator Cover Assembly
11	2266506 Whirlpool Refrigerator Spacer
12	549193 Whirlpool Refrigerator Power Clamp
13	WP2166037 Whirlpool Refrigerator Door Hinge
14	2166043 Whirlpool Refrigerator Shim
14	2215385 Whirlpool Refrigerator Shim
15	WP2325482 Whirlpool Bottom Hinge
16	WP2325483 Whirlpool Hinge Pin
17	WP487576 Whirlpool Washer
18	WP2201567 Whirlpool Hinge Shim
19	WP489467 Whirlpool Hinge Shim
20	WPW10520305 Whirlpool Refrigerator Button Plug
20	WPW10520304 Whirlpool Refrigerator Button Plug
21	W11500943 Whirlpool Refrigerator Filler
21	W10859322 Whirlpool Refrigerator Filler
