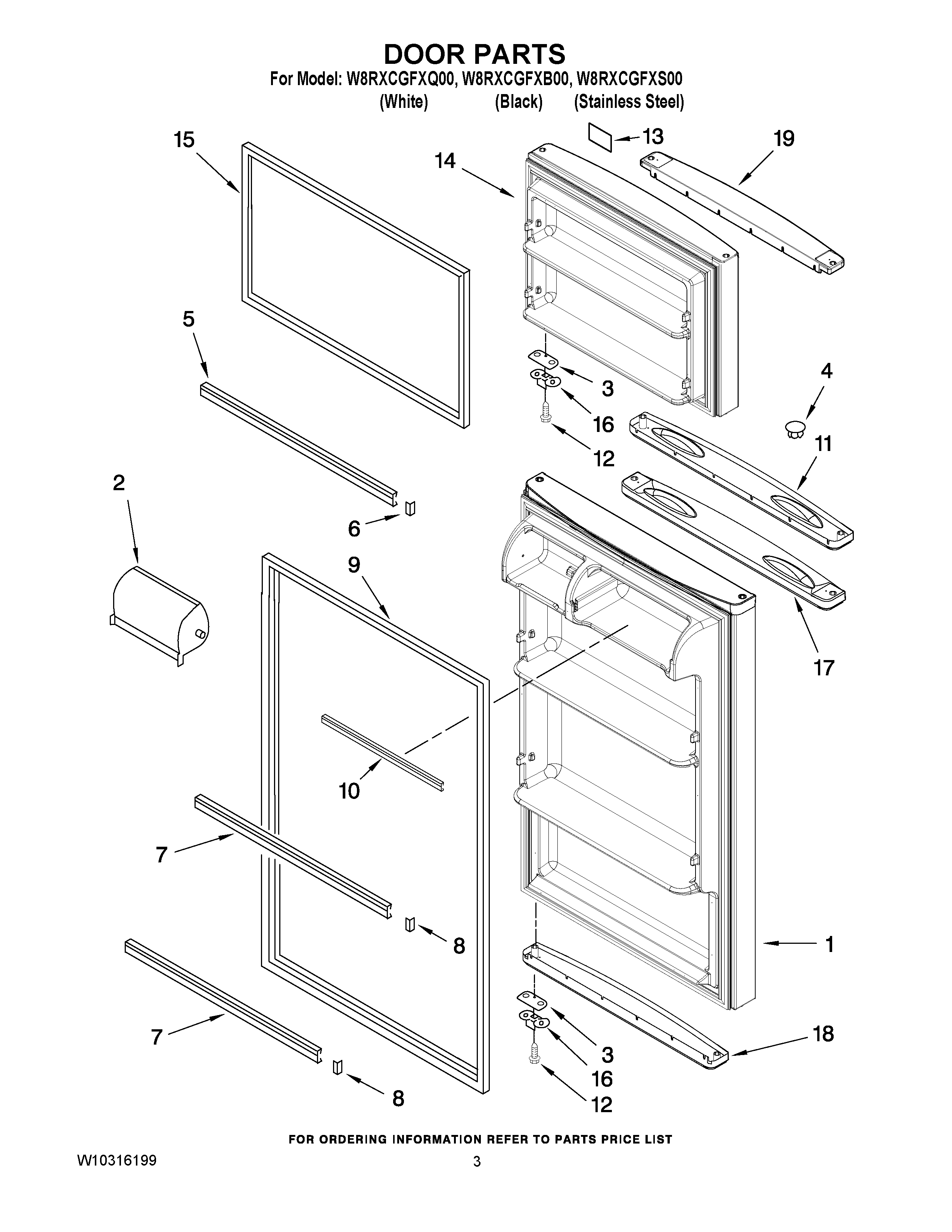

W8RXCGFXQ00 02 – DOOR PARTS

Products

Position	Product
1	REFRIGERATOR DOOR (INCLUDES ILLUS. 9 & MOLDED DOOR HANDLE (WHITE)
1	REFRIGERATOR DOOR (INCLUDES ILLUS. 9 & MOLDED DOOR HANDLE (STAINLESS)
1	REFRIGERATOR DOOR (INCLUDES ILLUS. 9 & MOLDED DOOR HANDLE (BLACK)
2	DOOR-COMP
3	WP2258681W Whirlpool Refrigerator Shim
3	2258681B Whirlpool Refrigerator Shim
4	WP2212651 Whirlpool Refrigerator Button Plug
4	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
5	WP2266727 Whirlpool Refrigerator Door Trim
6	WP2156003 Whirlpool Refrigerator Door Shelf End Cap
7	WP2266738 Whirlpool Refrigerator Door Trim
8	ENDCAP
9	WP2319264B Whirlpool Door Gasket
9	WP2319264T Whirlpool Door Gasket
10	W11129820 Whirlpool Refrigerator Door Trim
11	ENDCAP, BOTTOM (WHITE)
11	ENDCAP, BOTTOM (BLACK)
12	SCREW
13	WP2213265 Whirlpool Refrigerator Nameplate
14	LW10267762 Whirlpool Refrigerator DOR-FIP SS
14	FREEZER DOOR (INCLUDES ILLUS. 15 & MOLDED DOOR HANDLE) (BLACK)
14	FREEZER DOOR (INCLUDES ILLUS. 15 & MOLDED DOOR HANDLE) (WHITE)
15	WP2319263B Whirlpool Refrigerator Black Door Gasket
15	WP2319263T Whirlpool Refrigerator FIP Gasket
16	W11745278 Whirlpool Bracket
17	Endcap, Handle (Refrigerator)
17	2265645W Whirlpool Refrigerator Handle
18	ENDCAP, BOTTOM (WHITE)
18	ENDCAP, BOTTOM (BLACK)
19	2252863 Whirlpool Refrigerator Door Trim
19	2265644W Whirlpool Refrigerator Door Trim
