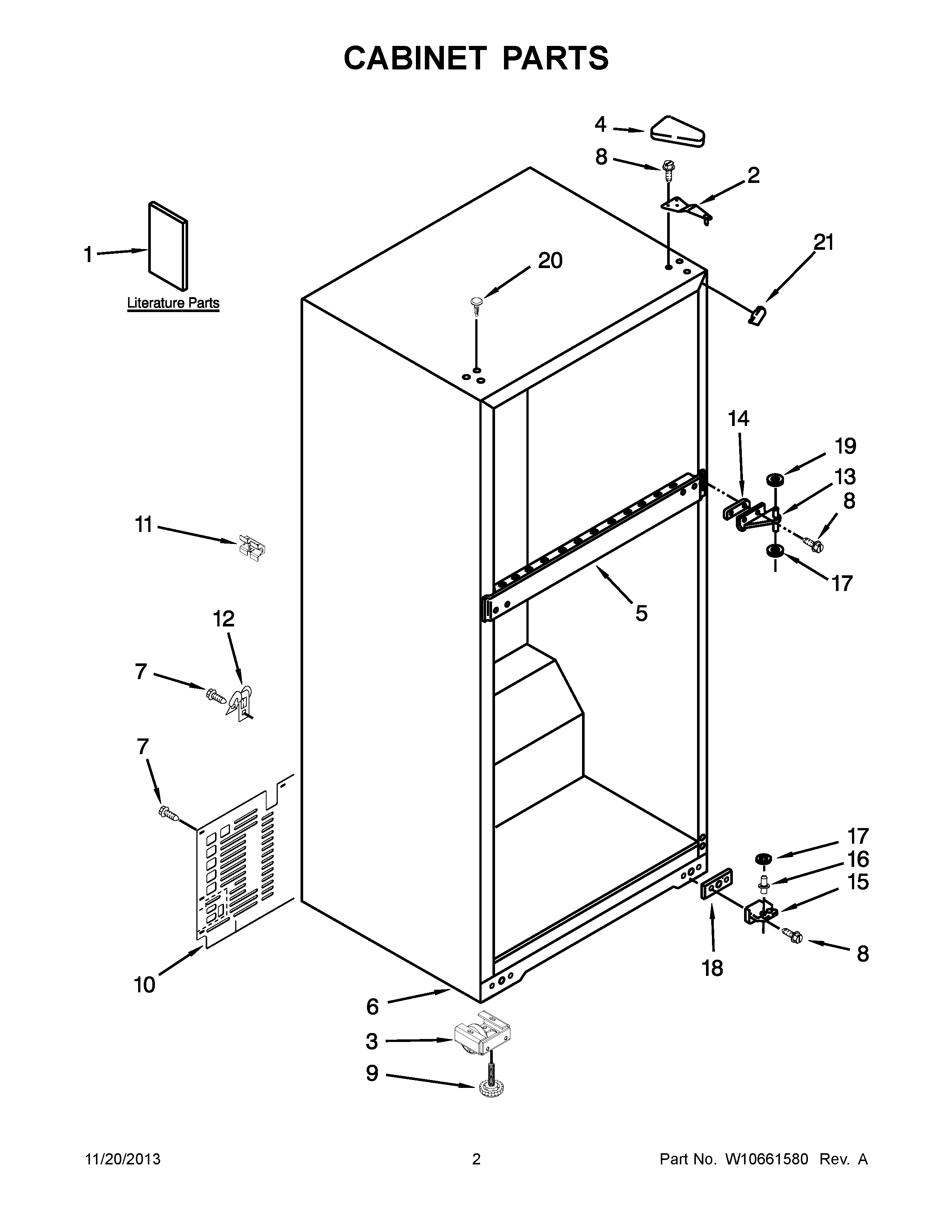

W8RXCGFXS03 02 – CABINET PARTSadmin2025-04-26T11:05:58+00:00W8RXCGFXS03 02 – CABINET PARTS ProductsPositionProduct1ENERGY LABEL1SERVICE & WIRING SHEET1Use & Care Guide1DO-IT-YOURSELF MANUAL, REF./ FZR.2WP2261963 Whirlpool Refrigerator Door Hinge3WPW10142530 Whirlpool Refrigerator Cabinet Roller4WP2213363 Whirlpool Refrigerator Cover4WP2213360 Whirlpool Refrigerator Cover6CABINET (NOT A SERVICEABLE PART)7WP489442 Whirlpool Refrigerator Screw8WP489497 Whirlpool Screw9WPW10133299 Whirlpool Refrigerator Screw10W10570558 Whirlpool Refrigerator Cover Assembly112266506 Whirlpool Refrigerator Spacer12549193 Whirlpool Refrigerator Power Clamp13WP2166037 Whirlpool Refrigerator Door Hinge142166043 Whirlpool Refrigerator Shim142215385 Whirlpool Refrigerator Shim15WP2325482 Whirlpool Bottom Hinge16WP2325483 Whirlpool Hinge Pin17WP487576 Whirlpool Washer18WP2201567 Whirlpool Hinge Shim19WP489467 Whirlpool Hinge Shim20WPW10520304 Whirlpool Refrigerator Button Plug20WPW10520305 Whirlpool Refrigerator Button Plug21W10859322 Whirlpool Refrigerator Filler21W11500943 Whirlpool Refrigerator Filler
