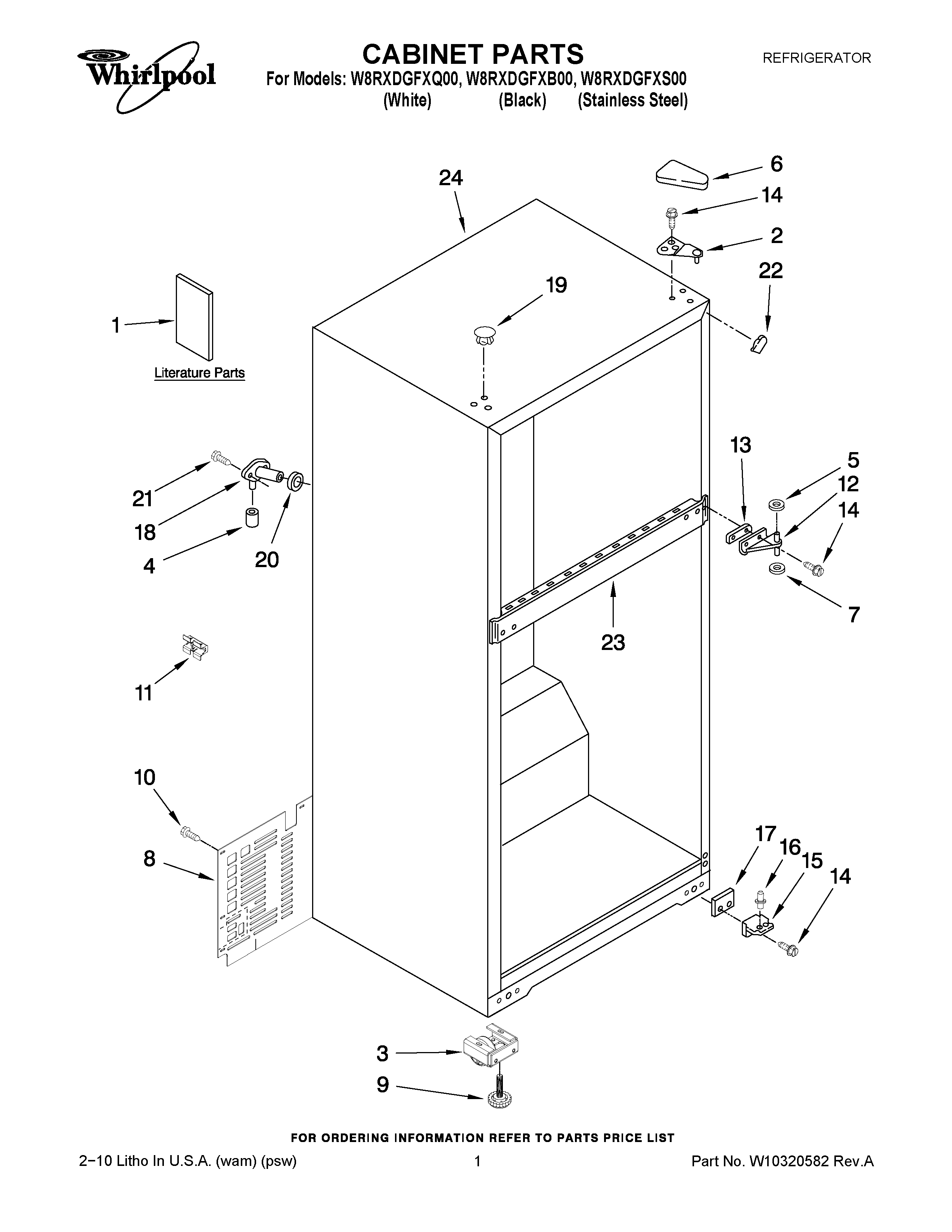

W8RXDGFXQ00 01 – CABINET PARTS

W8RXDGFXQ00 01 – CABINET PARTS

Written by

in

W8RXDGFXQ00 01 – CABINET PARTS

Products

PositionProduct
1Service & Wiring Sheet
1Use & Care Guide
1DO-IT-YOURSELF MANUAL, REF./ FZR.
1ENERGY GUIDE
2WP2261963 Whirlpool Refrigerator Door Hinge
3WPW10142530 Whirlpool Refrigerator Cabinet Roller
4WP487996 Whirlpool Refrigerator Cap Tube
5WP489467 Whirlpool Hinge Shim
6WP2213360 Whirlpool Refrigerator Cover
6WP2213363 Whirlpool Refrigerator Cover
7WP487576 Whirlpool Washer
8WP2264132 Whirlpool Refrigerator Unit Cover
9WPW10133299 Whirlpool Refrigerator Screw
10WP489442 Whirlpool Refrigerator Screw
112266506 Whirlpool Refrigerator Spacer
12WP2166037 Whirlpool Refrigerator Door Hinge
132166043 Whirlpool Refrigerator Shim
132215385 Whirlpool Refrigerator Shim
14WP489497 Whirlpool Screw
15WP2325482 Whirlpool Bottom Hinge
16WP2325483 Whirlpool Hinge Pin
17WP2201567 Whirlpool Hinge Shim
18WP2196157 Whirlpool Fill Tube
19WP2183998 Whirlpool Refrigerator Button Plug
19WP2151652 Whirlpool Refrigerator Button Plug
20WP1106508 Whirlpool Refrigerator Gasket
21WP488729 Whirlpool Refrigerator Door Screw
22W10859322 Whirlpool Refrigerator Filler
22W11500943 Whirlpool Refrigerator Filler
24CABINET (NOT A SERVICEABLE PART)
