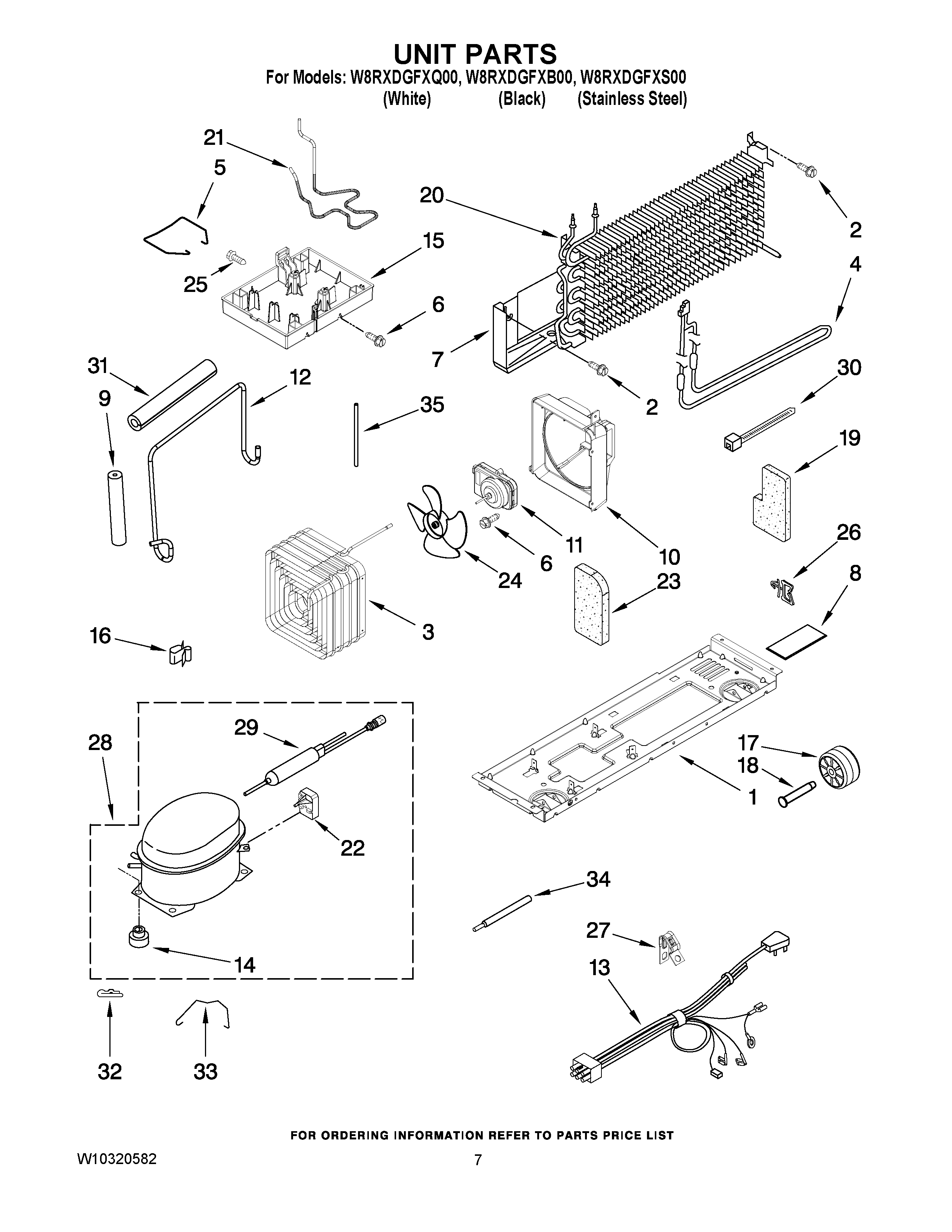

W8RXDGFXQ00 04 – UNIT PARTS

Products

Position	Product
NI	VALVE, ACCESS (1/2“)
NI	CABINET (NOT A SERVICEABLE PART)
NI	WP978025 Whirlpool Refrigerator Valve
NI	978030 Whirlpool Refrigerator Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	978026 Whirlpool Refrigerator Primary Valve
NI	876764 Whirlpool Refrigerator Primary Valve
NI	VALVE, ACCESS (5/8“)
1	WPW10222450 Whirlpool Refrigerator Support
2	WP489442 Whirlpool Refrigerator Screw
3	Condenser
4	WP2263749 Whirlpool Defrost Heater Assembly
6	WPW10171469 Whirlpool Refrigerator Screw
7	Heat Shield
8	2266360 Whirlpool Shield Assembly
9	SLEEVE
10	WP2263929 Whirlpool Refrigerator Air Baffle
11	W11578915 Whirlpool Condenser Motor
12	W10209727 Whirlpool Refrigerator Extension Tube
13	WIRE ASSY. UNIT
14	876811 Whirlpool Grommet
15	WP2263928 Whirlpool Refrigerator Evaporator Tray
16	W10812038 Whirlpool Refrigerator Clip
17	WPW10475495 Whirlpool Roller Assembly
18	WP2264756 Whirlpool Refrigerator Rivet
19	8201619 Whirlpool Refrigerator Support Assembly
20	WP2263920 Whirlpool Refrigerator Evaporator
21	W10209728 Whirlpool Tube
22	WPW10233421 Whirlpool Refrigerator Inverter Box
24	2264129 Whirlpool Refrigerator Fan Blade
25	WP489489 Whirlpool Screw
26	CLIP, HARNESS
27	549193 Whirlpool Refrigerator Power Clamp
28	COMPRESSOR (INCLUDES ITEM 14, 22, & 29)
29	W10843121 Whirlpool Refrigerator Tube
29	WPW10143759 Whirlpool Dryer Filter
30	WPW10339879 Whirlpool Wire Tie
31	2264838 Whirlpool Refrigerator Sleeve
32	Clip, Compressor
33	2264835 Whirlpool Clip
34	W11661102 Whirlpool Tube
35	2264278 Whirlpool Refrigerator Extension
