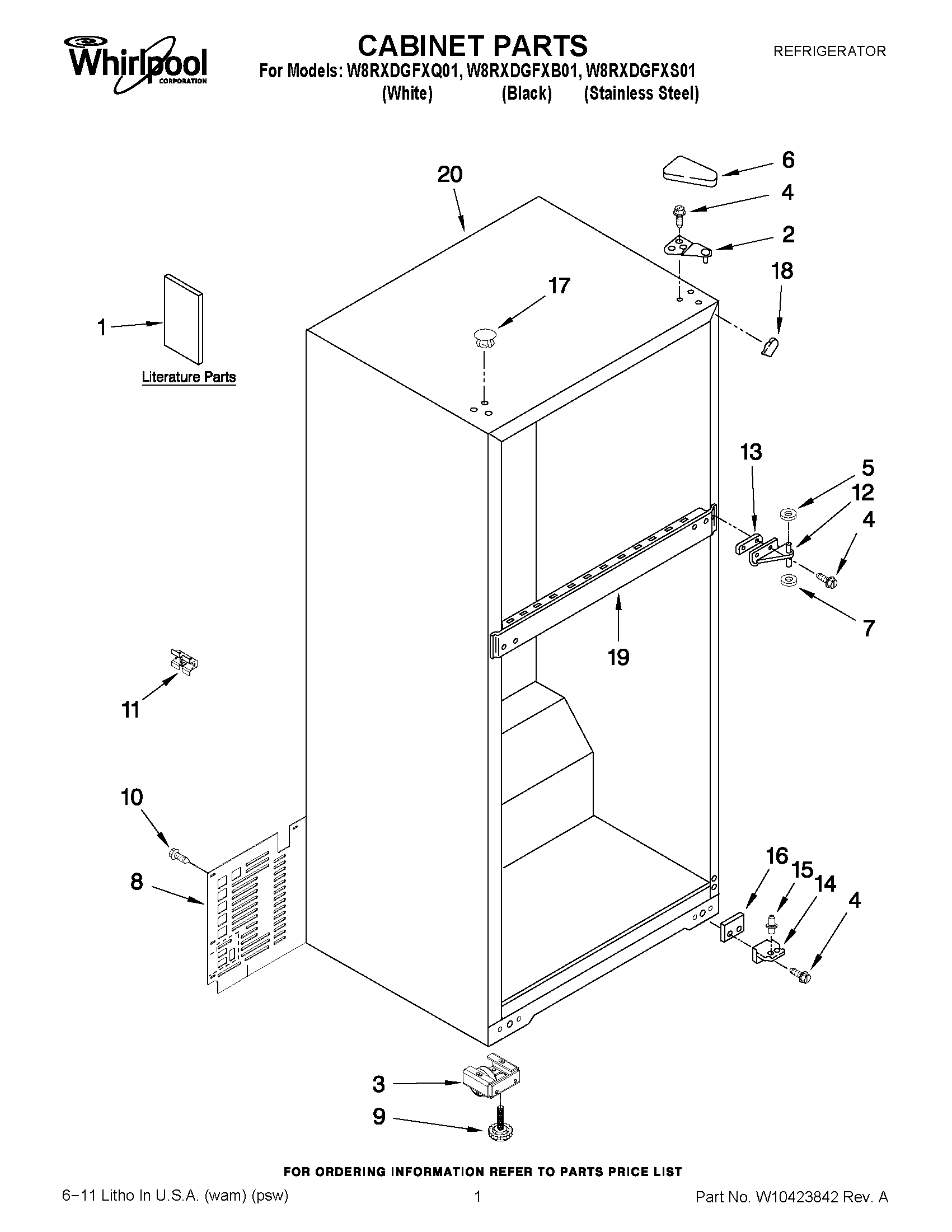

W8RXDGFXS01 01 – CABINET PARTS

W8RXDGFXS01 01 – CABINET PARTS

Written by

in

W8RXDGFXS01 01 – CABINET PARTS

Products

PositionProduct
1SERVICE & WIRING SHEET
1ENERGY GUIDE
1Use & Care Guide
1DO-IT-YOURSELF MANUAL, REF./ FZR.
2WP2261963 Whirlpool Refrigerator Door Hinge
3WPW10142530 Whirlpool Refrigerator Cabinet Roller
4WP489497 Whirlpool Screw
5WP489467 Whirlpool Hinge Shim
6WP2213363 Whirlpool Refrigerator Cover
6WP2213360 Whirlpool Refrigerator Cover
7WP487576 Whirlpool Washer
8WP2264132 Whirlpool Refrigerator Unit Cover
9WPW10133299 Whirlpool Refrigerator Screw
10WP489442 Whirlpool Refrigerator Screw
112266506 Whirlpool Refrigerator Spacer
12WP2166037 Whirlpool Refrigerator Door Hinge
132166043 Whirlpool Refrigerator Shim
132215385 Whirlpool Refrigerator Shim
14WP2325482 Whirlpool Bottom Hinge
15WP2325483 Whirlpool Hinge Pin
16WP2201567 Whirlpool Hinge Shim
17WP2183998 Whirlpool Refrigerator Button Plug
17WP2151652 Whirlpool Refrigerator Button Plug
18W10859322 Whirlpool Refrigerator Filler
18W11500943 Whirlpool Refrigerator Filler
20CABINET (NOT A SERVICEABLE PART)
