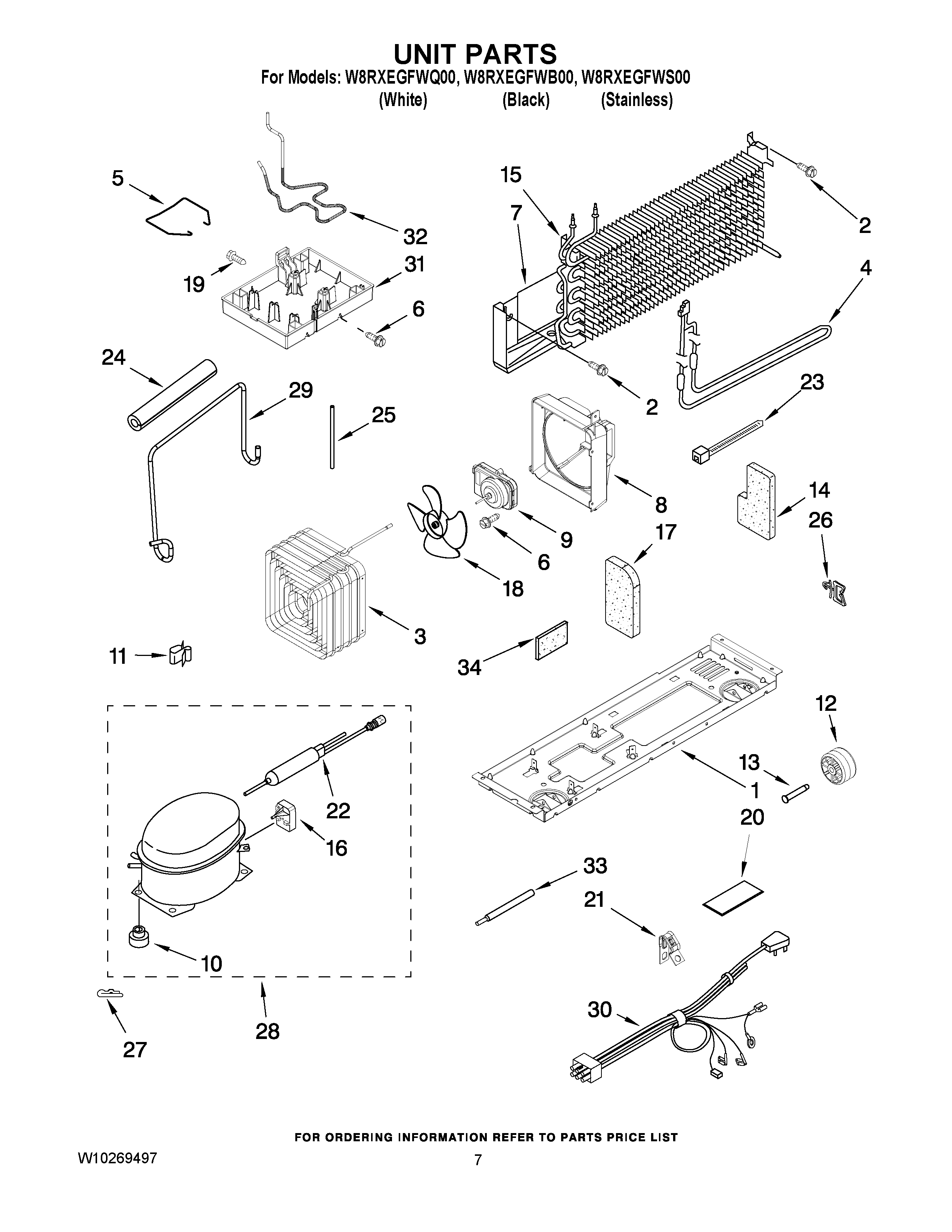

W8RXEGFWQ00 04 – UNIT PARTS

W8RXEGFWQ00 04 – UNIT PARTS

Written by

in

W8RXEGFWQ00 04 – UNIT PARTS

Products

Position	Product
NI	VALVE, ACCESS (5/8“)
NI	CABINET (NOT A SERVICEABLE PART)
NI	VALVE, ACCESS (1/2“)
NI	WP978025 Whirlpool Refrigerator Valve
NI	978030 Whirlpool Refrigerator Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	978026 Whirlpool Refrigerator Primary Valve
NI	876764 Whirlpool Refrigerator Primary Valve
1	WPW10222450 Whirlpool Refrigerator Support
2	WP489442 Whirlpool Refrigerator Screw
3	Condenser
4	WP2263749 Whirlpool Defrost Heater Assembly
5	2264835 Whirlpool Clip
6	WPW10171469 Whirlpool Refrigerator Screw
7	Heat Shield
8	WP2263929 Whirlpool Refrigerator Air Baffle
9	W11578915 Whirlpool Condenser Motor
10	WP4387558 Whirlpool Refrigerator Compressor Grommet
10	876811 Whirlpool Grommet
11	W10812038 Whirlpool Refrigerator Clip
12	WPW10475495 Whirlpool Roller Assembly
13	WP2264756 Whirlpool Refrigerator Rivet
14	8201619 Whirlpool Refrigerator Support Assembly
15	WP2263920 Whirlpool Refrigerator Evaporator
16	WPW10233421 Whirlpool Refrigerator Inverter Box
16	W10629033 Whirlpool Refrigerator Inverter Control Box
18	2264129 Whirlpool Refrigerator Fan Blade
19	WP489489 Whirlpool Screw
20	2266360 Whirlpool Shield Assembly
21	549193 Whirlpool Refrigerator Power Clamp
22	W10843121 Whirlpool Refrigerator Tube
23	WPW10339879 Whirlpool Wire Tie
24	2264838 Whirlpool Refrigerator Sleeve
25	2264278 Whirlpool Refrigerator Extension
26	CLIP, HARNESS
27	Clip, Compressor
28	COMPRESSOR (INCLUDES ITEM 14, 22, & 29)
29	W10209727 Whirlpool Refrigerator Extension Tube
30	WIRE ASSY. UNIT
31	WP2263928 Whirlpool Refrigerator Evaporator Tray
32	W10209728 Whirlpool Tube
33	W11661102 Whirlpool Tube
34	W11553819 Whirlpool Refrigerator Insulation
