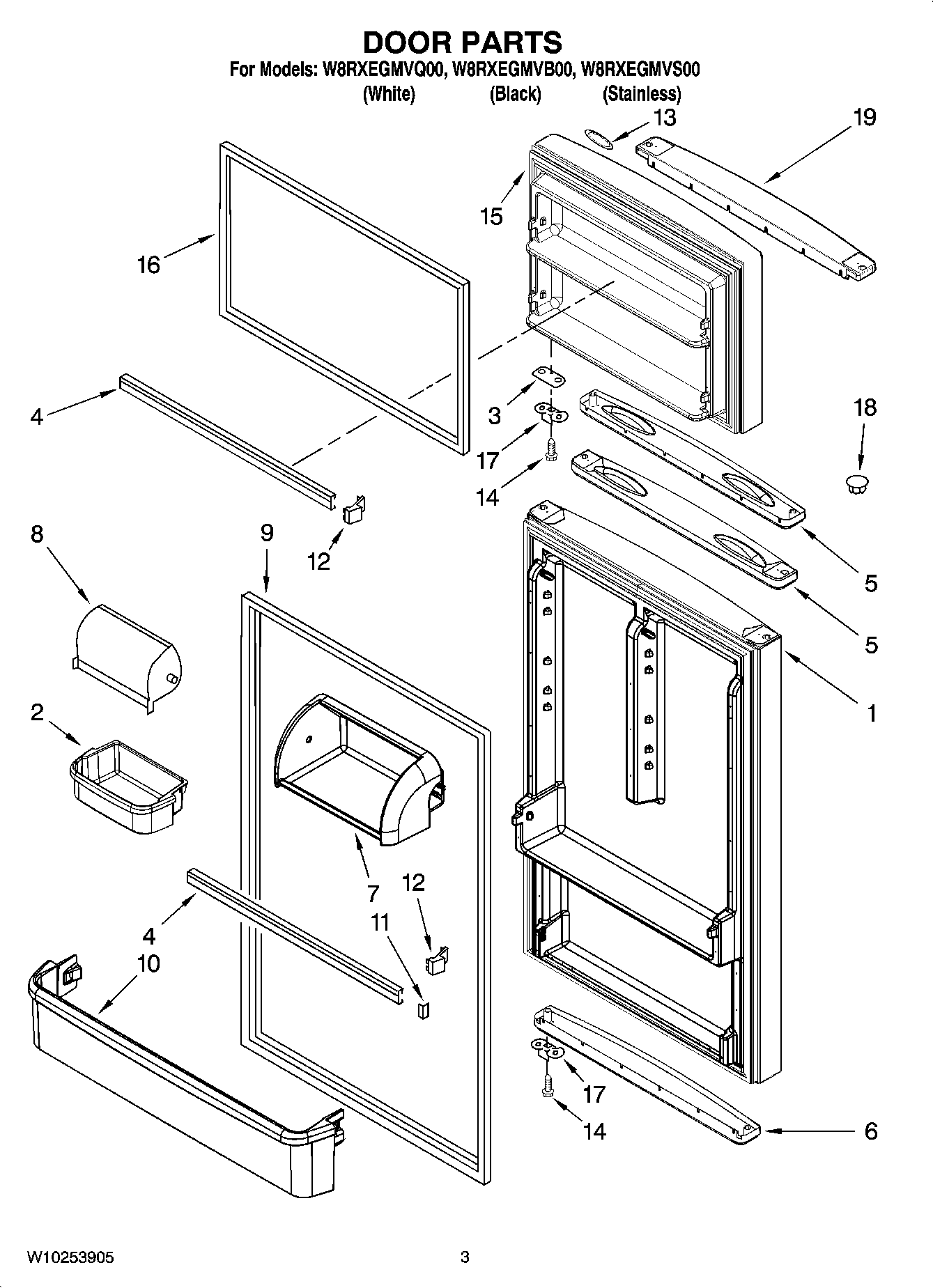

W8RXEGMVB00 02 – DOOR PARTS

Products

Position	Product
1	REFRIGERATOR DOOR (INCLUDES ILLUS. 9 & MOLDED DOOR HANDLE) (STAINLESS)
1	REFRIGERATOR DOOR (INCLUDES ILLUS. 9 & MOLDED DOOR HANDLE) (WHITE)
1	REFRIGERATOR DOOR (INCLUDES ILLUS. 9 & MOLDED DOOR HANDLE) (BLACK)
2	W11396038 Whirlpool Door Shelf Bin
3	2258681B Whirlpool Refrigerator Shim
3	WP2258681W Whirlpool Refrigerator Shim
4	WP2266727 Whirlpool Refrigerator Door Trim
5	Endcap, Handle (Refrigerator)
5	2265645W Whirlpool Refrigerator Handle
6	End Cap-Bottom
6	Endcap, Bottom (White)
7	2264477 Whirlpool Refrigerator Housing Assembly
8	Door, Compartment
9	WP2319264B Whirlpool Door Gasket
9	WP2319264W Whirlpool Refrigerator FIP Gasket
10	WPW10468559 Whirlpool Refrigerator Clear Door Shelf Trim
11	ENDCAP-TRM
12	WP2156003 Whirlpool Refrigerator Door Shelf End Cap
13	WP2213265 Whirlpool Refrigerator Nameplate
14	SCREW
15	FREEZER DOOR (INCLUDES ILLUS. 16 & MOLDED DOOR HANDLE) (BLACK)
15	FREEZER DOOR (INCLUDES ILLUS. 16 & MOLDED DOOR HANDLE) (WHITE)
15	FREEZER DOOR (INCLUDES ILLUS. 16 & MOLDED DOOR HANDLE) (STAINLESS)
16	WP2319263B Whirlpool Refrigerator Black Door Gasket
16	GASKET-FIP
17	W11745278 Whirlpool Bracket
18	WP2212651 Whirlpool Refrigerator Button Plug
18	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
19	2252863 Whirlpool Refrigerator Door Trim
19	2265644W Whirlpool Refrigerator Door Trim
