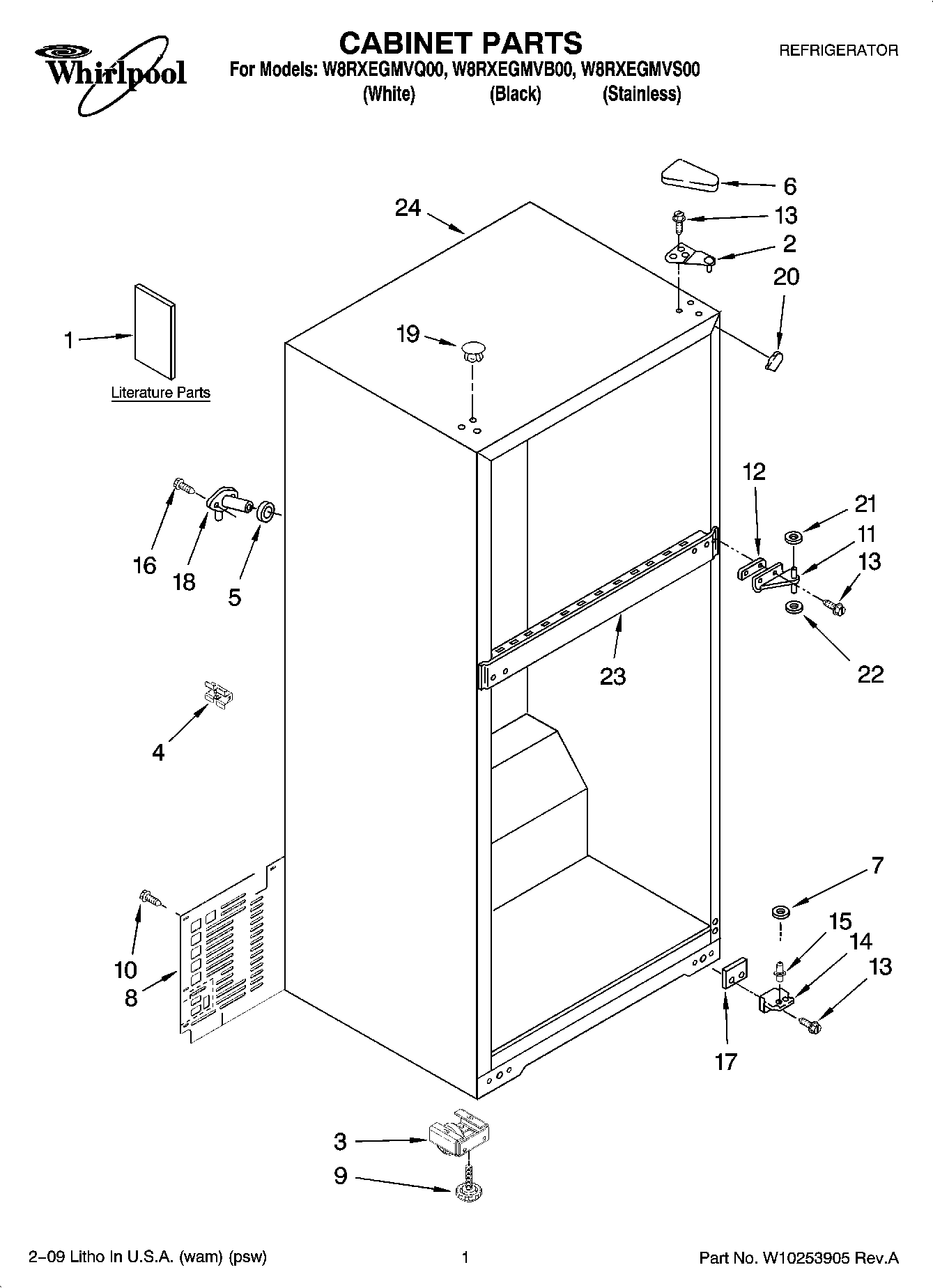

W8RXEGMVQ00 01 – CABINET PARTS

Products

Position	Product
1	DO-IT-YOURSELF MANUAL, REF./ FZR.
1	Modular Icemaker Service Sheet
1	Energy Guide
1	Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1	Service & Wiring Sheet
1	Use & Care Guide
2	WP2261963 Whirlpool Refrigerator Door Hinge
3	WPW10142530 Whirlpool Refrigerator Cabinet Roller
4	2266506 Whirlpool Refrigerator Spacer
5	WP1106508 Whirlpool Refrigerator Gasket
6	WP2213363 Whirlpool Refrigerator Cover
6	WP2213360 Whirlpool Refrigerator Cover
8	WP2264132 Whirlpool Refrigerator Unit Cover
9	WPW10133299 Whirlpool Refrigerator Screw
10	WP489442 Whirlpool Refrigerator Screw
11	WP2166037 Whirlpool Refrigerator Door Hinge
12	2215385 Whirlpool Refrigerator Shim
12	2166043 Whirlpool Refrigerator Shim
13	WP489497 Whirlpool Screw
14	WP2325482 Whirlpool Bottom Hinge
15	Hinge-Pin Bott.
16	WP488729 Whirlpool Refrigerator Door Screw
17	WP2201567 Whirlpool Hinge Shim
18	WP2196157 Whirlpool Fill Tube
19	WP2151652 Whirlpool Refrigerator Button Plug
19	WP2183998 Whirlpool Refrigerator Button Plug
20	W11500943 Whirlpool Refrigerator Filler
20	W10859322 Whirlpool Refrigerator Filler
21	WP489467 Whirlpool Hinge Shim
22	WP487576 Whirlpool Washer
23	Rail, Center (Not Serviced)
24	Cabinet, (Not A Serviceable Part)
