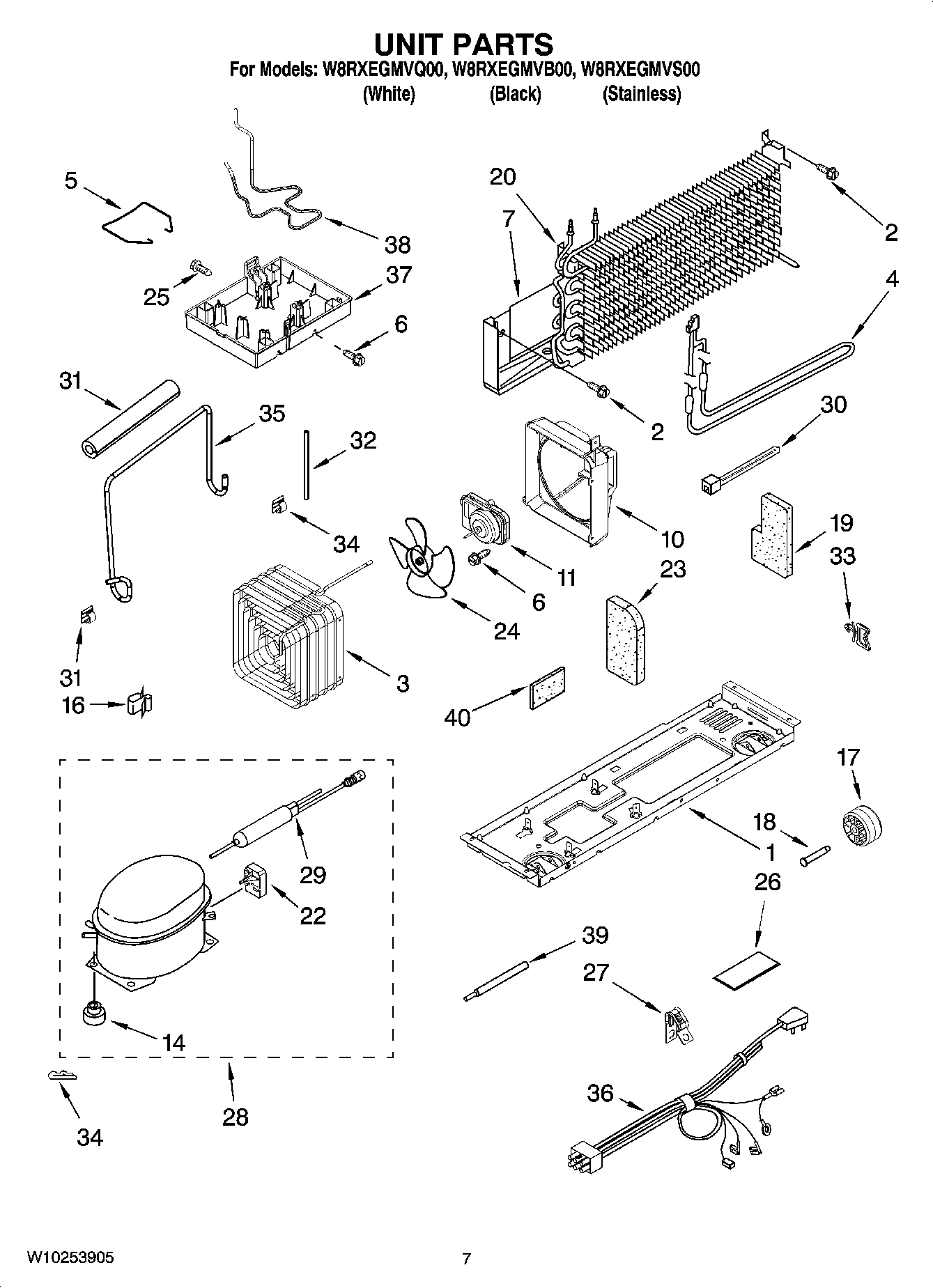

W8RXEGMVS00 04 – UNIT PARTSadmin2025-04-26T11:07:29+00:00W8RXEGMVS00 04 – UNIT PARTS ProductsPositionProductVALVE, ACCESS (5/8``)WP978025 Whirlpool Refrigerator Valve978030 Whirlpool Refrigerator Valve978027 Whirlpool Refrigerator Primary Valve978026 Whirlpool Refrigerator Primary Valve876764 Whirlpool Refrigerator Primary ValveREFRIGERANT CHARGE 3.75 Ozs. (R134A)Following Parts Not Illustrated and Optional Parts Not IncludedVALVE, ACCESS (1/2``)1WPW10222450 Whirlpool Refrigerator Support2WP489442 Whirlpool Refrigerator Screw3Condenser4WP2263749 Whirlpool Defrost Heater Assembly52264835 Whirlpool Clip6WPW10171469 Whirlpool Refrigerator Screw7Heat Shield10WP2263929 Whirlpool Refrigerator Air Baffle11W11578915 Whirlpool Condenser Motor14WP4387558 Whirlpool Refrigerator Compressor Grommet14876811 Whirlpool Grommet16W10812038 Whirlpool Refrigerator Clip17WPW10475495 Whirlpool Roller Assembly18WP2264756 Whirlpool Refrigerator Rivet198201619 Whirlpool Refrigerator Support Assembly20WP2263920 Whirlpool Refrigerator Evaporator22W10629033 Whirlpool Refrigerator Inverter Control Box22WPW10233421 Whirlpool Refrigerator Inverter Box242264129 Whirlpool Refrigerator Fan Blade25WP489489 Whirlpool Screw262266360 Whirlpool Shield Assembly27549193 Whirlpool Refrigerator Power Clamp28COMPRESSOR (INCLUDES ITEM 14, 22, & 29)29W10843121 Whirlpool Refrigerator Tube30WPW10339879 Whirlpool Wire Tie31W11501419 Whirlpool Refrigerator Clip312264838 Whirlpool Refrigerator Sleeve322264278 Whirlpool Refrigerator Extension33CLIP, HARNESS34Clip, Compressor35W10209727 Whirlpool Refrigerator Extension Tube36Wire Assy. Unit37WP2263928 Whirlpool Refrigerator Evaporator Tray38W10209728 Whirlpool Tube39W11661102 Whirlpool Tube40W11553819 Whirlpool Refrigerator Insulation
