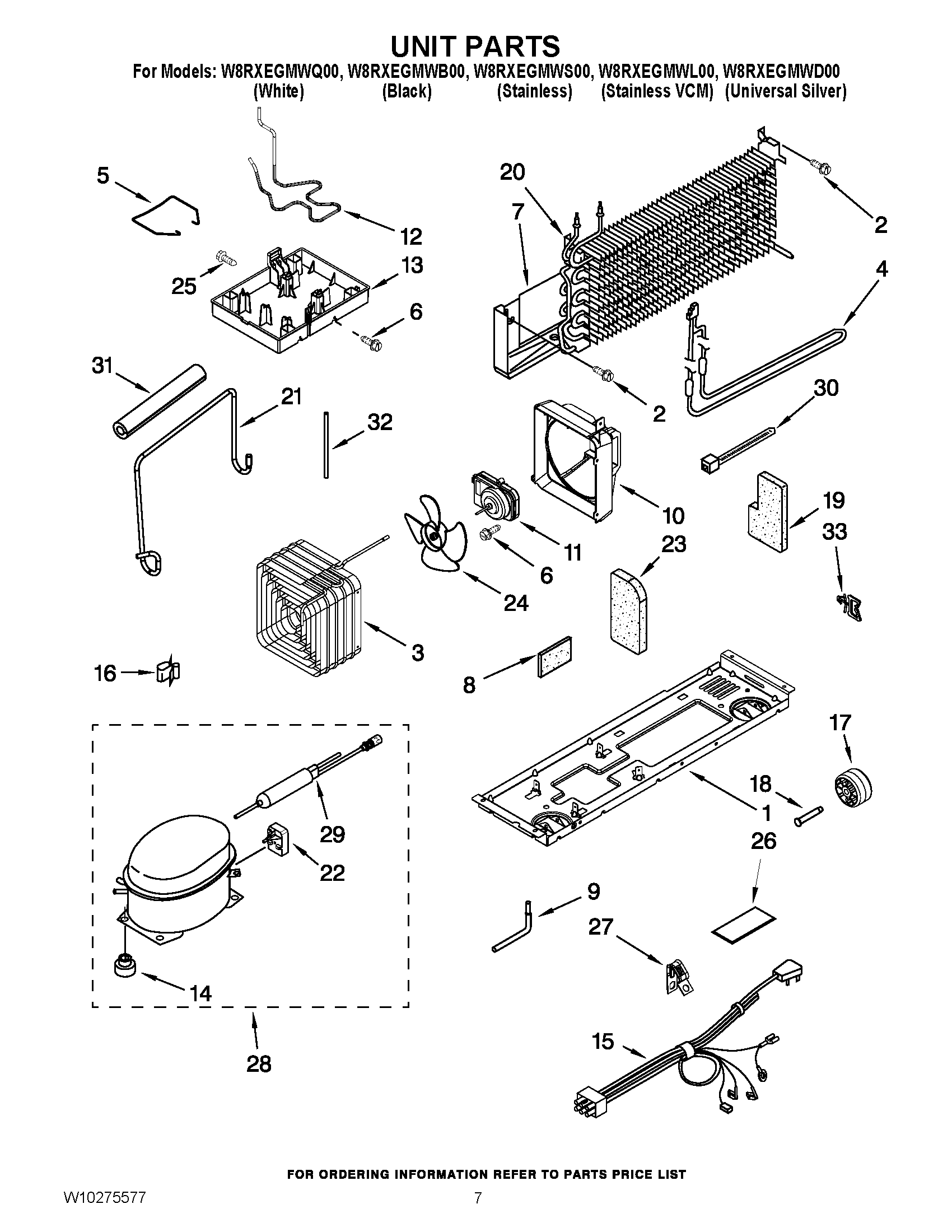

W8RXEGMWL00 04 – UNIT PARTS

Products

Position	Product
NI	VALVE, ACCESS (1/2“)
NI	CABINET (NOT A SERVICEABLE PART)
NI	WP978025 Whirlpool Refrigerator Valve
NI	978030 Whirlpool Refrigerator Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	978026 Whirlpool Refrigerator Primary Valve
NI	876764 Whirlpool Refrigerator Primary Valve
NI	VALVE, ACCESS (5/8“)
1	WPW10222450 Whirlpool Refrigerator Support
2	WP489442 Whirlpool Refrigerator Screw
3	Condenser
4	WP2263749 Whirlpool Defrost Heater Assembly
5	2264835 Whirlpool Clip
6	WPW10171469 Whirlpool Refrigerator Screw
7	Heat Shield
8	W11553819 Whirlpool Refrigerator Insulation
9	W11676464 Whirlpool Tube
10	W10358308 Whirlpool Refrigerator Air Baffle
11	W11578915 Whirlpool Condenser Motor
12	W10209728 Whirlpool Tube
13	WP2263928 Whirlpool Refrigerator Evaporator Tray
14	876811 Whirlpool Grommet
15	WIRE ASSY. UNIT
16	W10812038 Whirlpool Refrigerator Clip
17	WPW10475495 Whirlpool Roller Assembly
18	WP2264756 Whirlpool Refrigerator Rivet
19	8201619 Whirlpool Refrigerator Support Assembly
20	WP2263920 Whirlpool Refrigerator Evaporator
21	W10209727 Whirlpool Refrigerator Extension Tube
22	WPW10233421 Whirlpool Refrigerator Inverter Box
24	2264129 Whirlpool Refrigerator Fan Blade
25	WP489489 Whirlpool Screw
26	2266360 Whirlpool Shield Assembly
27	549193 Whirlpool Refrigerator Power Clamp
28	COMPRESSOR (INCLUDES ITEM 14, 22, & 29)
29	WPW10143759 Whirlpool Dryer Filter
29	W10843121 Whirlpool Refrigerator Tube
30	WPW10339879 Whirlpool Wire Tie
31	2264838 Whirlpool Refrigerator Sleeve
32	2264278 Whirlpool Refrigerator Extension
33	CLIP, HARNESS
