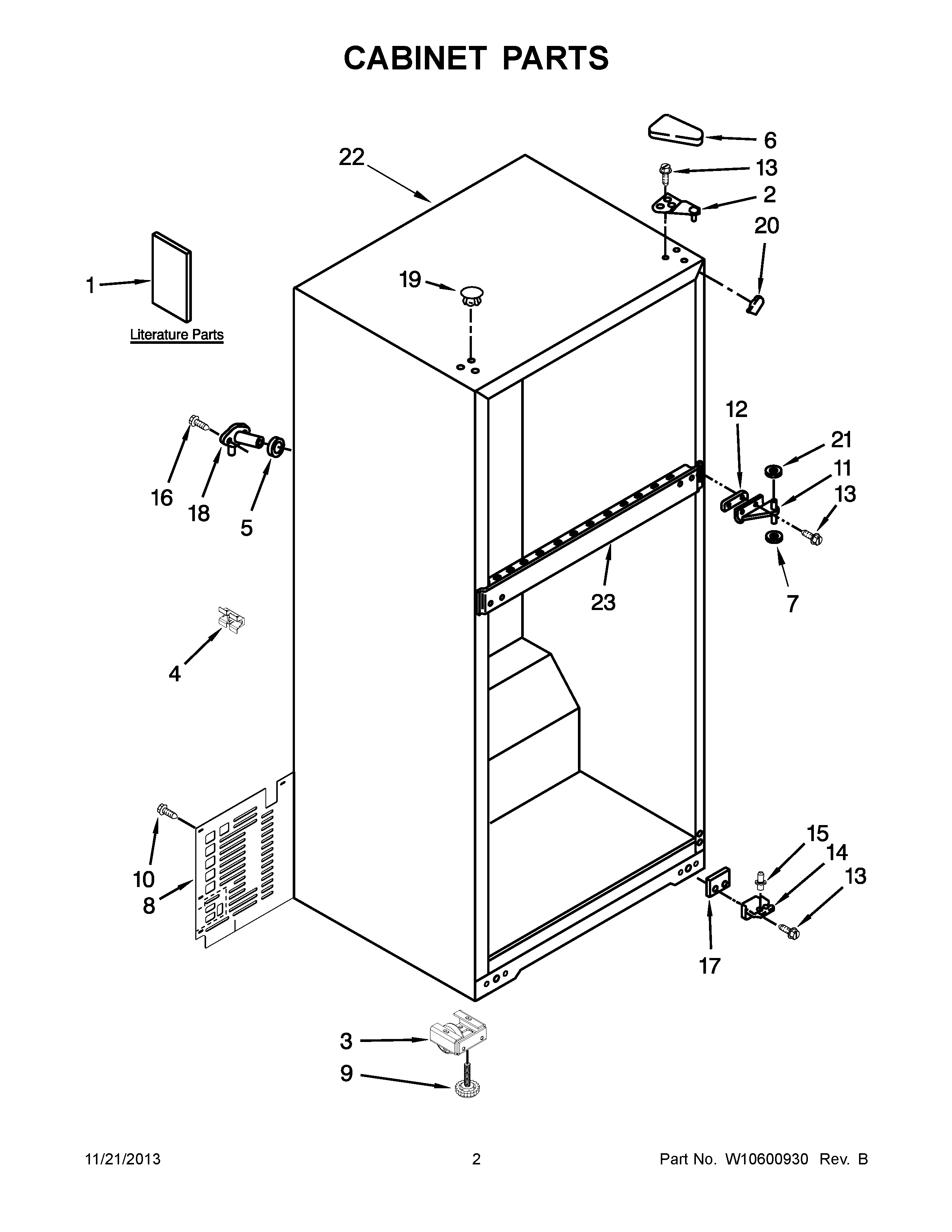

W8RXEGMWQ02 02 – CABINET PARTS

Products

Position	Product
1	SERVICE & WIRING SHEET
1	Modular Icemaker Service Sheet
1	SERVICE SHEET (ENERGY GUIDE)
1	Use & Care Guide
1	DO-IT-YOURSELF MANUAL, REF./ FZR.
2	WP2261963 Whirlpool Refrigerator Door Hinge
3	WPW10142530 Whirlpool Refrigerator Cabinet Roller
4	2266506 Whirlpool Refrigerator Spacer
5	WP1106508 Whirlpool Refrigerator Gasket
6	WP2213360 Whirlpool Refrigerator Cover
6	WP2213363 Whirlpool Refrigerator Cover
7	WP487576 Whirlpool Washer
8	WP2264132 Whirlpool Refrigerator Unit Cover
9	WPW10133299 Whirlpool Refrigerator Screw
10	WP489442 Whirlpool Refrigerator Screw
11	WP2166037 Whirlpool Refrigerator Door Hinge
12	2166043 Whirlpool Refrigerator Shim
12	2215385 Whirlpool Refrigerator Shim
13	WP489497 Whirlpool Screw
14	WP2325482 Whirlpool Bottom Hinge
15	WP2325483 Whirlpool Hinge Pin
16	WP488729 Whirlpool Refrigerator Door Screw
17	WP2201567 Whirlpool Hinge Shim
18	WPW10601149 Whirlpool Refrigerator Fitting
19	WPW10520304 Whirlpool Refrigerator Button Plug
19	WPW10520305 Whirlpool Refrigerator Button Plug
20	W11500943 Whirlpool Refrigerator Filler
20	W10859322 Whirlpool Refrigerator Filler
21	WP489467 Whirlpool Hinge Shim
23	CABINET (NOT A SERVICEABLE PART)
