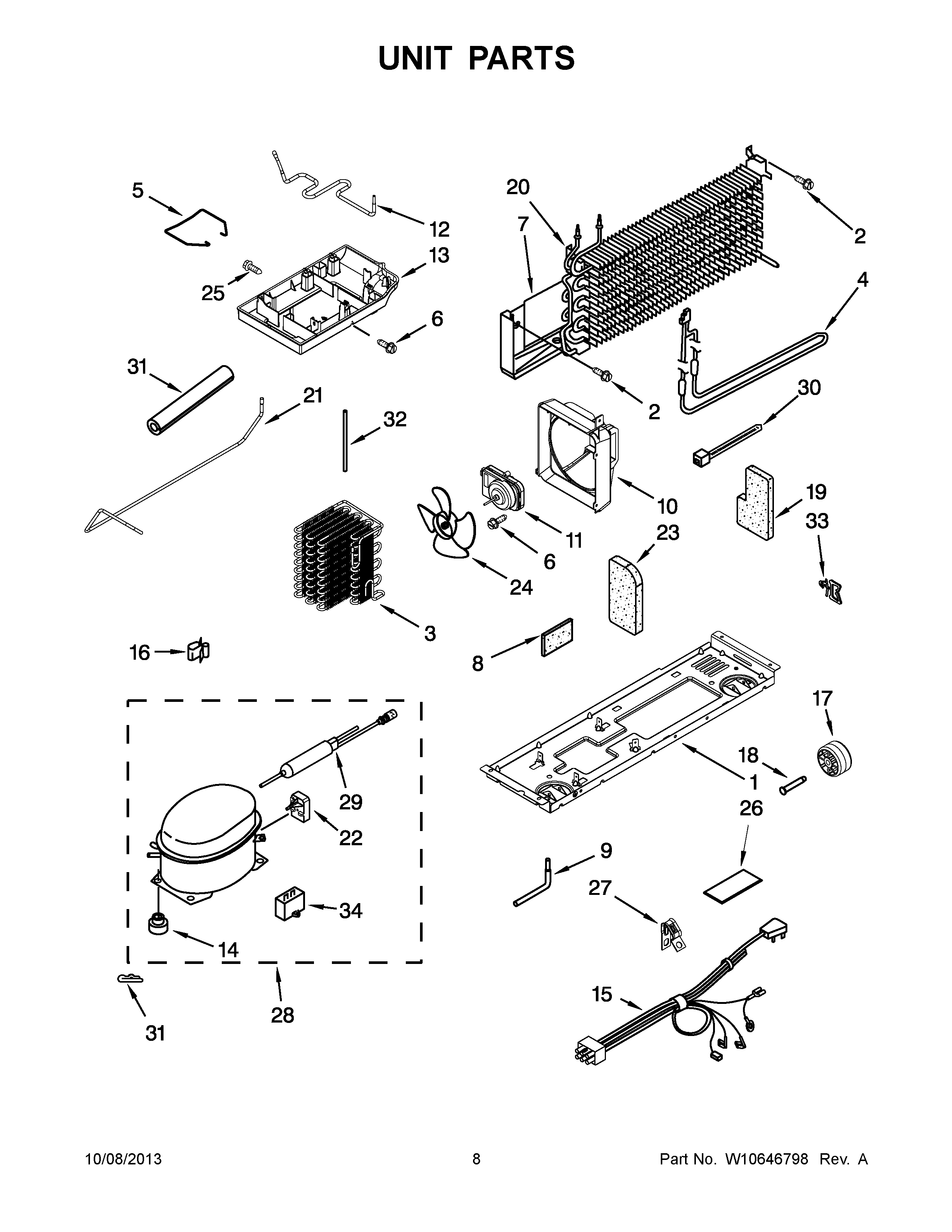

W8RXEGMWQ03 05 – UNIT PARTS

Products

Position	Product
NI	VALVE, ACCESS (5/8“)
NI	CABINET (NOT A SERVICEABLE PART)
NI	VALVE, ACCESS (1/2“)
NI	WP978025 Whirlpool Refrigerator Valve
NI	978030 Whirlpool Refrigerator Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	978026 Whirlpool Refrigerator Primary Valve
NI	876764 Whirlpool Refrigerator Primary Valve
1	W10573847 Whirlpool Refrigerator Support
2	WP489442 Whirlpool Refrigerator Screw
3	CONDENSER
4	WP2263749 Whirlpool Defrost Heater Assembly
5	2264835 Whirlpool Clip
6	WPW10171469 Whirlpool Refrigerator Screw
7	Heat Shield
8	W11553819 Whirlpool Refrigerator Insulation
9	W11661102 Whirlpool Tube
10	WPW10570380 Whirlpool Refrigerator Air Baffle
11	WP2188874 Whirlpool Refrigerator Condenser Motor
12	W10585740 Whirlpool Refrigerator Tube
13	W10565417 Whirlpool Refrigerator Evaporator Tray
14	WPW10169124 Whirlpool Refrigerator Grommet
15	W10839396 Whirlpool Refrigerator Wire Harness
16	W10812038 Whirlpool Refrigerator Clip
17	WPW10475495 Whirlpool Roller Assembly
18	WP2264756 Whirlpool Refrigerator Rivet
19	8201619 Whirlpool Refrigerator Support Assembly
20	WP2263920 Whirlpool Refrigerator Evaporator
21	W10667538 Whirlpool Tube
22	W10805623 Whirlpool Refrigerator Start Device
24	2264129 Whirlpool Refrigerator Fan Blade
25	WP489489 Whirlpool Screw
26	2266360 Whirlpool Shield Assembly
27	549193 Whirlpool Refrigerator Power Clamp
28	WPW10463858 Whirlpool Refrigerator Compressor
29	W10843121 Whirlpool Refrigerator Tube
30	WPW10339879 Whirlpool Wire Tie
31	2264838 Whirlpool Refrigerator Sleeve
32	W10582029 Whirlpool Refrigerator Extension
33	CLIP, HARNESS
34	WPW10662129 Whirlpool Refrigerator Run Capacitor
