W8RXEGMWS02 04 – DOOR PARTS

W8RXEGMWS02 04 – DOOR PARTS

Written by

in

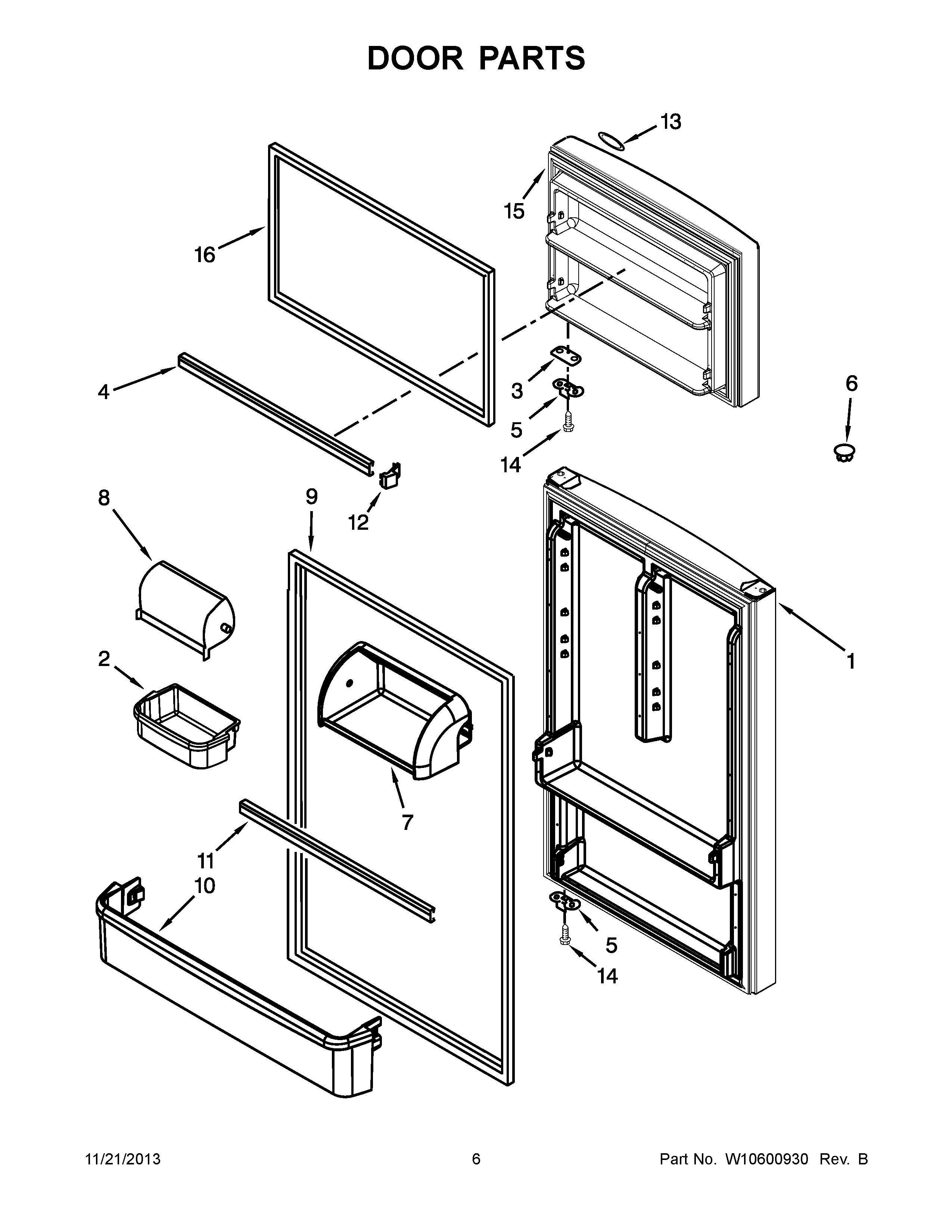

W8RXEGMWS02 04 – DOOR PARTS

Products

PositionProduct
1REFRIGERATOR DOOR (INCLUDES ILLUS. 9 & MOLDED DOOR HANDLE) (STAINLESS)
1REFRIGERATOR DOOR (INCLUDES ILLUS. 9 & MOLDED DOOR HANDLE) (WHITE)
1REFRIGERATOR DOOR (INCLUDES ILLUS. 9 & MOLDED DOOR HANDLE) (BLACK)
2W11396038 Whirlpool Door Shelf Bin
32258681B Whirlpool Refrigerator Shim
3WP2258681W Whirlpool Refrigerator Shim
4WP2266727 Whirlpool Refrigerator Door Trim
5W11745278 Whirlpool Bracket
6WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
6WP2212651 Whirlpool Refrigerator Button Plug
72264477 Whirlpool Refrigerator Housing Assembly
8Door, Compartment
9WP2319264B Whirlpool Door Gasket
9WP2319264W Whirlpool Refrigerator FIP Gasket
10WPW10468559 Whirlpool Refrigerator Clear Door Shelf Trim
11WPW10234241 Whirlpool Door Shelf Trim
12WP2156003 Whirlpool Refrigerator Door Shelf End Cap
13W11178521 Whirlpool Dishwasher Nameplate
14SCREW
15FREEZER DOOR (INCLUDES ILLUS. 16 & MOLDED DOOR HANDLE) (BLACK)
15FREEZER DOOR (INCLUDES ILLUS. 16 & MOLDED DOOR HANDLE) (WHITE)
15FREEZER DOOR (INCLUDES ILLUS. 16 & MOLDED DOOR HANDLE) (STAINLESS)
16GASKET-FIP
16WP2319263B Whirlpool Refrigerator Black Door Gasket
