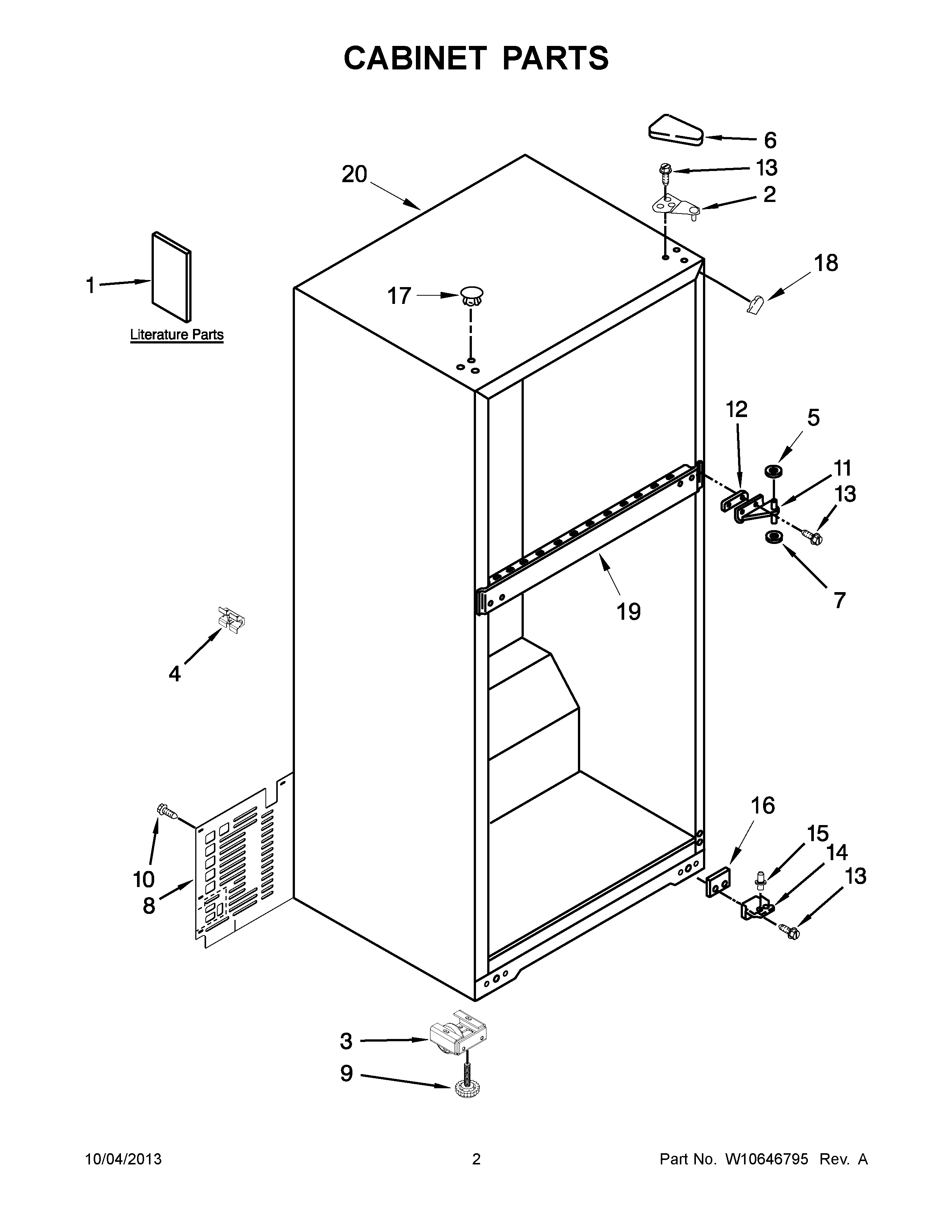

W8RXNGFBD00 02 – CABINET PARTS

W8RXNGFBD00 02 – CABINET PARTS

Written by

in

W8RXNGFBD00 02 – CABINET PARTS

Products

PositionProduct
1ENERGY GUIDE
1Use & Care Guide
1DO-IT-YOURSELF MANUAL, REF./ FZR.
1SERVICE & WIRING SHEET
2WP2261963 Whirlpool Refrigerator Door Hinge
3WPW10142530 Whirlpool Refrigerator Cabinet Roller
42266506 Whirlpool Refrigerator Spacer
5WP487802 Whirlpool Refrigerator Washer
6WP2213363 Whirlpool Refrigerator Cover
7WP487576 Whirlpool Washer
8W10570558 Whirlpool Refrigerator Cover Assembly
9WPW10133299 Whirlpool Refrigerator Screw
10WP489442 Whirlpool Refrigerator Screw
11WP2166037 Whirlpool Refrigerator Door Hinge
122215385 Whirlpool Refrigerator Shim
13WP489497 Whirlpool Screw
14WP2325482 Whirlpool Bottom Hinge
15WP2325483 Whirlpool Hinge Pin
16WP2201567 Whirlpool Hinge Shim
17WPW10520305 Whirlpool Refrigerator Button Plug
18W11500943 Whirlpool Refrigerator Filler
20CABINET (NOT A SERVICEABLE PART)
