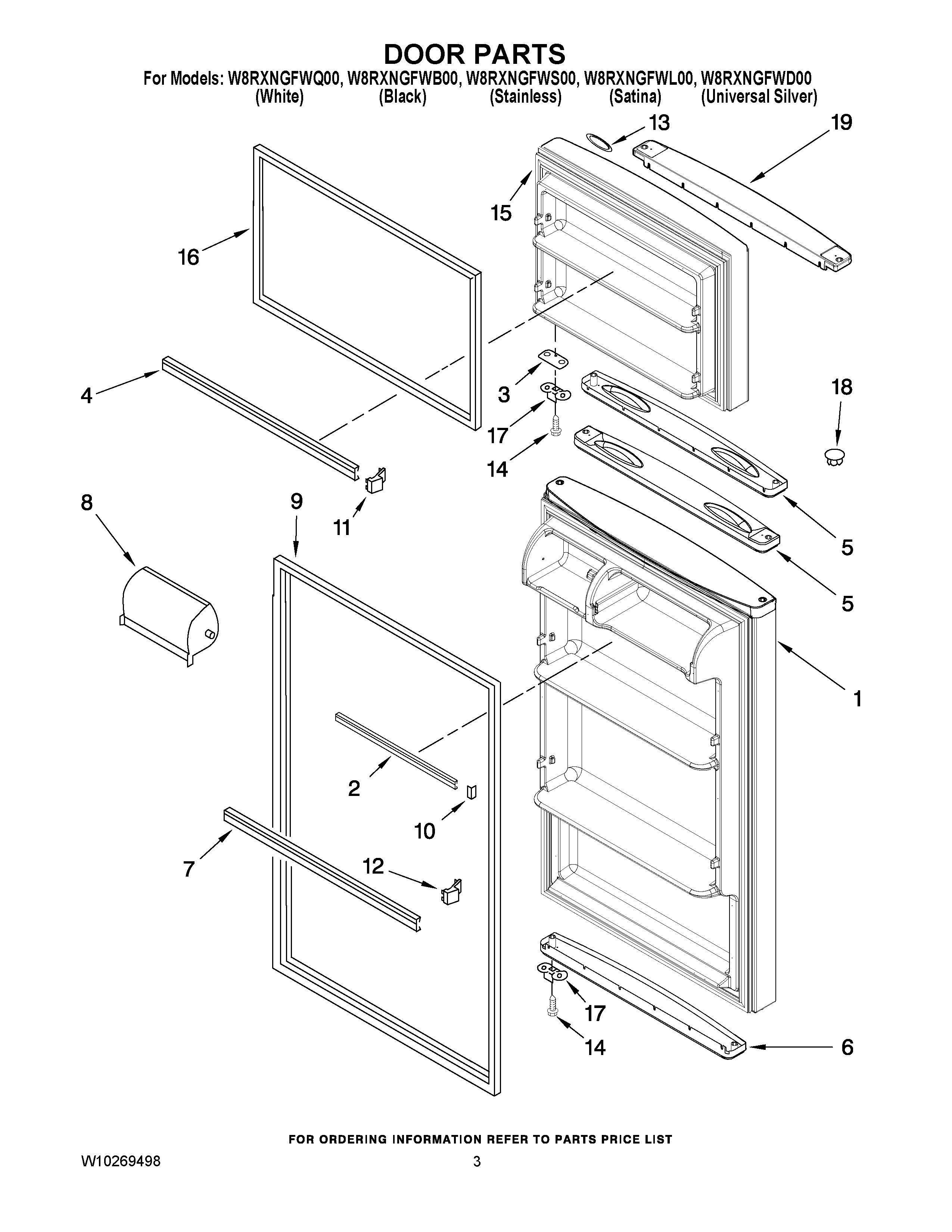

W8RXNGFWD00 02 – DOOR PARTS

Products

Position	Product
1	2265677D Whirlpool FIP Door Us
1	REFRIGERATOR DOOR (INCLUDES ILLUS. 9) (STAINLESS)
1	REFRIGERATOR DOOR (INCLUDES ILLUS. 9) (SATINA)
1	REFRIGERATOR DOOR (INCLUDES ILLUS. 9) (BLACK)
1	REFRIGERATOR DOOR (INCLUDES ILLUS. 9) (WHITE)
2	W11129820 Whirlpool Refrigerator Door Trim
3	2258681B Whirlpool Refrigerator Shim
3	WP2258681W Whirlpool Refrigerator Shim
4	WP2266727 Whirlpool Refrigerator Door Trim
5	2265645W Whirlpool Refrigerator Handle
5	2265645D Whirlpool Handle
5	Endcap, Handle (Refrigerator)
6	End Cap-Bottom
6	Endcap, Bottom (White)
6	ENDCAP, BOTTOM (UNIVERSAL SILVER)
7	WP2266738 Whirlpool Refrigerator Door Trim
8	DOOR-COMP
9	WP2319264B Whirlpool Door Gasket
9	WP2319264T Whirlpool Door Gasket
9	WP2319264W Whirlpool Refrigerator FIP Gasket
10	ENDCAP-TRM
12	WP2156003 Whirlpool Refrigerator Door Shelf End Cap
13	WP2213265 Whirlpool Refrigerator Nameplate
14	SCREW
15	FREEZER DOOR (INCLUDES ILLUS. 16) (UNIVERSAL SILVER)
15	FREEZER DOOR (INCLUDES ITEM 14 & MOLDED DOOR HANDLE) (STAINLESS STEEL)
15	FREEZER DOOR (INCLUDES ITEM 14 & MOLDED DOOR HANDLE) (BLACK)
15	FREEZER DOOR (INCLUDES ITEM 14 & MOLDED DOOR HANDLE) (WHITE)
15	FREEZER DOOR (INCLUDES ILLUS. 16) (SATINA)
16	WP2319263T Whirlpool Refrigerator FIP Gasket
16	GASKET-FIP
16	WP2319263B Whirlpool Refrigerator Black Door Gasket
17	W11745278 Whirlpool Bracket
18	WP2212651 Whirlpool Refrigerator Button Plug
18	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
19	WPL 2265644D
19	2252863 Whirlpool Refrigerator Door Trim
19	2265644W Whirlpool Refrigerator Door Trim
