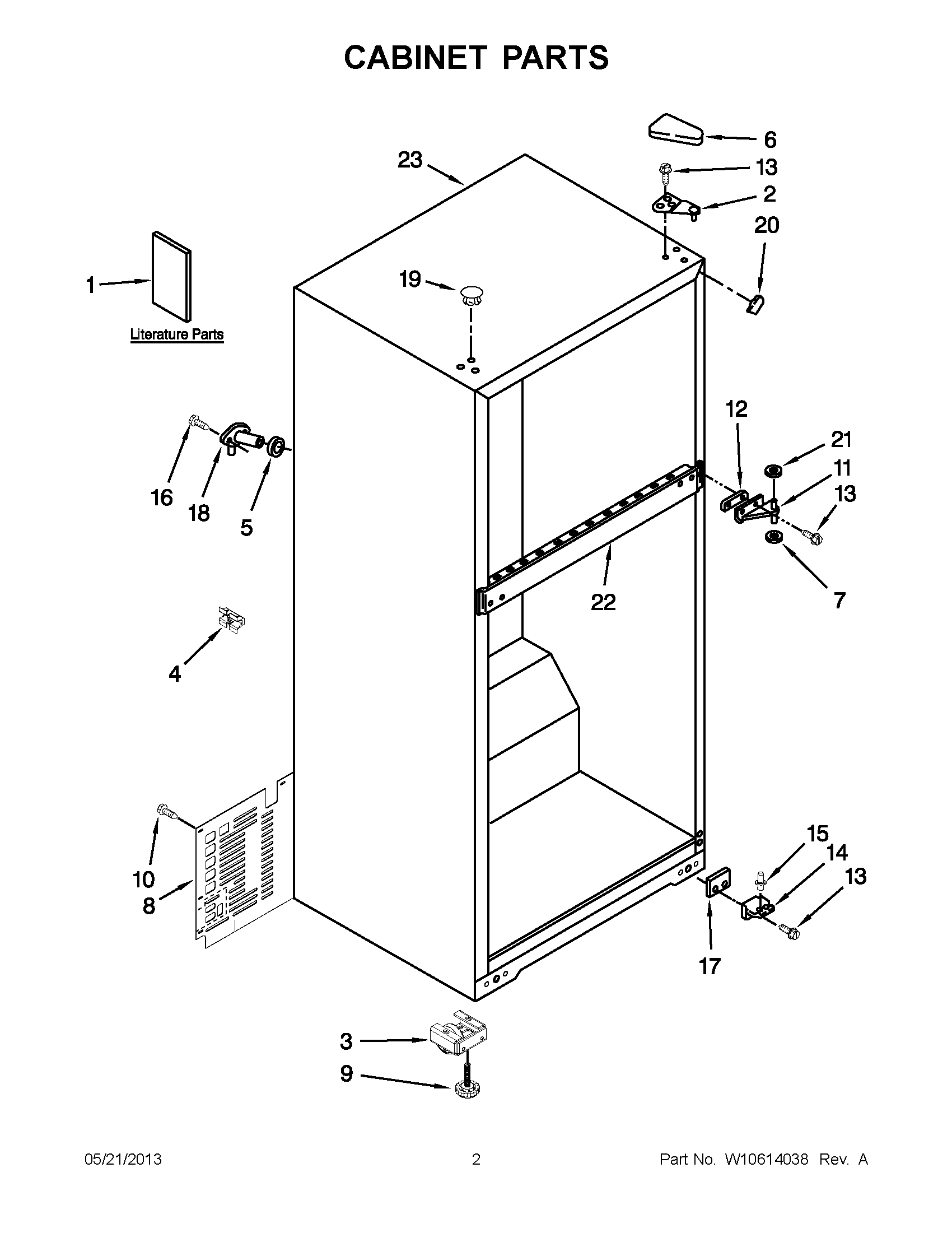

W8RXNGMBB00 01 – CABINET PARTS

Products

PositionProduct
1ENERGY GUIDE
1Modular Icemaker Service Sheet
1SERVICE & WIRING SHEET
1Use & Care Guide
1DO-IT-YOURSELF MANUAL, REF./ FZR.
2WP2261963 Whirlpool Refrigerator Door Hinge
3WPW10142530 Whirlpool Refrigerator Cabinet Roller
42266506 Whirlpool Refrigerator Spacer
5WP1106508 Whirlpool Refrigerator Gasket
6WP2213360 Whirlpool Refrigerator Cover
6WP2213363 Whirlpool Refrigerator Cover
7WP487576 Whirlpool Washer
8WP2264132 Whirlpool Refrigerator Unit Cover
9WPW10133299 Whirlpool Refrigerator Screw
10WP489442 Whirlpool Refrigerator Screw
11WP2166037 Whirlpool Refrigerator Door Hinge
122166043 Whirlpool Refrigerator Shim
122215385 Whirlpool Refrigerator Shim
13WP489497 Whirlpool Screw
14WP2325482 Whirlpool Bottom Hinge
15WP2325483 Whirlpool Hinge Pin
16WP488729 Whirlpool Refrigerator Door Screw
17WP2201567 Whirlpool Hinge Shim
18W11292468 Whirlpool Refrigerator Fitting
19WPW10520304 Whirlpool Refrigerator Button Plug
19WPW10520305 Whirlpool Refrigerator Button Plug
20W11500943 Whirlpool Refrigerator Filler
20W10859322 Whirlpool Refrigerator Filler
21WP489467 Whirlpool Hinge Shim
23CABINET (NOT A SERVICEABLE PART)
