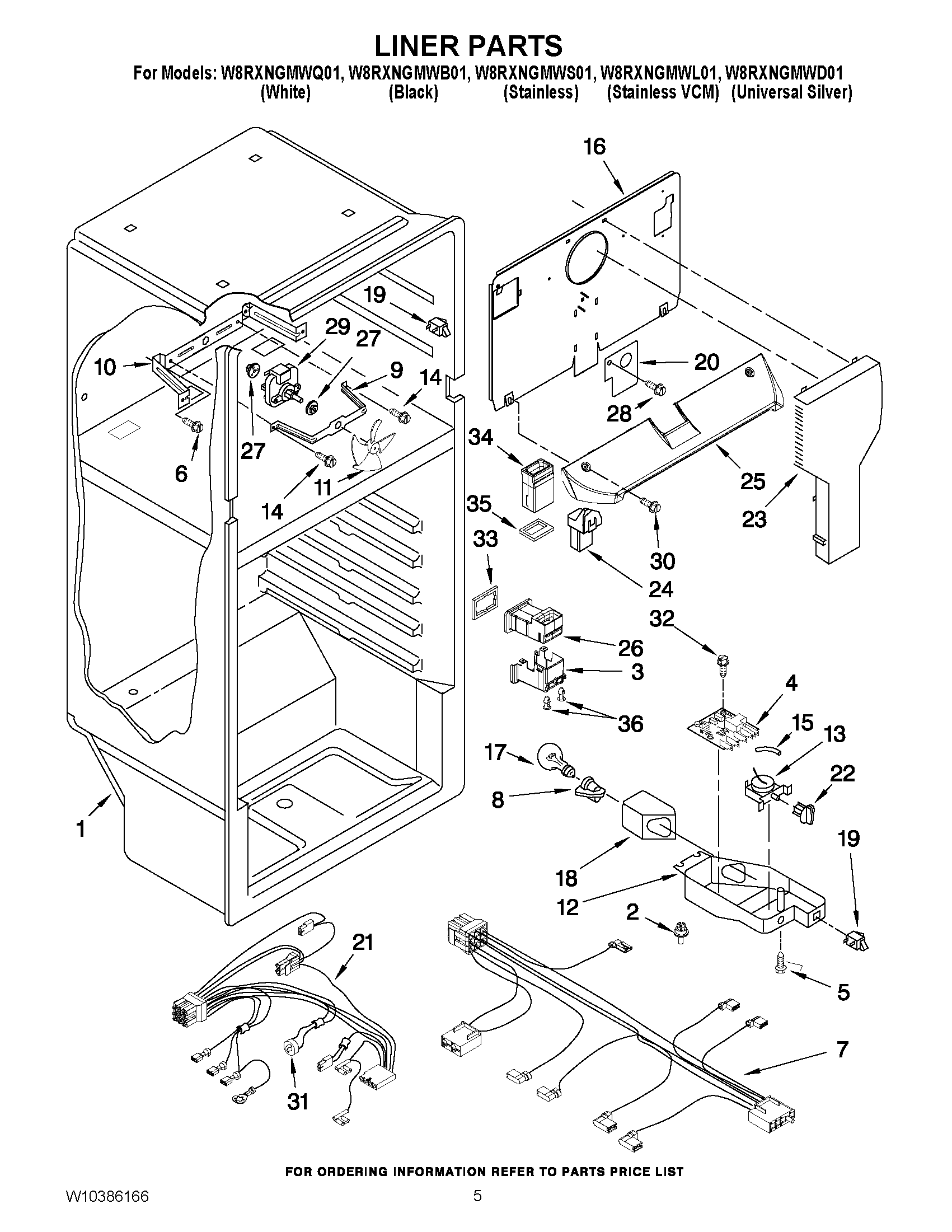

W8RXNGMWB01 03 – LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2939962 Whirlpool Refrigerator Rivet
32252837 Whirlpool Refrigerator Cover
44388931 Whirlpool Defrost Timer
5WP489174 Whirlpool Refrigerator Screw
6WP489442 Whirlpool Refrigerator Screw
72265930 Whirlpool Refrigerator Wire Harness
84387478 Whirlpool Refrigerator Light Socket
9WPW10180172 Whirlpool Refrigerator Bracket
10Fan Mounting Bracket
11WP2169142 Whirlpool Fan Blade
122263083 Whirlpool Refrigerator Control Box
13WPW10511937 Whirlpool Thermostat Control
14WP489399 Whirlpool Refrigerator Screw
15WP2196003 Whirlpool Refrigerator Bar Riser
16COVER, EVAPORATOR
17RANGE ONLY 40W 120V APPL BULB
18W11034434 Whirlpool Refrigerator Light Lens
19W11384469 Whirlpool Door Switch
20WP2217784 Whirlpool Refrigerator Cover
21W10290502 Whirlpool Refrigerator Wire Harness
22WP2202885 Whirlpool Refrigerator Thermal Knob
239790408 Whirlpool Refrigerator Air Tower
24Hood And Foil Assembly
25Cover, Air Return
26WPW10355265 Whirlpool Refrigerator Diffuser
27WP2264462 Whirlpool Refrigerator Grommet
28WP489478 Whirlpool Refrigerator Screw
29WPW10188389 Whirlpool Evaporator Fan Motor
30WP489474 Whirlpool Refrigerator Screw
31WPW10225581 Whirlpool Refrigerator Defrost Thermostat
32WP487353 Whirlpool Refrigerator Screw
33GASKET, BODY AIR DIFFUSER
342252831 Whirlpool Refrigerator Air Duct
352263075 Whirlpool Refrigerator Gasket
36Rivet
