W8RXNGMWB02 02 – DOOR PARTS

W8RXNGMWB02 02 – DOOR PARTS

Written by

in

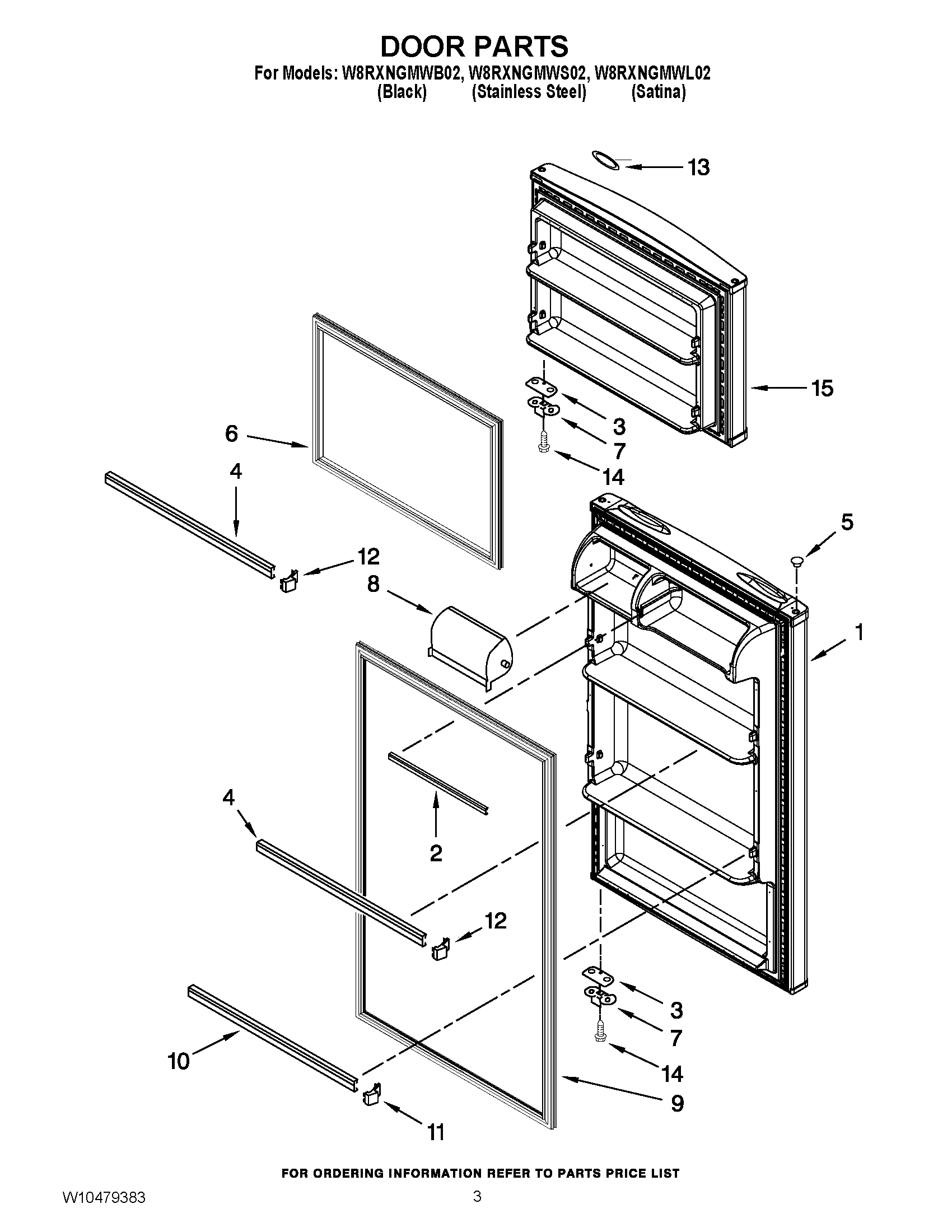

W8RXNGMWB02 02 – DOOR PARTS

Products

PositionProduct
1REFRIGERATOR DOOR (INCLUDES ILLUS. 9) (STAINLESS)
1REFRIGERATOR DOOR (INCLUDES ILLUS. 9) (SATINA)
1REFRIGERATOR DOOR (INCLUDES ILLUS. 9) (BLACK)
2W11129820 Whirlpool Refrigerator Door Trim
32258681B Whirlpool Refrigerator Shim
4WP2266727 Whirlpool Refrigerator Door Trim
5WP2212651 Whirlpool Refrigerator Button Plug
6WP2319263B Whirlpool Refrigerator Black Door Gasket
7W11745278 Whirlpool Bracket
8DOOR-COMP
9WP2319264B Whirlpool Door Gasket
10WP2266738 Whirlpool Refrigerator Door Trim
11ENDCAP
12WP2156003 Whirlpool Refrigerator Door Shelf End Cap
13WP2213265 Whirlpool Refrigerator Nameplate
14SCREW
15FREEZER DOOR (INCLUDES ITEM 14 & MOLDED DOOR HANDLE) (BLACK)
15FREEZER DOOR (INCLUDES ITEM 14 & MOLDED DOOR HANDLE) (STAINLESS STEEL)
15FREEZER DOOR (INCLUDES ILLUS. 16) (SATINA)
