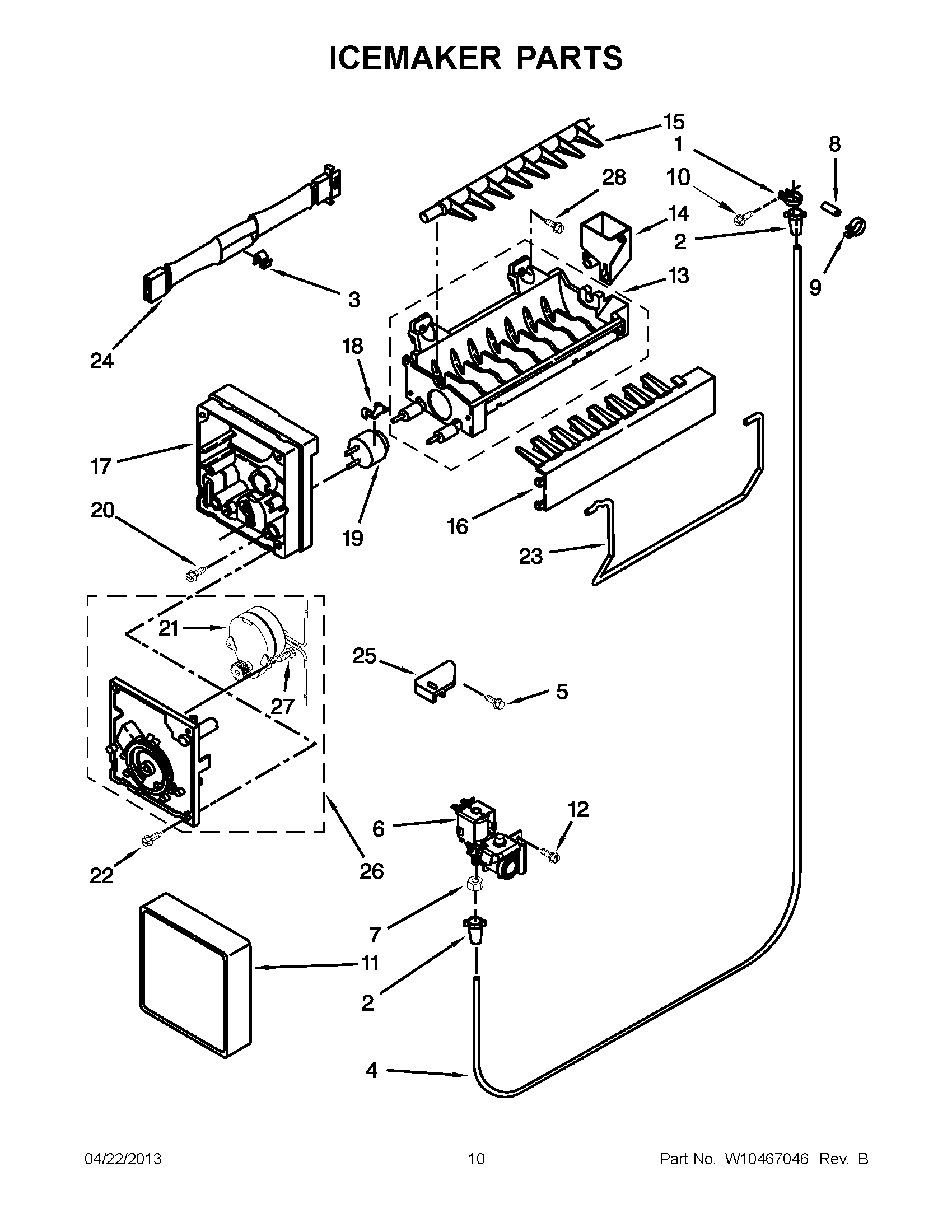

W8RXNGMWB03 05 – ICEMAKER PARTS

W8RXNGMWB03 05 – ICEMAKER PARTS

Written by

in

W8RXNGMWB03 05 – ICEMAKER PARTS

Products

PositionProduct
1WP488878 Whirlpool Refrigerator Tube Clamp
24387491 Whirlpool Refrigerator Insert
3WP628379 Whirlpool Refrigerator Clip
4W10823511 Whirlpool Refrigerator Water Tube
5WP489478 Whirlpool Refrigerator Screw
6VALVE-INLT
7WP627018 Whirlpool Refrigerator Nut
8Tube, Water Inlet
9W11501419 Whirlpool Refrigerator Clip
10WP488787 Whirlpool Refrigerator Screw
11WPW10289690 Whirlpool Ice Maker Cover
12WP489442 Whirlpool Refrigerator Screw
13WPW10190929 Whirlpool Refrigerator Ice Maker Mold
14W11676540 Whirlpool Refrigerator Cup Fill
15WP627843 Whirlpool Refrigerator Ejector Arm
16WPW10122563 Whirlpool Refrigerator Stripper Arm
17WP2195914 Whirlpool Refrigerator Ice Maker Housing
18WP2315522 Whirlpool Refrigerator Clip
19WP627985 Whirlpool Icemaker Cycling Thermostat
20W10001280 Whirlpool Refrigerator Screw
21W10122551 Whirlpool Refrigerator Motor Model
22WP681249 Whirlpool Screw Assembly
23WP627792 Whirlpool Refrigerator Shut Off Arm
24W10309399 Whirlpool Refrigerator Wire Harness
25W11500948 Whirlpool Refrigerator Bracket
268201515 Whirlpool Refrigerator Motor and Gear Module Kit
27489136 Whirlpool Refrigerator Screw
28WP488163 Whirlpool Refrigerator Screw
1004317943 Whirlpool Refrigerator Ice Maker Assembly
